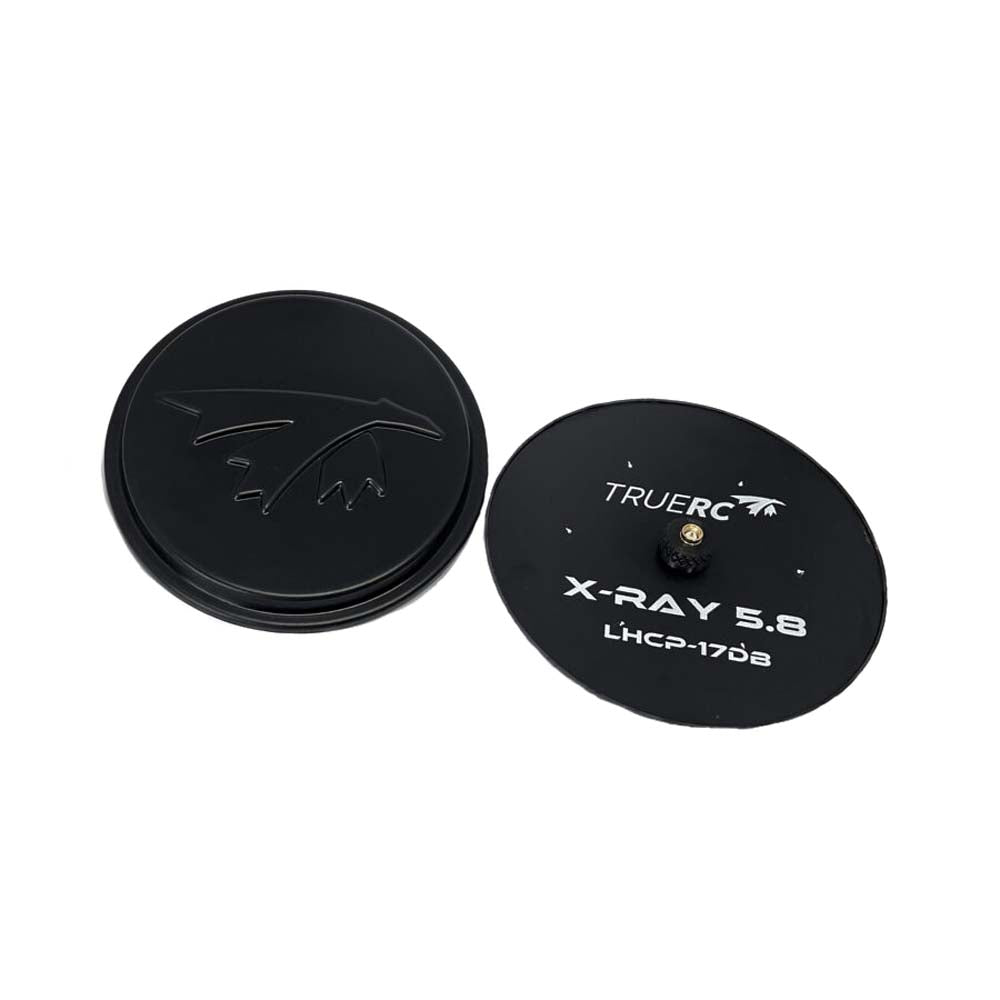

TrueRC X-RAY 5.8GHz Antenna

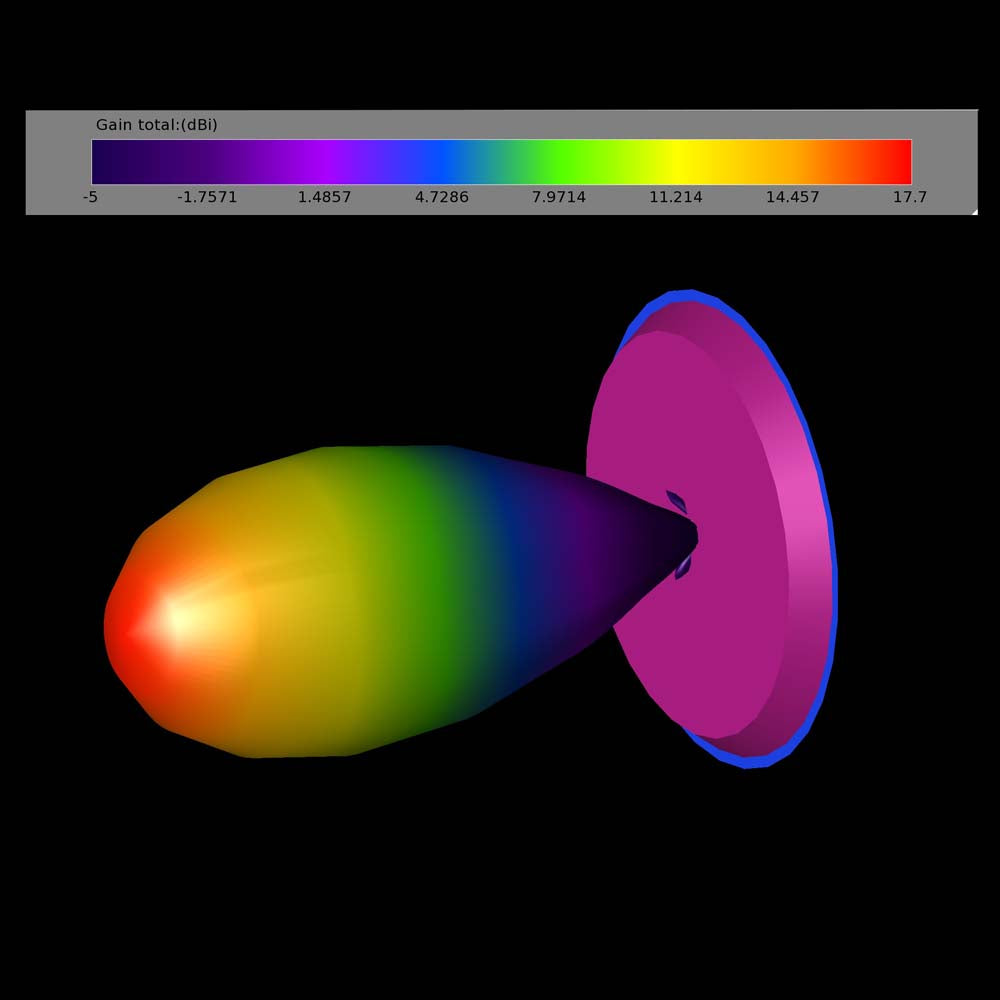

The TrueRC X-RAY 5.8GHz Antenna is a new development of the X-AIR technology. This antenna features a single feed panel format with very low side lobes, maximizing main lobe efficiency. Achieving up to 18dBic over a single element in a simple clean and thin format, the X-RAY is the physical expression of TrueRC's design philosophy.

• Very low side lobes and excellent front-to-back ratio.
• Excellent axial ratio and efficiency over a large bandwidth

• Frequency: 5.4-6GHz €˜
• Gain: 17-18 dBic
• Polarization: RHCP
• Beam-width*: 60deg
• Beam-width @-3dB**: 24deg.
• Connector: SMA
• Dimensions: 151mm dia. x 20mm
• Weight: xxg

IMPORTANT NOTES

• *Coverage where reception is at least equivalent to an omni.
• **Coverage where at least 70% of the max range is obtained.

• 1x TrueRC X-RAY 5.8GHz Antenna
