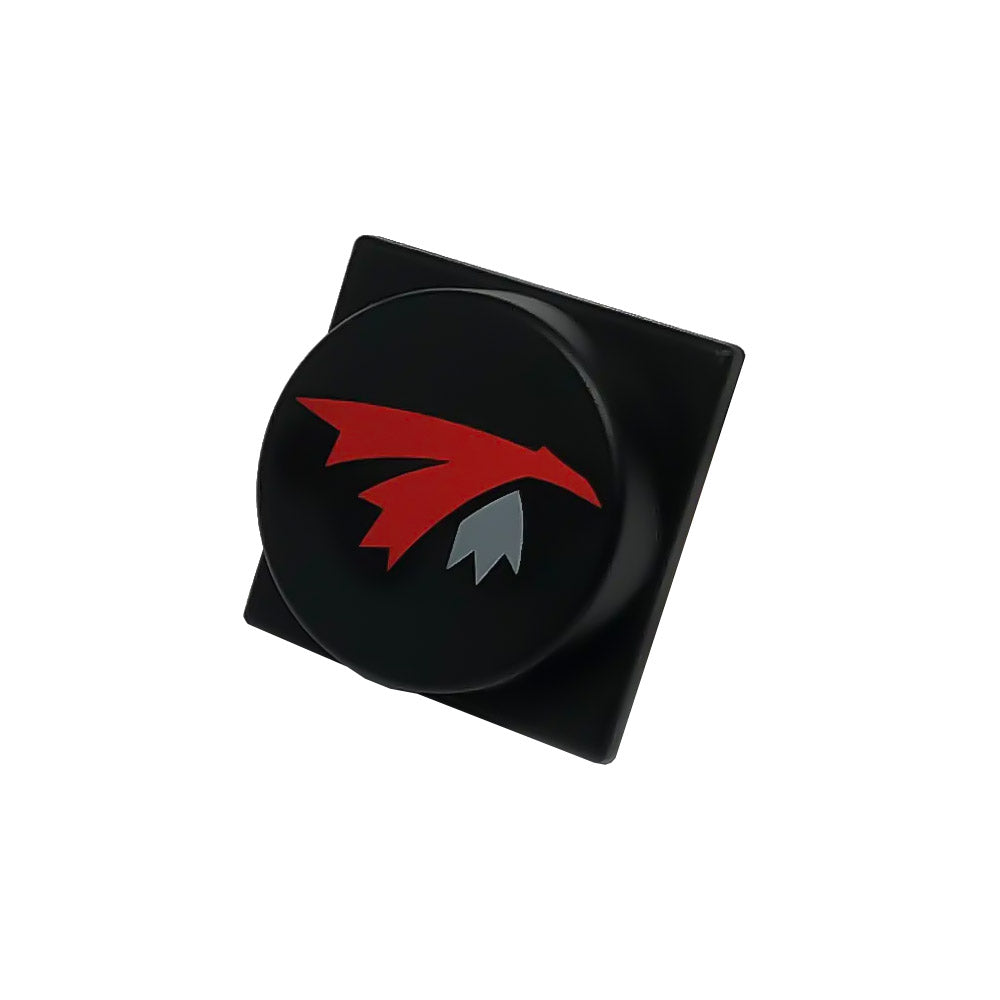

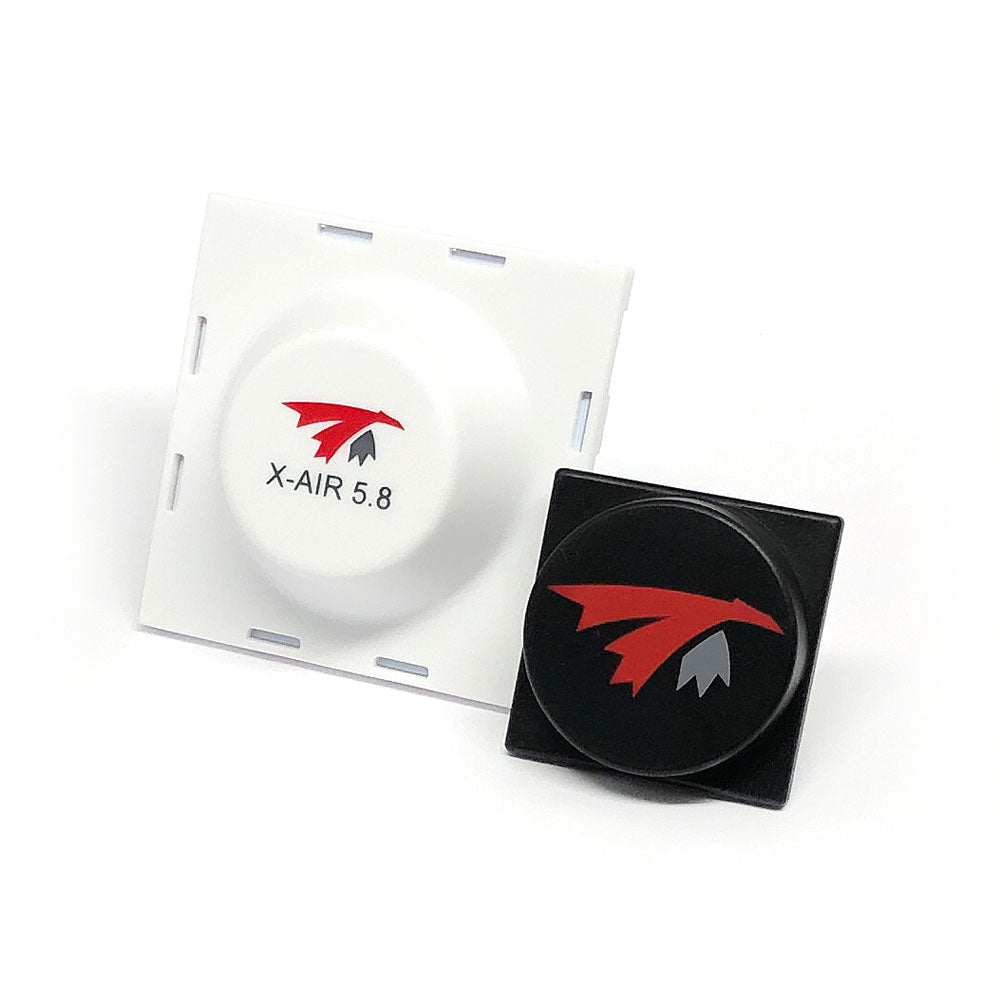

The X-AIR 5.8 MK. II is TrueRC's latest redesign of the X-AIR 5.8GHz antenna. This antenna features aerospace-grade PCB material and the latest computer-aided engineering. The MK. II is almost 1/4 of the original X-AIR and about the same wide coverage. The high axial ratio makes it perfect for far off venture without antenna aiming adjustment.
Specifications
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5 dBic
Polarization: RHCP or LHCP
Beam-width*: 120deg
Beam-width @-3dB**: 68deg.
Connector: SMA male
Dimension: 32 x 32 x 16mm
Note: 45deg SMA or RP-SMA adapter is not included.
*Coverage where reception is at least equivalent to an Omni.
**Coverage where at least 70% of the max range is obtained.
