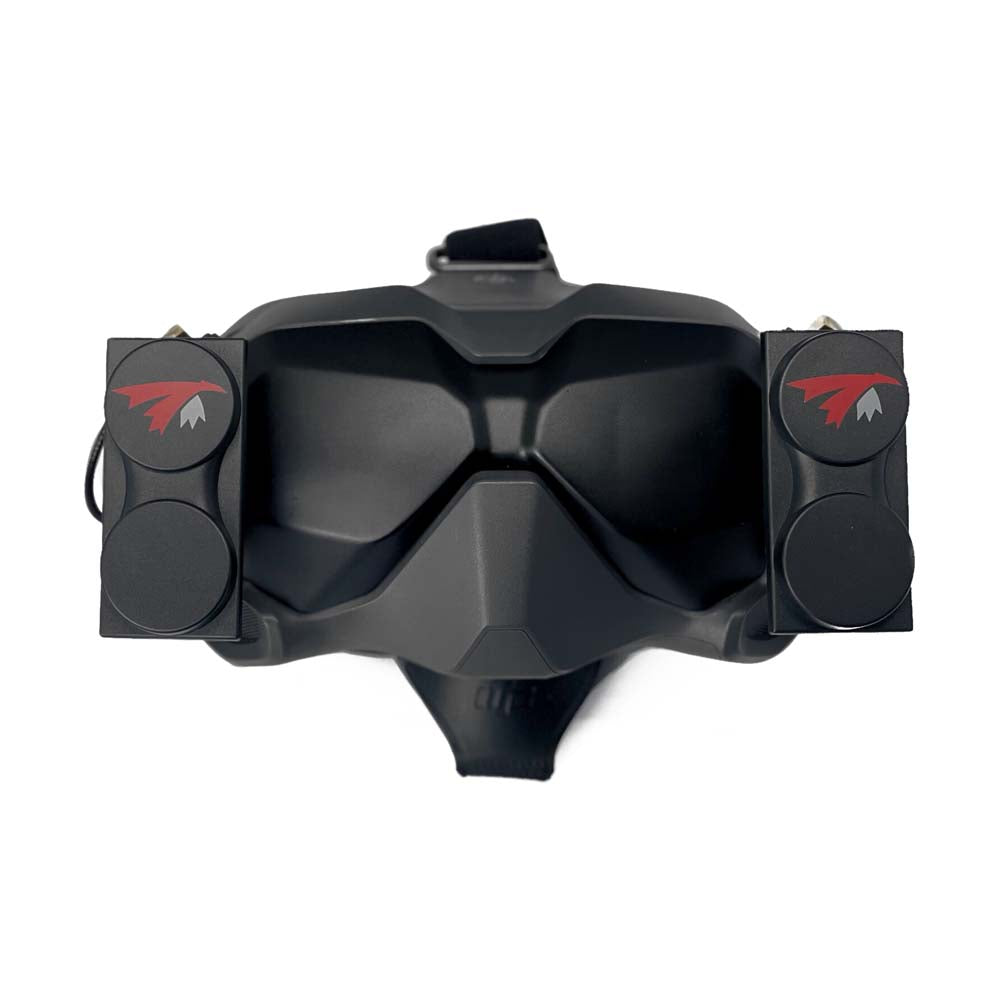

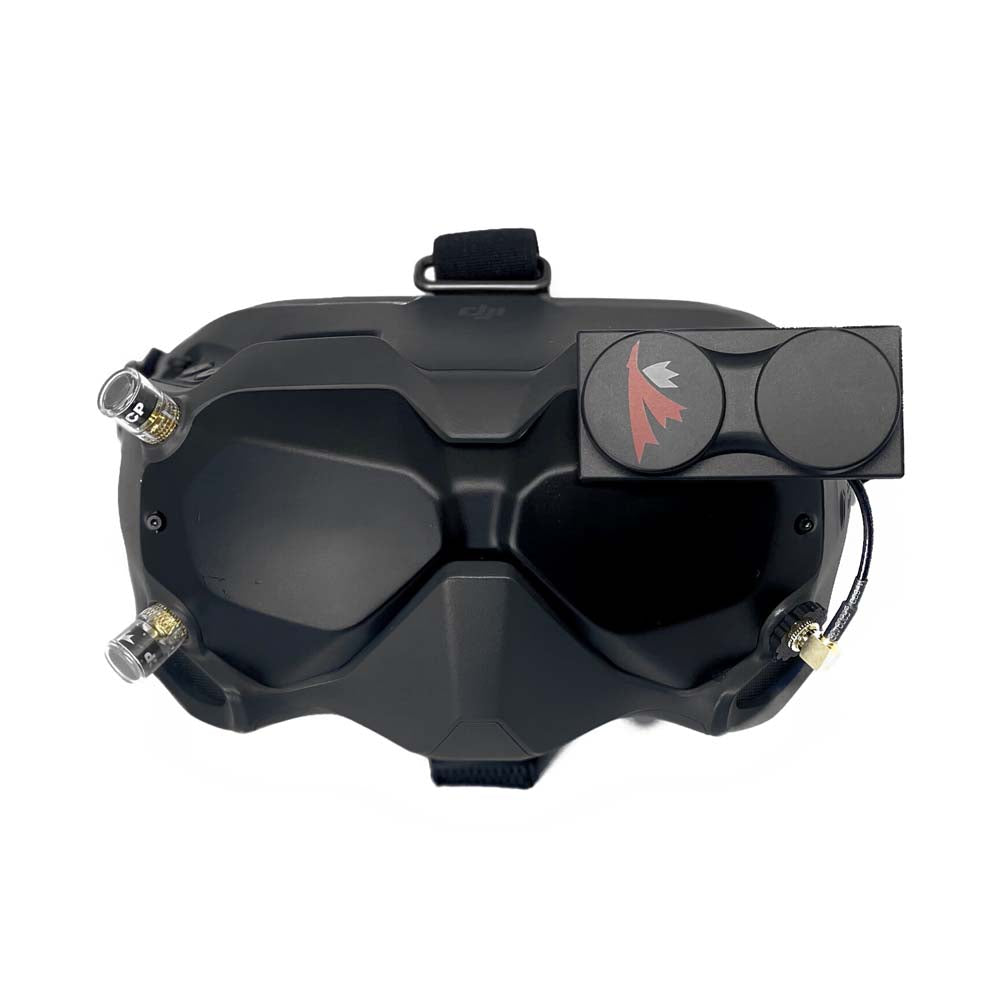

The TrueRC X-AIR MK II 5.8GHz Antenna for DJI FPV is a redesign of the previous predecessor with the same great performance, but easier to mount due to an uptilt angle. The X-AIR MK II for DJI installs on the two left or right antenna ports one either vertical or horizontal position. The horizontal position allows up to 80deg up of tilt so even if you tend to look at the ground while flying, you can keep the antenna aiming forward.
Note: DJI Google Not Included
Specifications
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5 dBic
Polarization: RHCP or LHCP
Beam-width*: 120deg 1
Beam-width @-3dB**: 68deg. €˜
Connector: SMA male
Dimension: 32 x 72 x 16mm
*Coverage where reception is at least equivalent to an Omni. **Coverage where at least 70% of the max range is obtained.
Includes
(Include all hardware to mount on DJI FPV goggles)

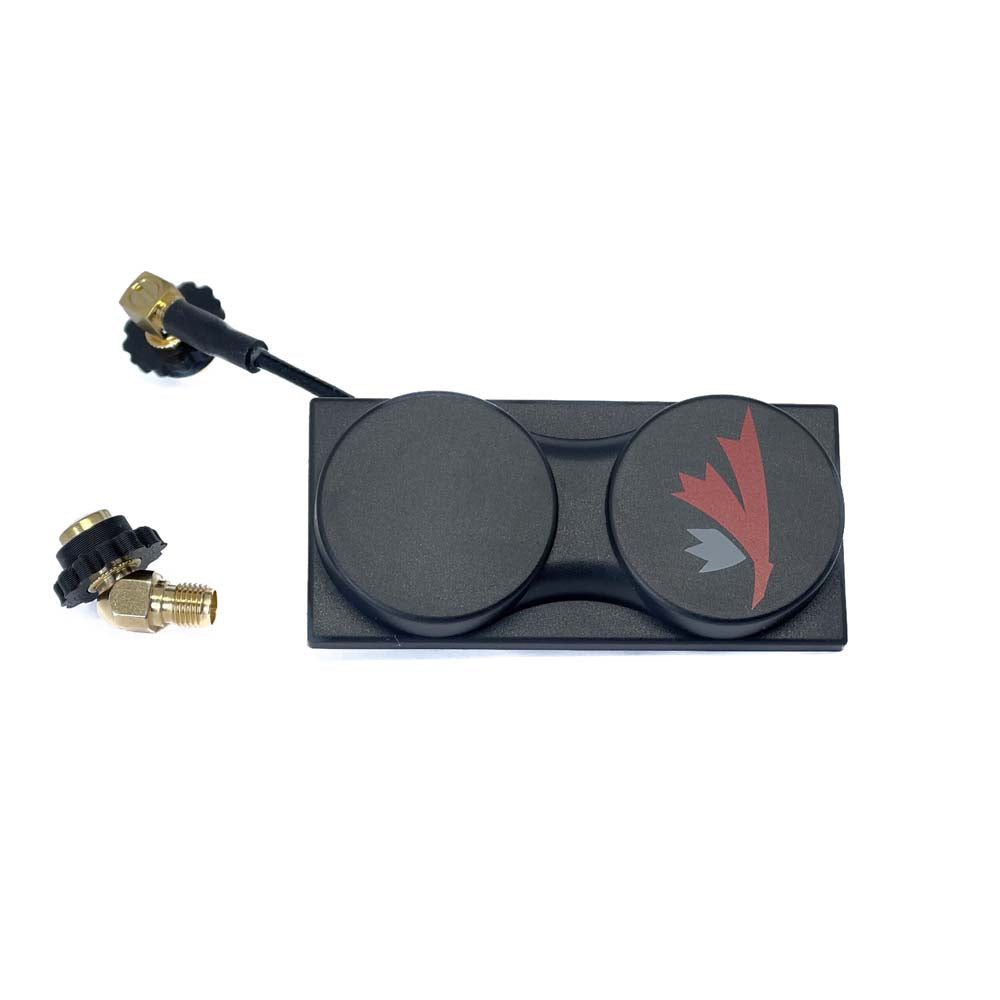

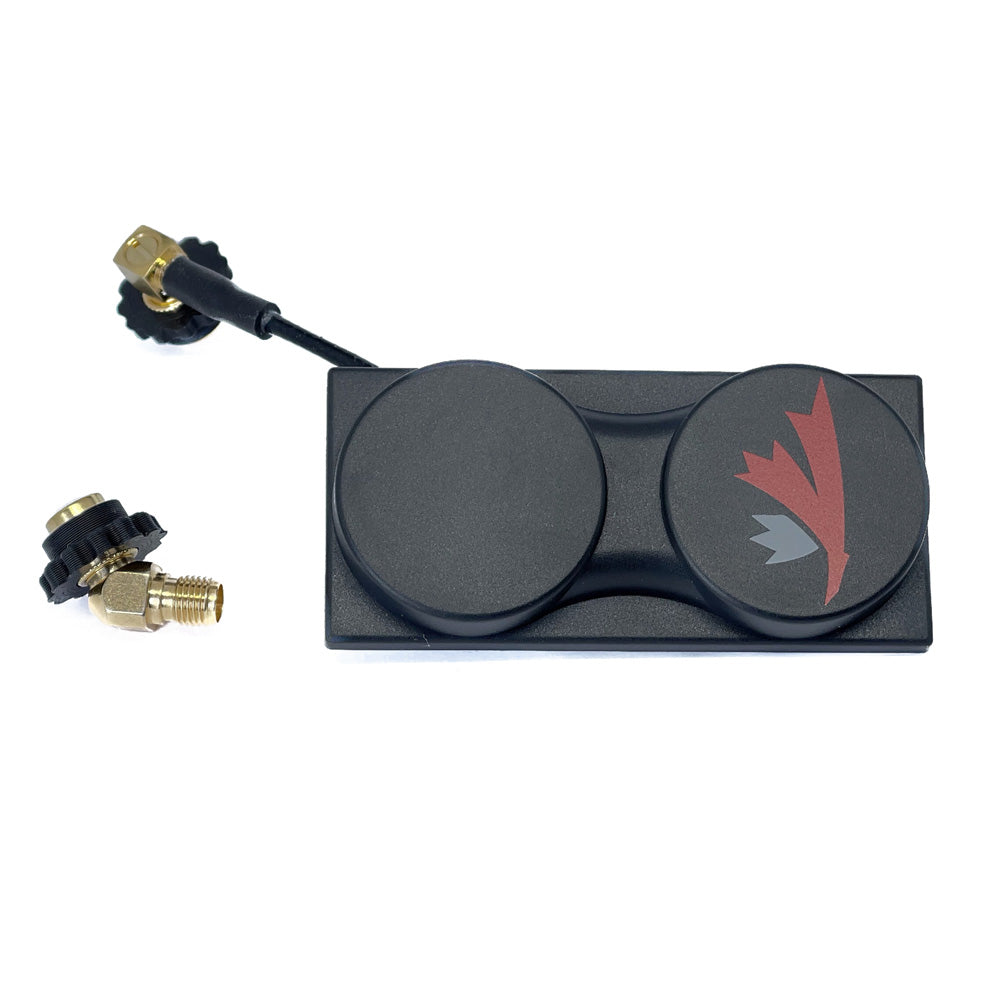

1 x TrueRC X-AIR MK II 5.8GHz Antenna for DJI FPV (LHCP)
