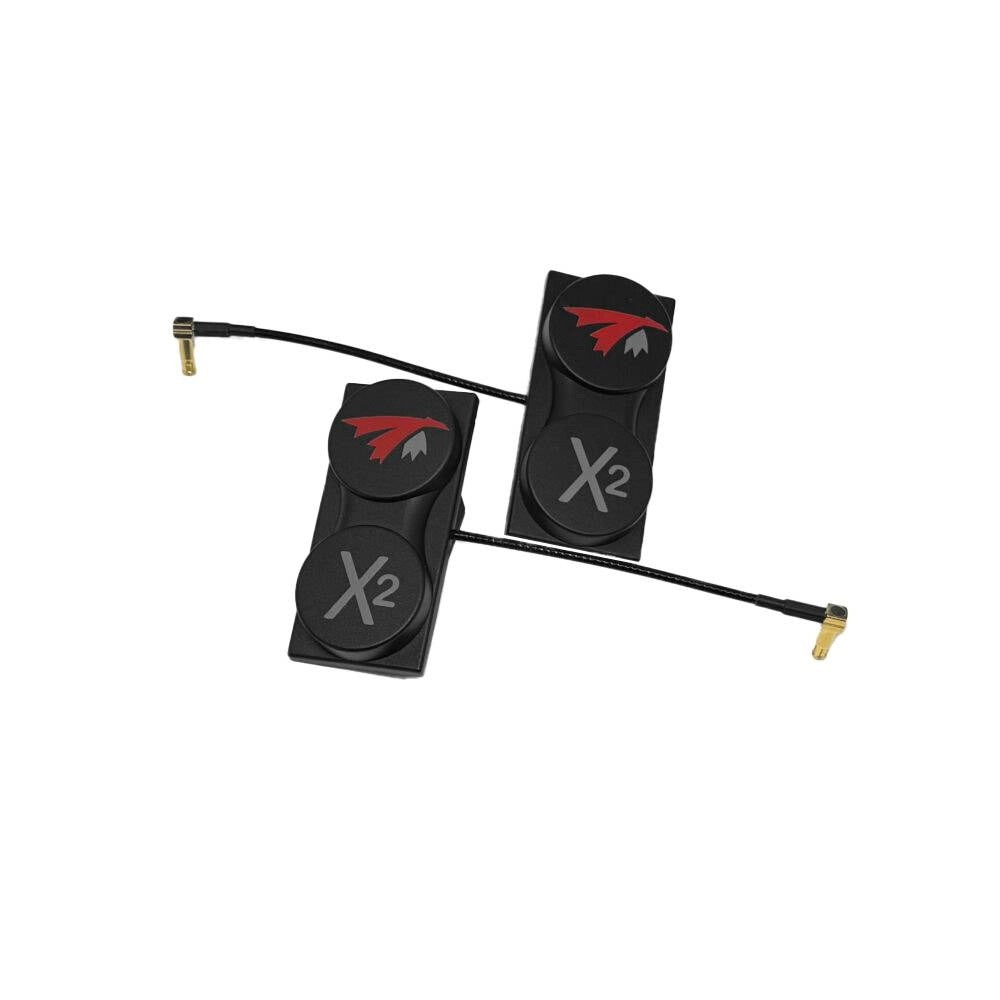

Unlock long-range performance with the TrueRC X²-AIR 5.8 MK II Antenna for DJI Goggles 2 (Set of 2) - LCHP, designed specifically for the DJI Goggles 2. This powerful pair delivers an impressive 13 dBic gain and a combined 180° beam width for a rock-solid signal in challenging environments. Installation is fast and seamless—just peel, stick, and swap the stock antennas for the included custom MCX connectors. Fly farther, fly stronger.
Features
Mounts directly to DJI Goggles 2 with adhesive
13 dBic gain for long range and penetration
Wide bandwidth, works beyond 5.8GHz
150° beam per antenna, 180° combined
Circularly polarized for a clear signal
Wide horizontal beam coverage
Low-profile, compact design
Custom MCX connectors
Specifications
Frequency Range: 5.1GHz – 7.0GHz
Gain: 13 dBic
Polarization: LHCP
Horizontal Beam Width: 150°
Vertical Beam Width: 62°
Horizontal Beam @ -3dB: 75°
Vertical Beam @ -3dB: 34°
Connector: Custom 90° MCX
Dimensions: 72 × 34 × 15 mm
Weight: 20g per antenna
Includes adhesive mount for DJI FPV Goggles 2 installation
Includes
2x TrueRC X²-AIR 5.8 MK II Antenna for DJI Goggles 2 (Set of 2) - LCHP
