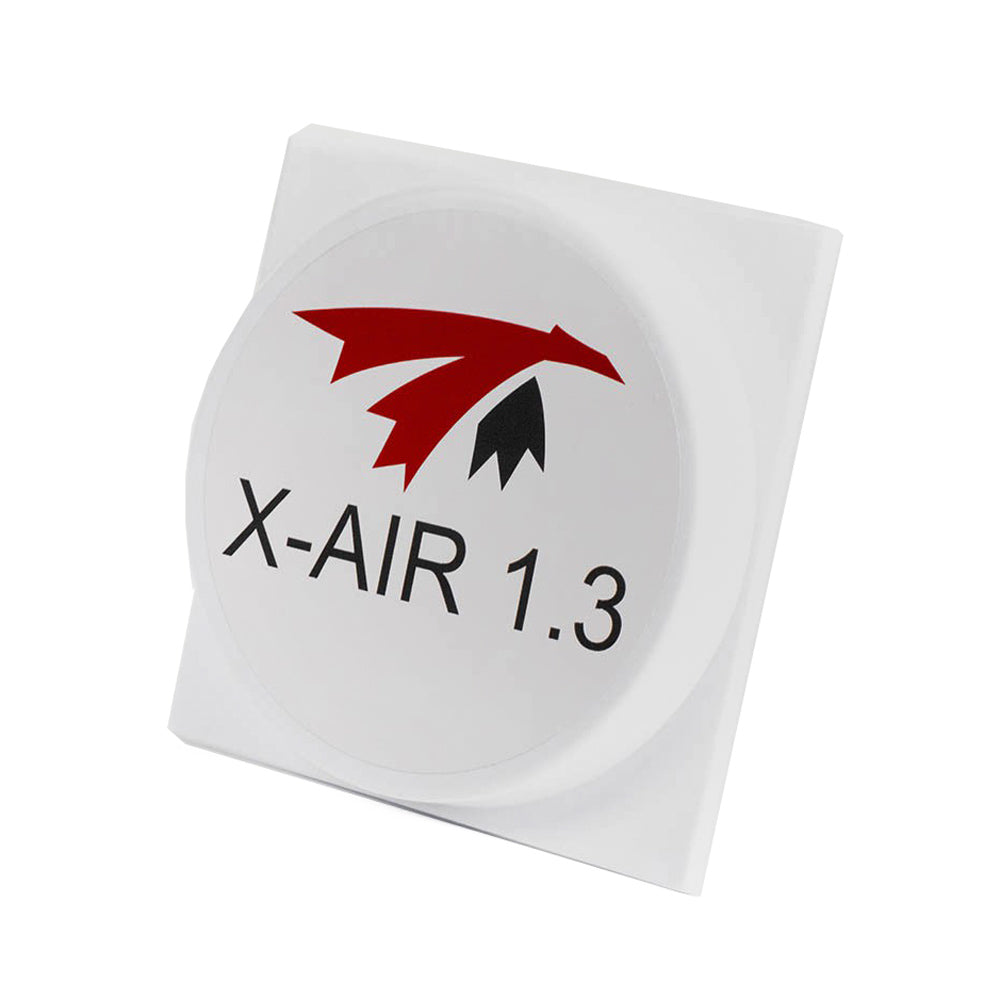

TrueRC X-AIR 1.3GHz Antenna

The new X-AIR 1.3 is TrueRC's latest redesign of the crosshair antenna. The X-Air antenna is 1/4 the size of the original one but has the same wide coverage and high axial ratio to make it perfect for the far-off venture, without antenna aiming adjustment. A 1/4-20 mounting point in the back makes the featherweight super easy to attach to your ground station.

Features

• Durable polycarbonate, Injection Molded, ultra-sonically welded Housing
• A clear indication of polarization direction
• Excellent axial ratio and efficiency
• Heavy-duty coax cable that can be bent to shape
• Knurled True-SMA for easy tightening

Specifications

• Frequency: 1.3GHz
• Gain: 10 dBic
• Polarization: RHCP or LHCP
• Radiation efficiency: 98%
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg
• Connector: SMA male
• Dimension: 152mm x 152mm x 30mm
• Mounting: Standard 1/4-20 flush thread
• Weight: 135g
• Included 7cm flexible low loss extension

Includes

• 1 x TrueRC X-AIR 1.3GHz Antenna (LHCP or RHCP Options)
