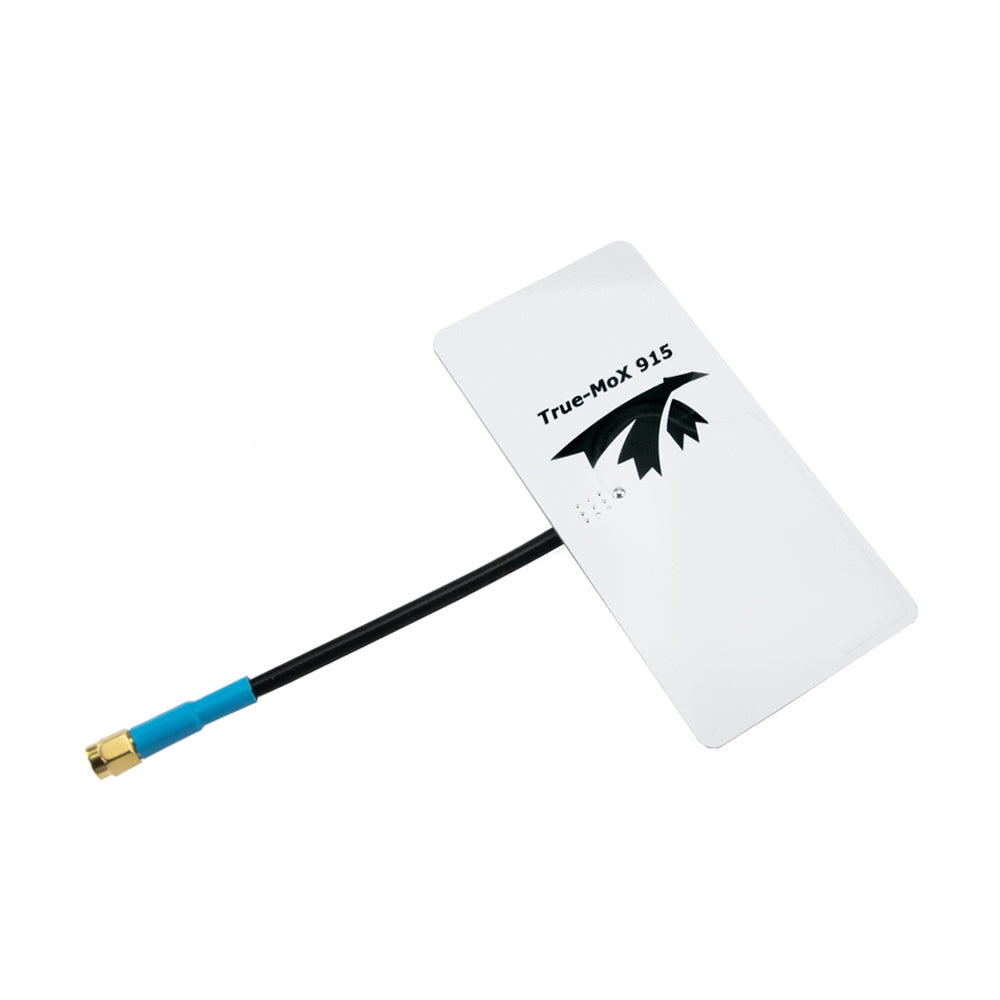

TrueRC True-MoX 915 RP-SMA Antenna

The True-MoX 915 RP-SMA is TrueRC's revision of the Moxon using latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with radio or pilot's body are kept at near zero thanks to their patent pending design. This is the perfect radio antenna for TBS Crossfire. or FRsky R9M. Note that this is not a patch, do not point the flat part toward the target. Point the long edge of the white panel toward the intended flight area. Having the long edge vertical produce vertical polarization

Specifications

• Frequencies: 902-925MHz
• Gain: 5.4dBi
• Beam width*: 156deg
• Beam width @-3dB**: 133deg
• Connector: RP-SMA
• Dimensions: 103mm x 165mm

Important Notes

• Please verify your connector to ensure proper connection and function!

Includes

• 1 x TrueRC True-MoX 915 RP-SMA Antenna

*Coverage where reception is at least equivalent to an Omni.
**Coverage where at least 70% of the max range is obtained
