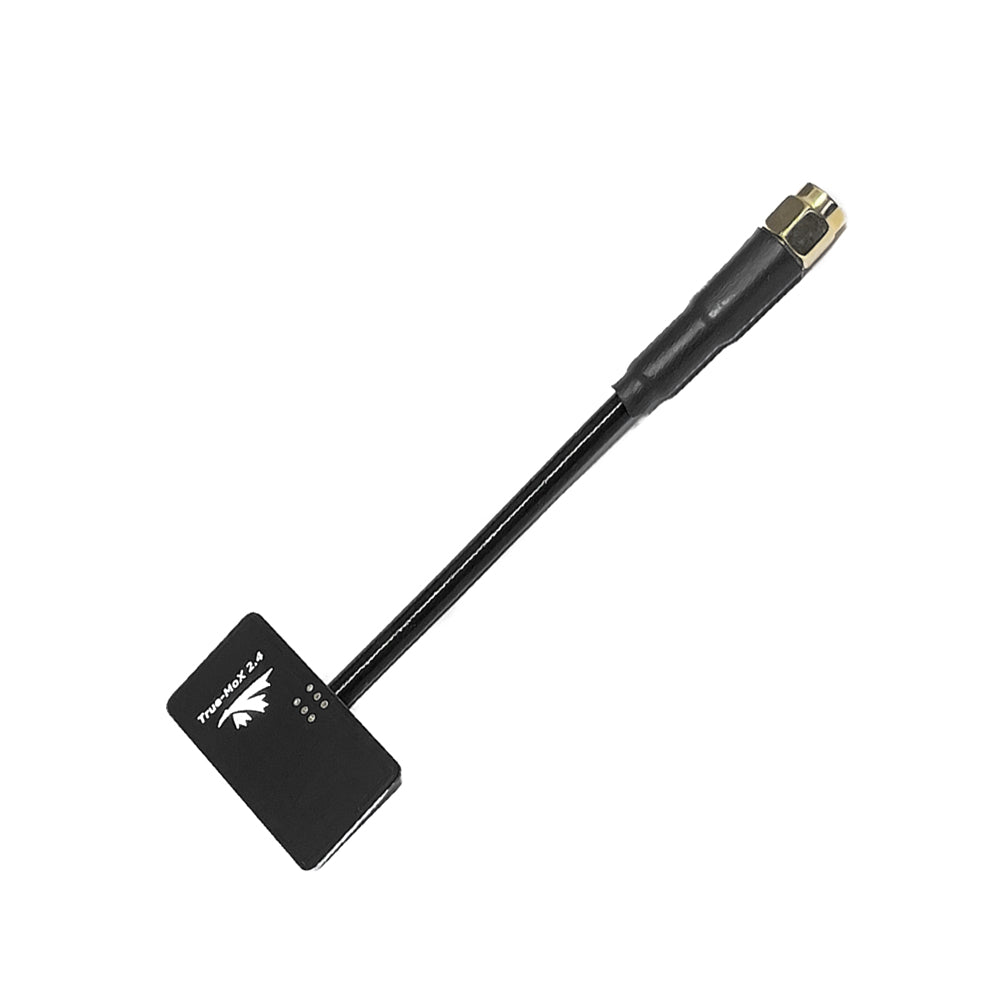

The True-MoX 2.4 is a TrueRCs revision of the Moxon using the latest 3D electromagnetic simulation tools and RF-rated PCB material. Interactions with the radio or the pilot's body are kept at near-zero thanks to our patent-pending design. Great for IRC Ghost or TBS Tracer.
Note: This is not a patch, do not point the flat part toward the target. Point the long edge of the panel toward the intended flight area. Having the long edge vertical produces vertical polarization.
Patent pending.
Specifications
Frequencies: 2400-2510MHz
Gain:5.9dBi
Beamwidth*: 156deg
Beamwidth @-3dB**: 133deg €˜
Connector: RP-SMA
Dimensions: 39.5mm x 100mm
Weight: 23g
*Coverage where reception is at least equivalent to an Omni. **Coverage where at least 70% of the max range is obtained.
