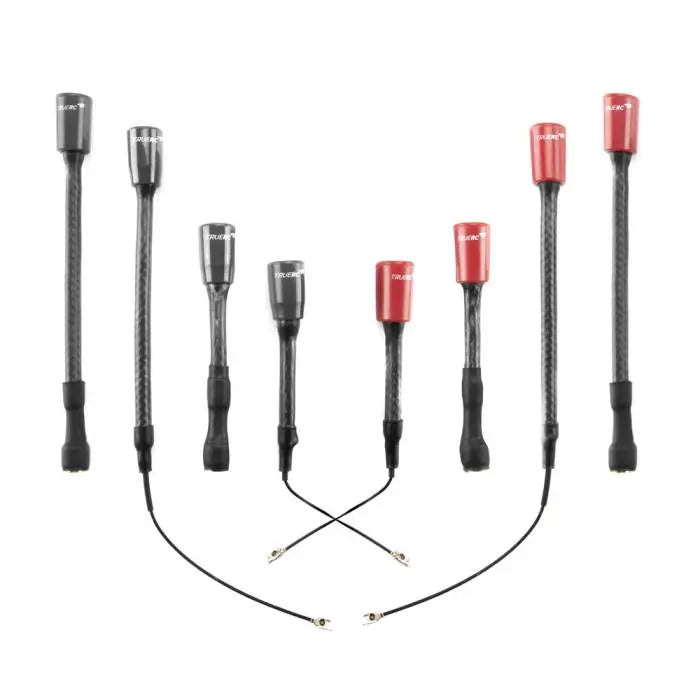

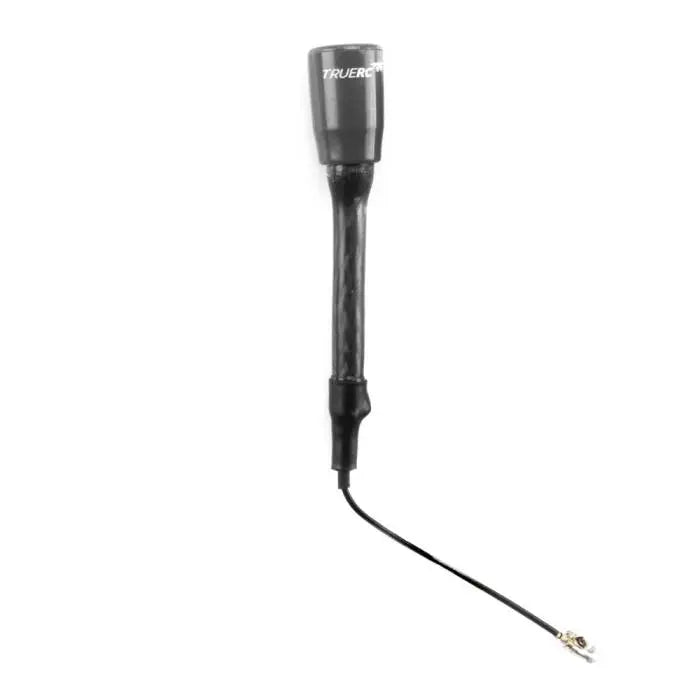

TrueRC Matchstick 5.8GHz Antenna - Carbon Edition

Introducing... the new TrueRC Matchstick Antenna - Carbon Edition!  The Matchstick was designed to take a beating. Made with a hardened stubby case connected to a carbon fiber reinforced coax cable, the Matchstick gives you grade-A performance that will survive the worst. Choose between SMA and U.FL connectors with multiple cable lengths available.

Note: This is one single antenna. Multiple options are sold separately.

Features

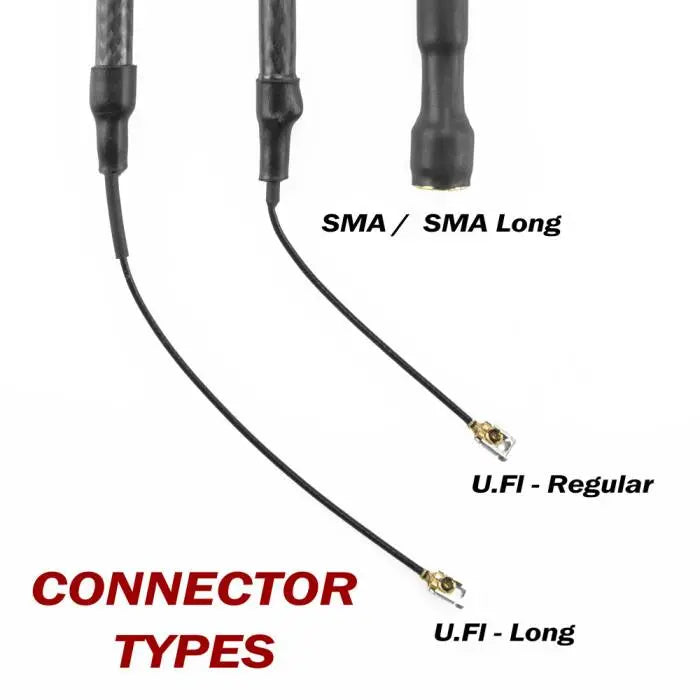

• U.FL or SMA Cables (Long, Regular, or Standard)
• Carbon Fiber Reinforced Cables
• LCHP or RHCP

Specifications

• Cross-Polar Rejection: -15 to -30dB (1.9%)

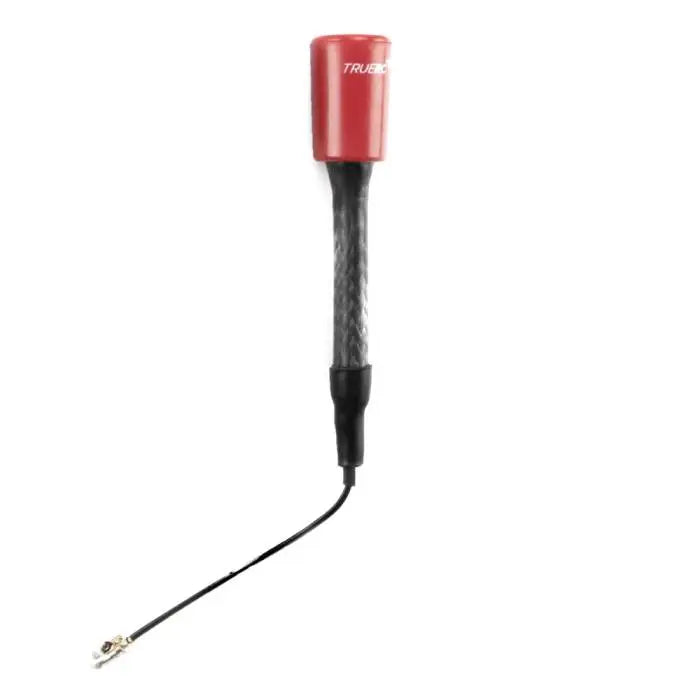

• Size (Regular): 12.7mm x 70mm
• Cable: Carbon Fiber reinforced

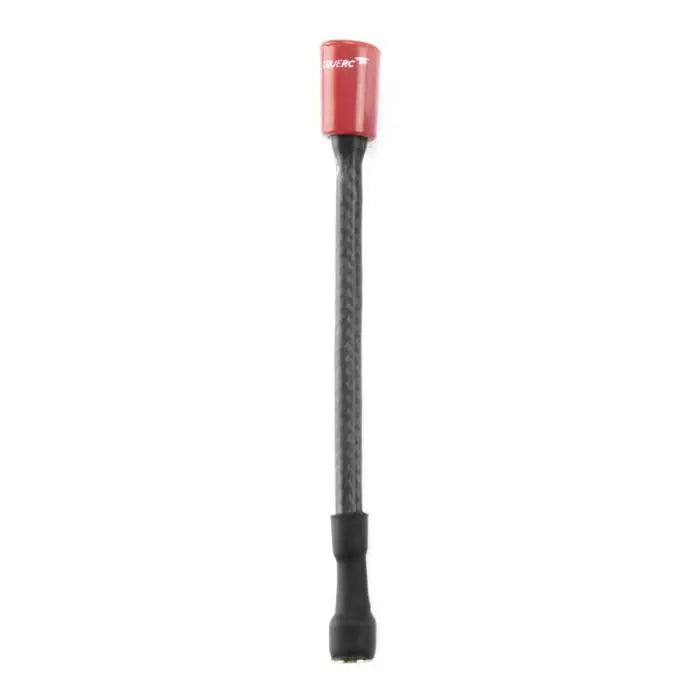

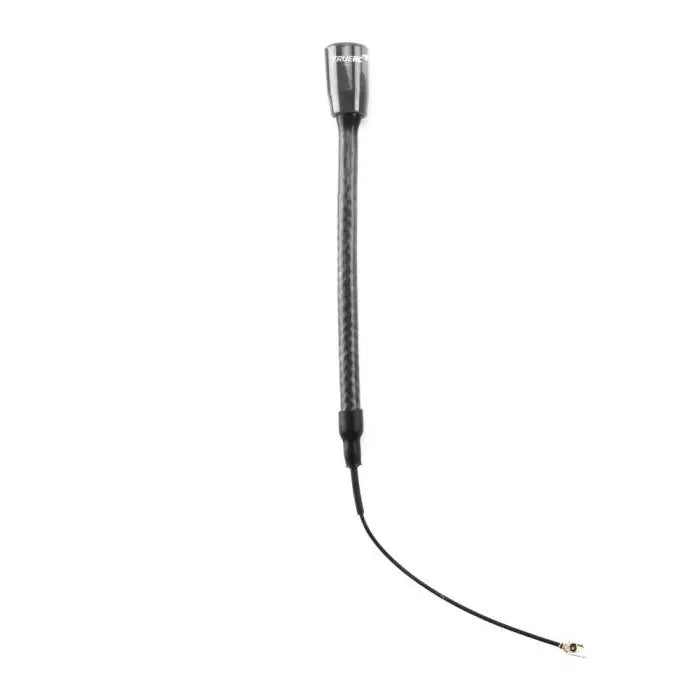

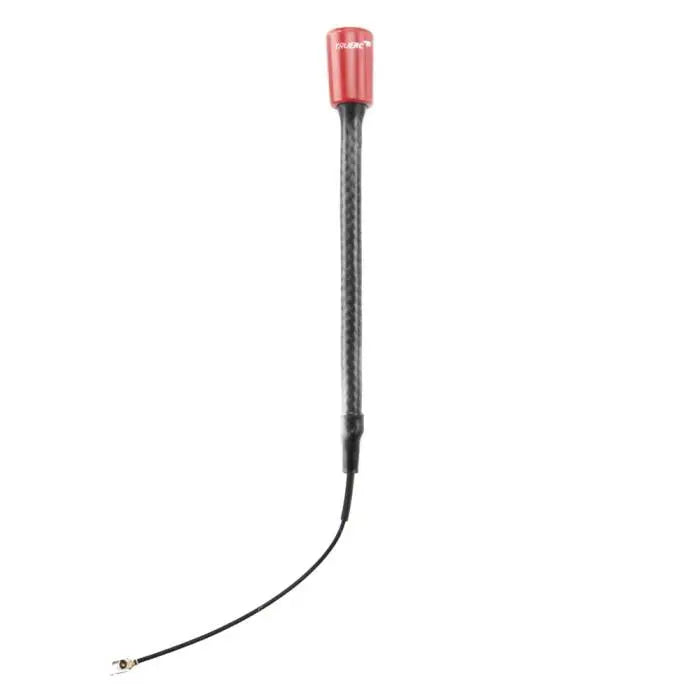

• Size (Long): 12.7mm x 125mm

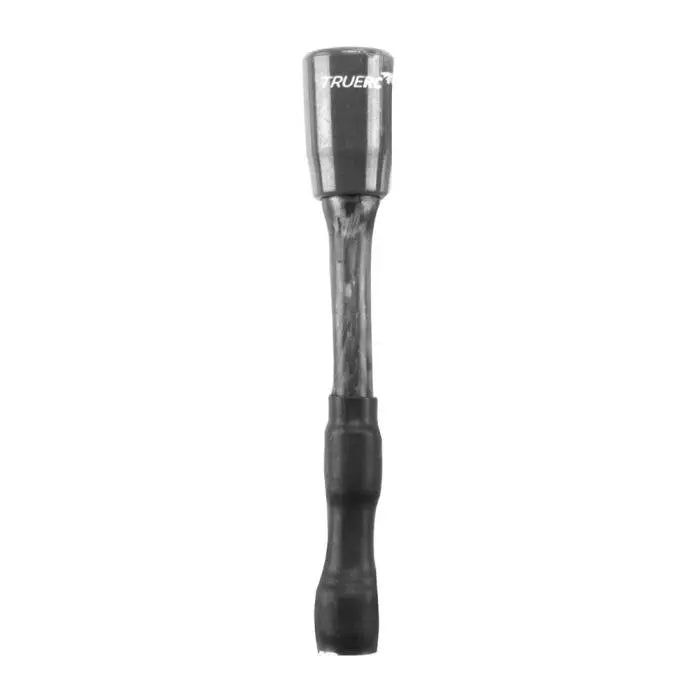

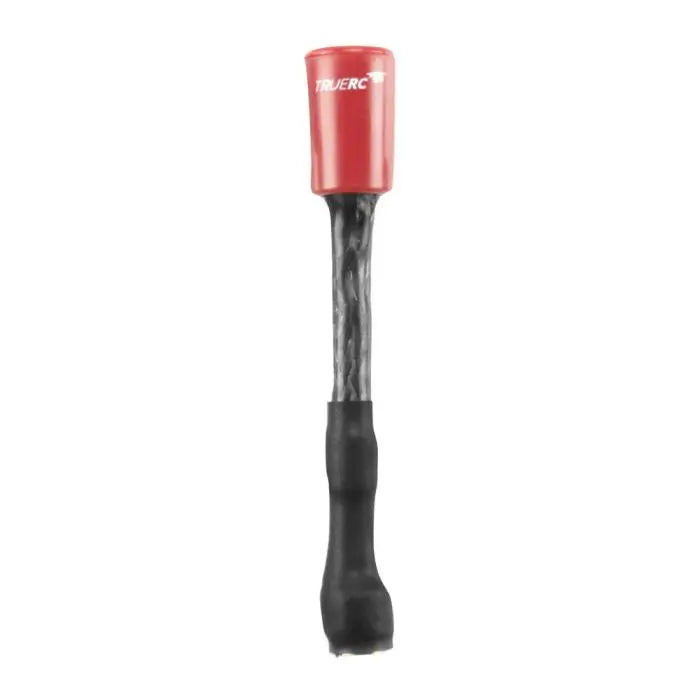

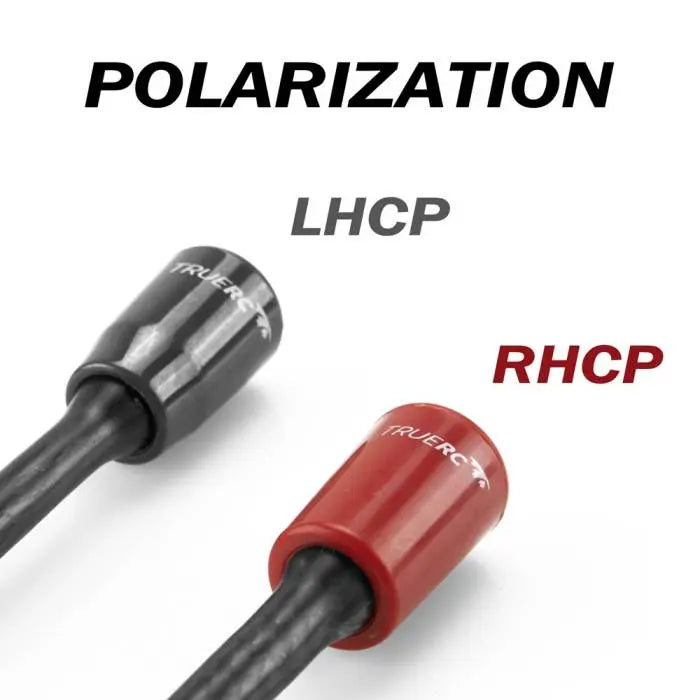

• Polarization: LHCP or RCHP
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• Connector: SMA or U.FL
• Weight (Regular): 6.2 g
• Size: 12.7mm x 70mm
• Weight (Long): 7.8 g
• US. Pat. 10,804,618
• Can. Pat. 2968566
• SWR: <=1.5:1
• Weight: 5.9 g

3D Print File

• Vista mount for U.fl version

Includes

• 1x TrueRC Matchstick 5.8GHz Antenna - Carbon Edition (Choose Connector and Length)
• Note: This is one single antenna. Multiple options are sold separately.
