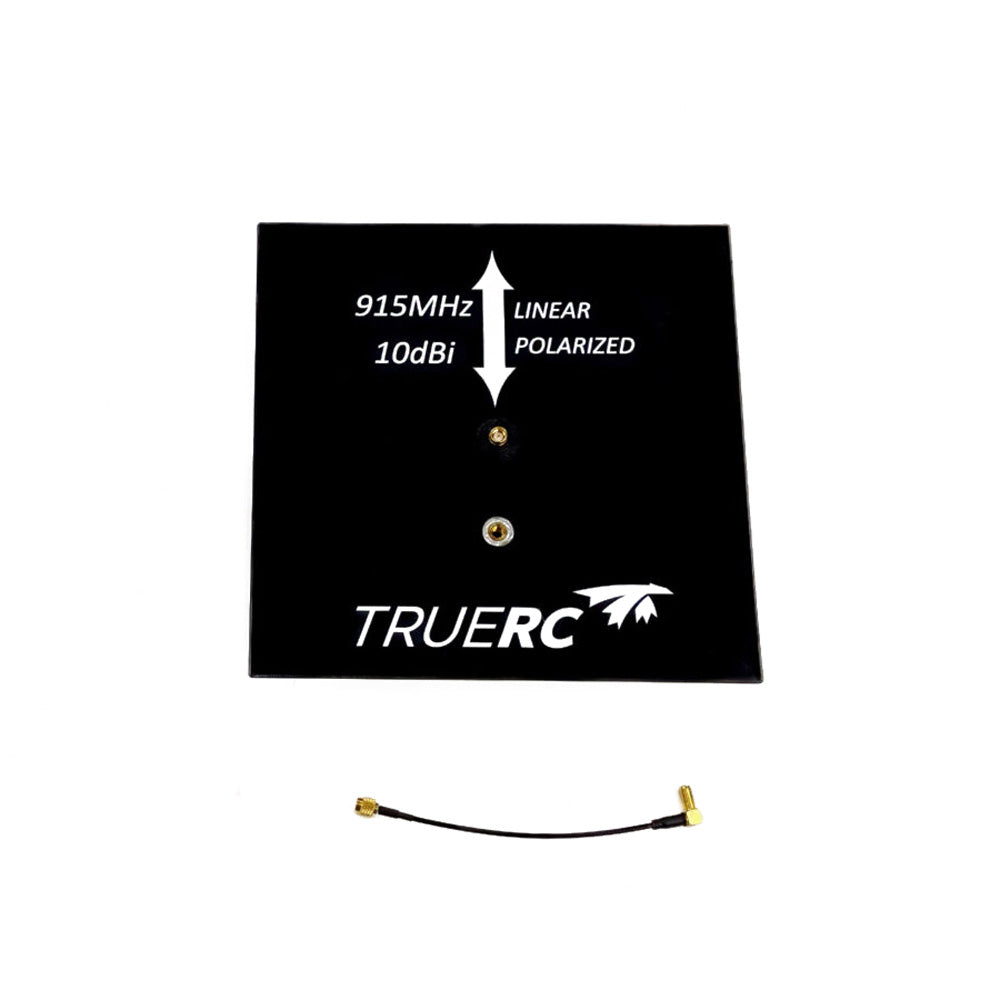

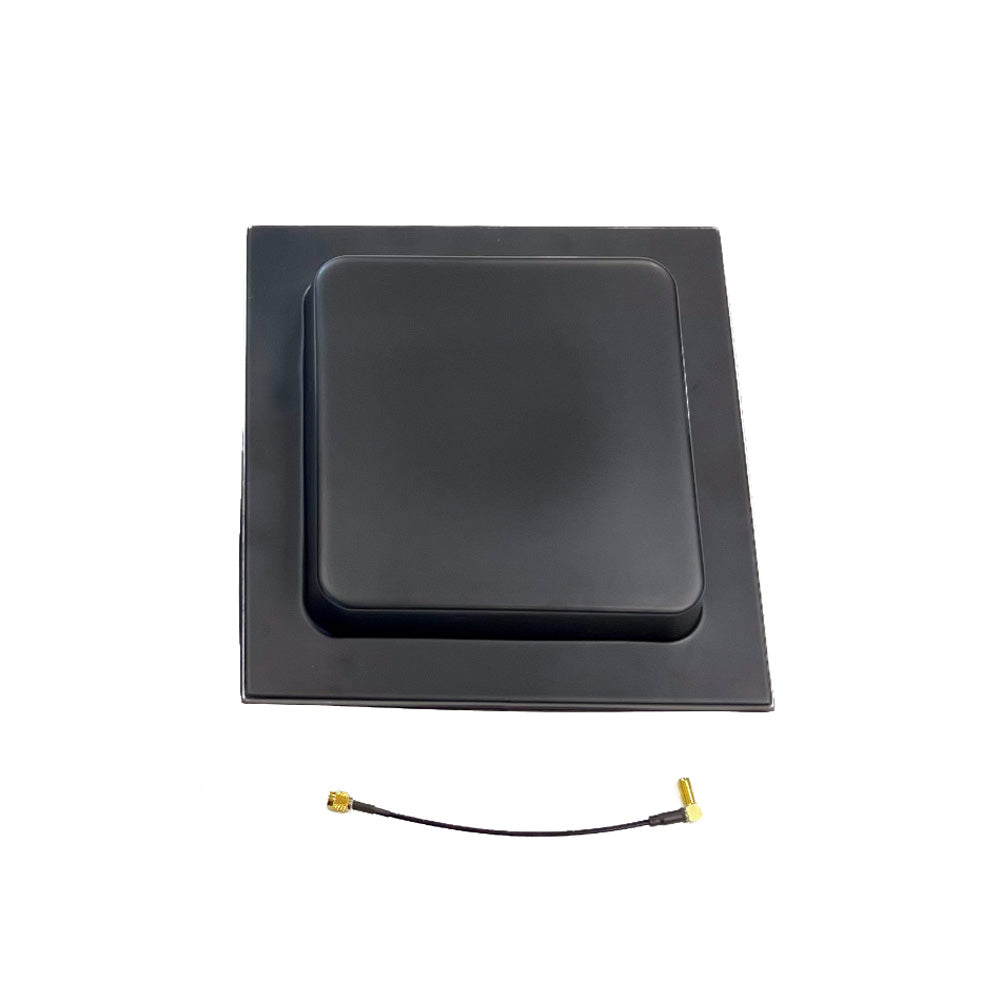

The TrueRC Line-AIR 900 is the latest redesign of the Biquad antenna. TrueRC has managed to pack the famous Biquad punch in less than half the typical size. A 1/4-20 mounting point in the back makes it featherweight and super easy to attach to your ground station.
Features
15cm flexible low loss extension
1/4-20 mounting point
Ultralight
900MHz
Specifications
Mounting: Standard 1/4-20 flush thread
Dimension: 222mm x 222mm x 45mm
Frequency: 900MHz ISM band
Beam-width @-3dB**: 68deg
Radiation efficiency: 99%
Connector: SMA male
Beam-width*: 120deg
Polarization: Linear
Gain: 10 dBic
Weight: 224g
**Coverage where at least 70% of the max range is obtained.
*Coverage where reception is at least equivalent to an omni.
