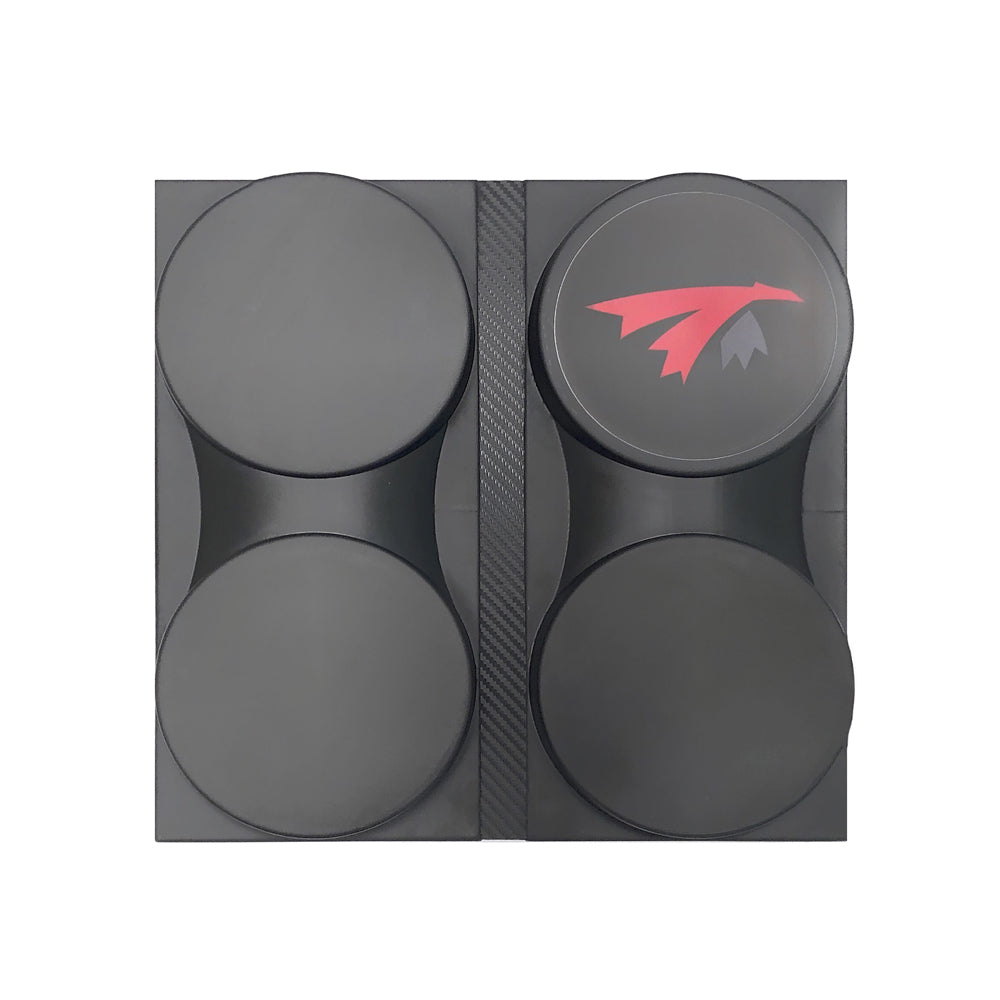

The new Gatling V2 1.2-1.3GHz Antenna uses TrueRCs latest redesign of the crosshair antenna. Smaller footprint, lighter weight, and same great performance as the original, and a 1/4-20 mounting point in the back, make it super easy to attach to your ground station.
VIDEO: Stuwes's Downhill 2020 featuring the Gatling V2
Features
Lightweight and of relatively compact size
Impressive 16dBic of gain!
Specifications
Frequency: 1.200-1.360GHz
Gain: 16 dBic
Polarization: RHCP
Radiation efficiency: 98%
Beam-width*: 66deg
Beam-width @-3dB**: 32deg.
Connector: SMA male
Dimension: 360mm x 360mm x 40mm
Mounting: Standard 1/4-20 thread
Weight: 650g
*Coverage where reception is at least equivalent to an Omni. **Coverage where at least 70% of the max range is obtained.
