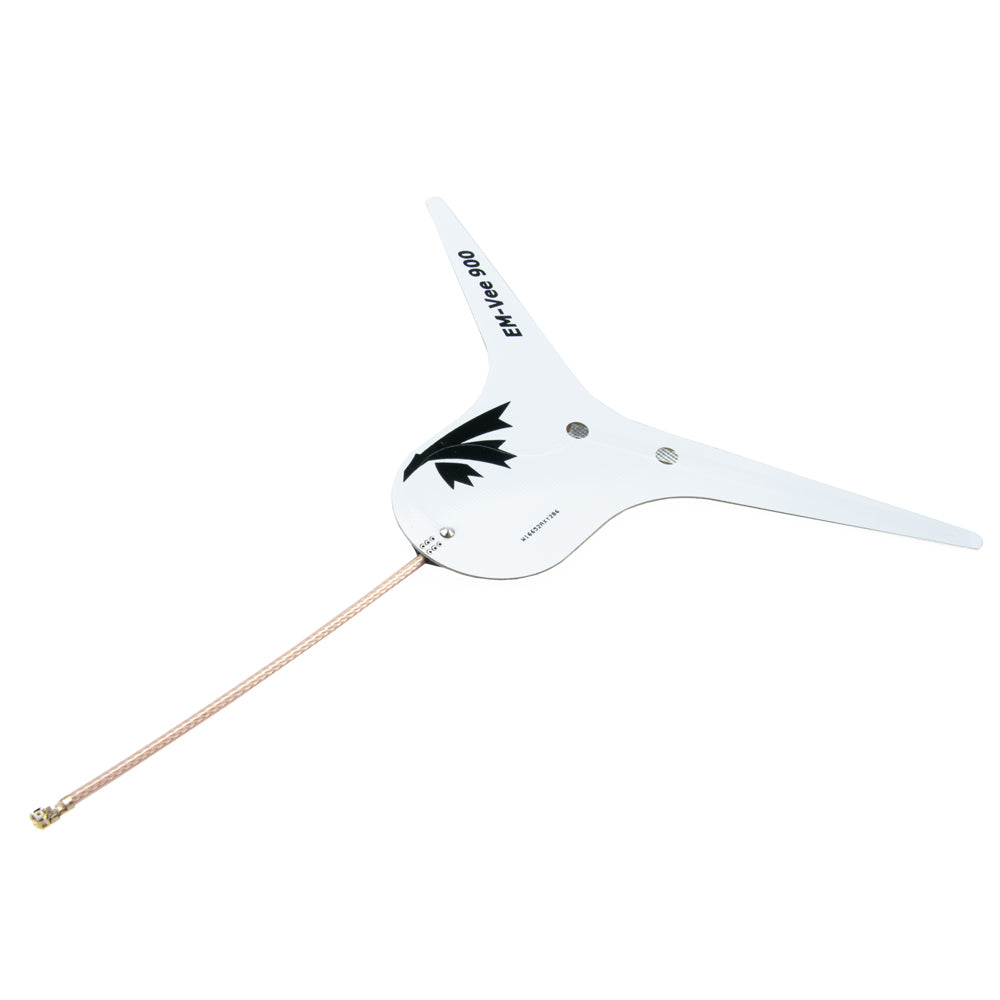

The Vee is a sort of dipole bent to form a V of more or less angle. It yields a more uniform radiation pattern with nulls on top and bottom that aren't as bad as the regular straight dipole. We pushed it a little further with a more pronounced angle that reduces nulls further, especially toward the bottom (under the logo). Use directly on your TBS crossfire micro or nano receiver.
Specifications
Frequencies: 868-930MHz
Gain: 1.7dBi
Cable: Flexible RG178
Connector: U.fl
Dimensions: 135mm x 75mm (80mm cable)
Includes
1 x TrueRC EM-Vee 900 U.Fl Antenna
Note from the designer: We left two solder pads on each side of the antenna. They are to solder your own wires, either for repair or DIYer.
