Team BlackSheep

TBS Lucid Pro F4 Mini Flight Controller - MPU6000 - 20x20

TBS Lucid Pro F4 Mini Flight Controller - MPU6000 - 20x20

Regular price $64.99 USD
Regular price Sale price $64.99 USD
Sale Sold out

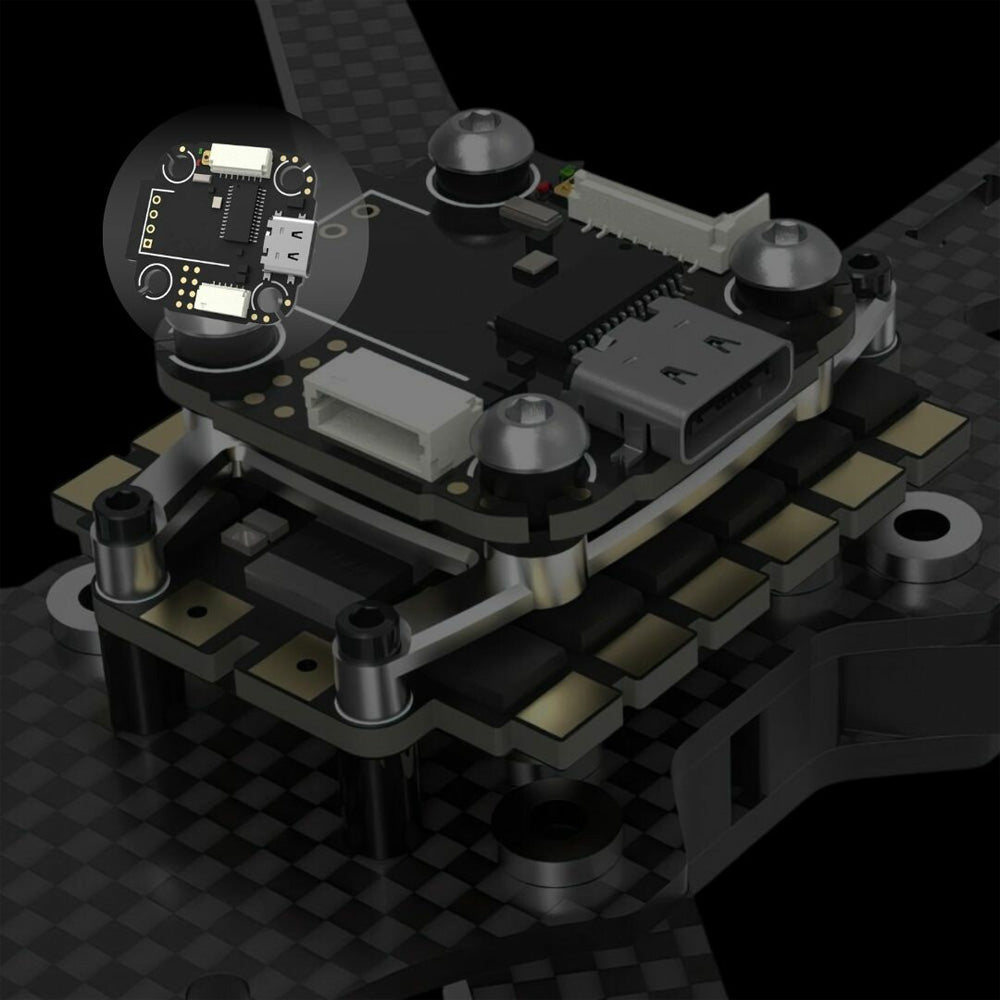

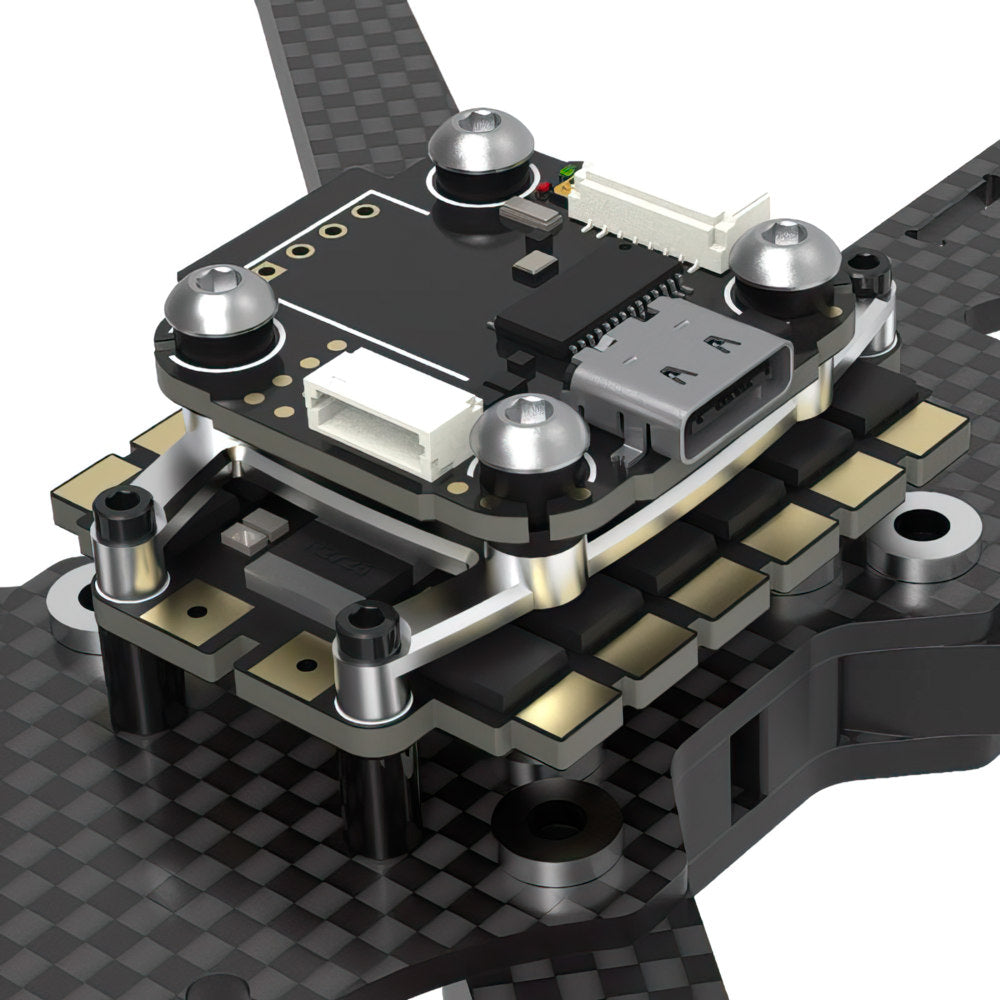

The TBS Lucid Pro F4 Mini Flight Controller is the latest in product engineering at TBS, built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers. The TBS Lucid flight controller is a 20x20 masterpiece designed for the Lucid flight stack but compatible with all 20x20 ESCs. There are plug-and-play connectors for the DJI O3 digital system and 4-in-1 ESCs. The solder pads for auxiliary devices are designed and arranged to be easy to solder and logical for installation in your favorite drone frames, such as the TBS Source One.

Features

  • Built for racing and freestyle
  • Plug-and-Play Connectivity
  • User-Friendly Design
  • Supports 4-in-1 ESCs
  • Versatile Application
  • High Compatibility

Specifications

  • UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)
  • Motors: 4 motors, with telemetry and current sensor
  • MCU: AT32F435RMT7, 288MHz
  • Mounting: 20mm x 20mm
  • BEC: 9V, 2.5A; 5V, 2A
  • Size: 31mmx29mm
  • Gyro: MPU-6000
  • OSD: AT7456E
  • Weight: 4.51g
  • Blackbox: 8M
  • Input: 3S-6S

Includes

  • 1x TBS Lucid Pro F4 Mini Flight Controller - MPU6000 - 20x20
  • 1x FC-to-ESC cable (plug & play)
  • 1x DJI O3 cable (plug & play)
  • 1x Hardware Set
