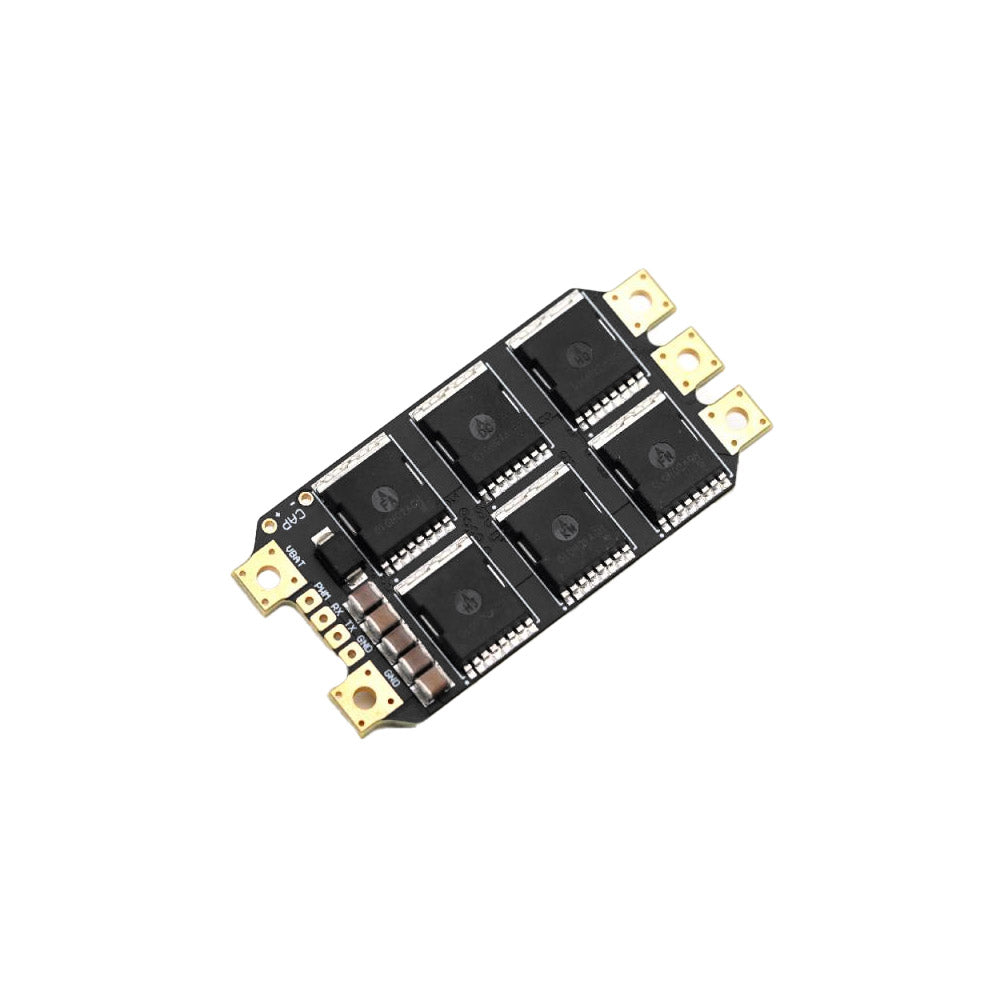

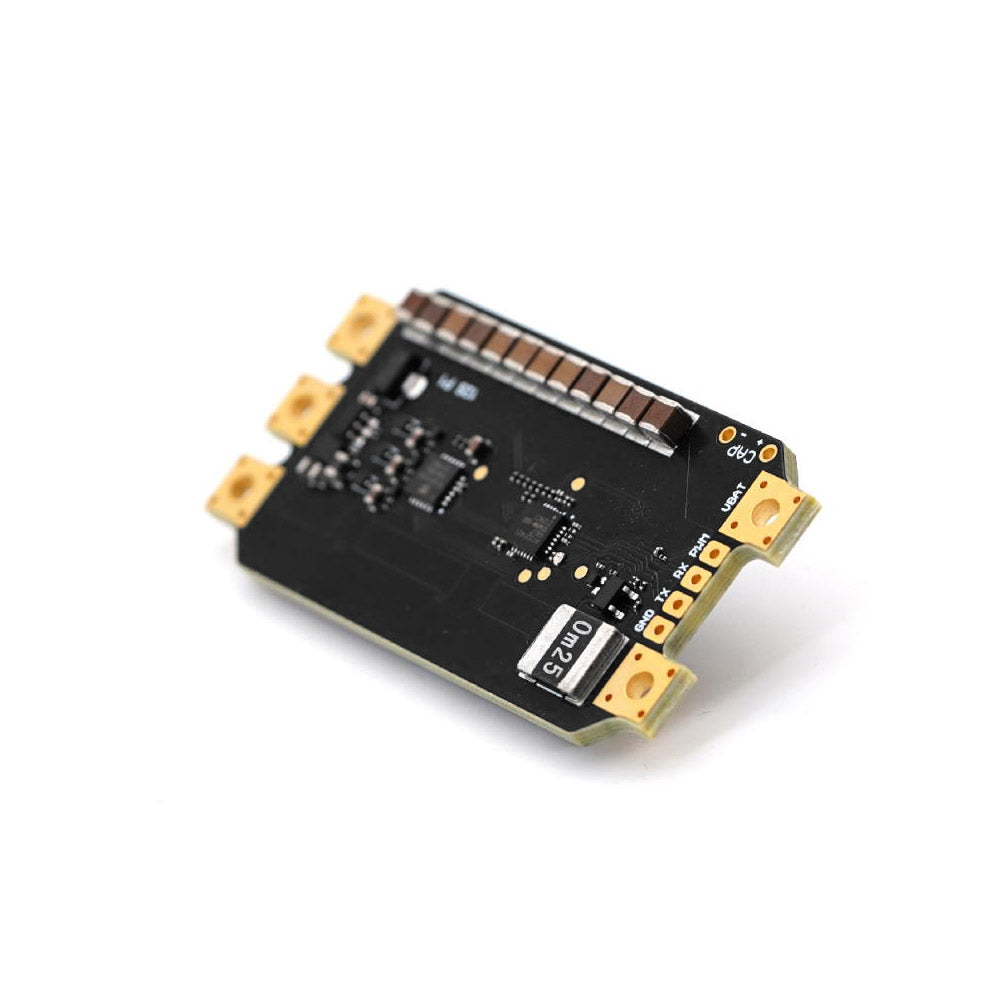

TBS Lucid 90A 3-12S AM32 ESC

The TBS Lucid 3-12S ESC is designed for high-power applications, offering exceptional reliability and durability in demanding conditions. Its 8-layer high-current board provides excellent heat resistance and voltage spike protection, all without heavy heatsinks. Fine-tuned in collaboration with AM32, the Lucid 3-12S delivers peak performance at an affordable price.

• 8-Layer High-Current Density Board
• High-Voltage, High-Power Design
• Optimized Thermal Dissipation
• Integrated TVS Protection
• AM32 Collaboration

• Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
• Propellers: Up to 15" (over 7" requires good airflow)
• Rated Current: 70A (60 seconds), 90A (40 seconds)
• Weight: 19g (excluding cable and capacitors)
• ESC Software: AlkaMotors32 (AM32)
• ESC Target: AM32_TBS_12S_F421
• Peak Current: 120A (30 seconds)
• Mounting: See DXF drawing
• Size: 57.75mm x 29mm
• ESC Current Port: Yes
• Input: 3-12S LiPo
• BEC: No

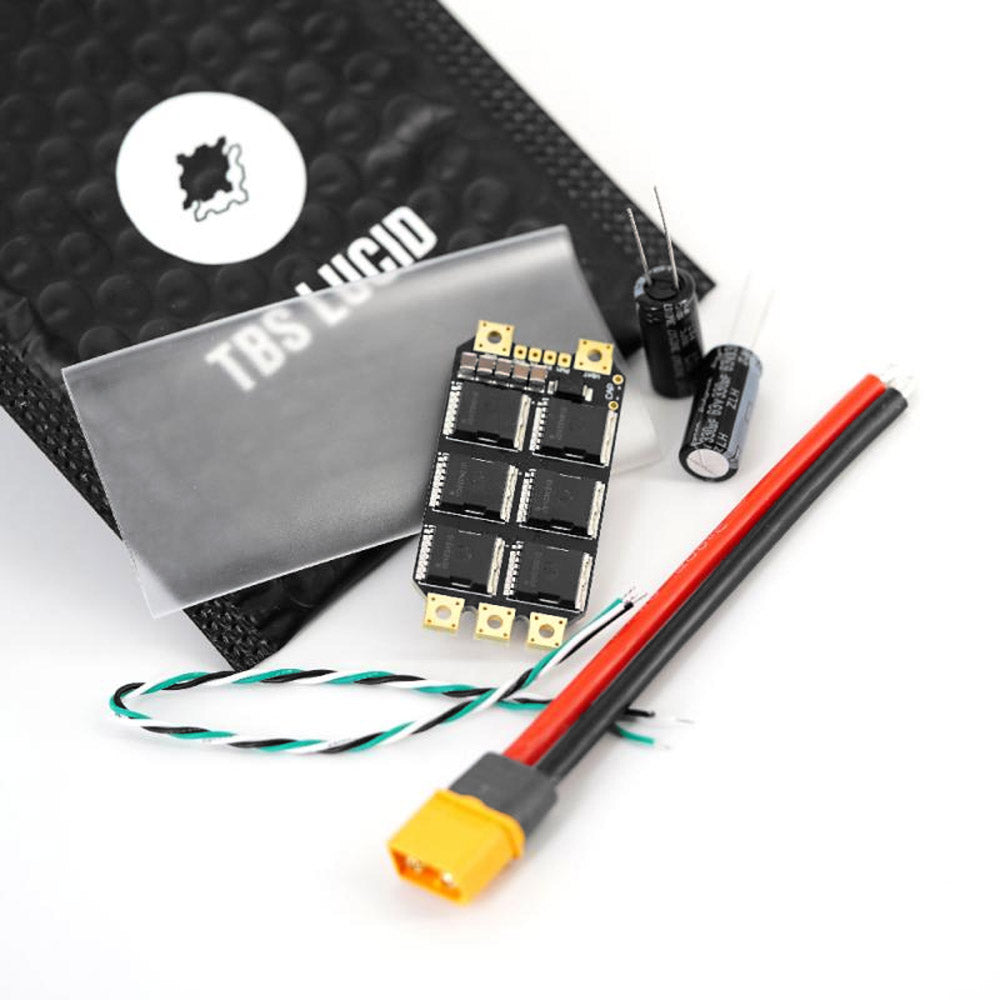

• 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
• 1x TBS Lucid 90A 3-12S AM32 ESC
• 2x 330uF 12S low-ESR Capacitor
• 1x shrink tube (transparent)
• 1x XT60 12 AWG wire
