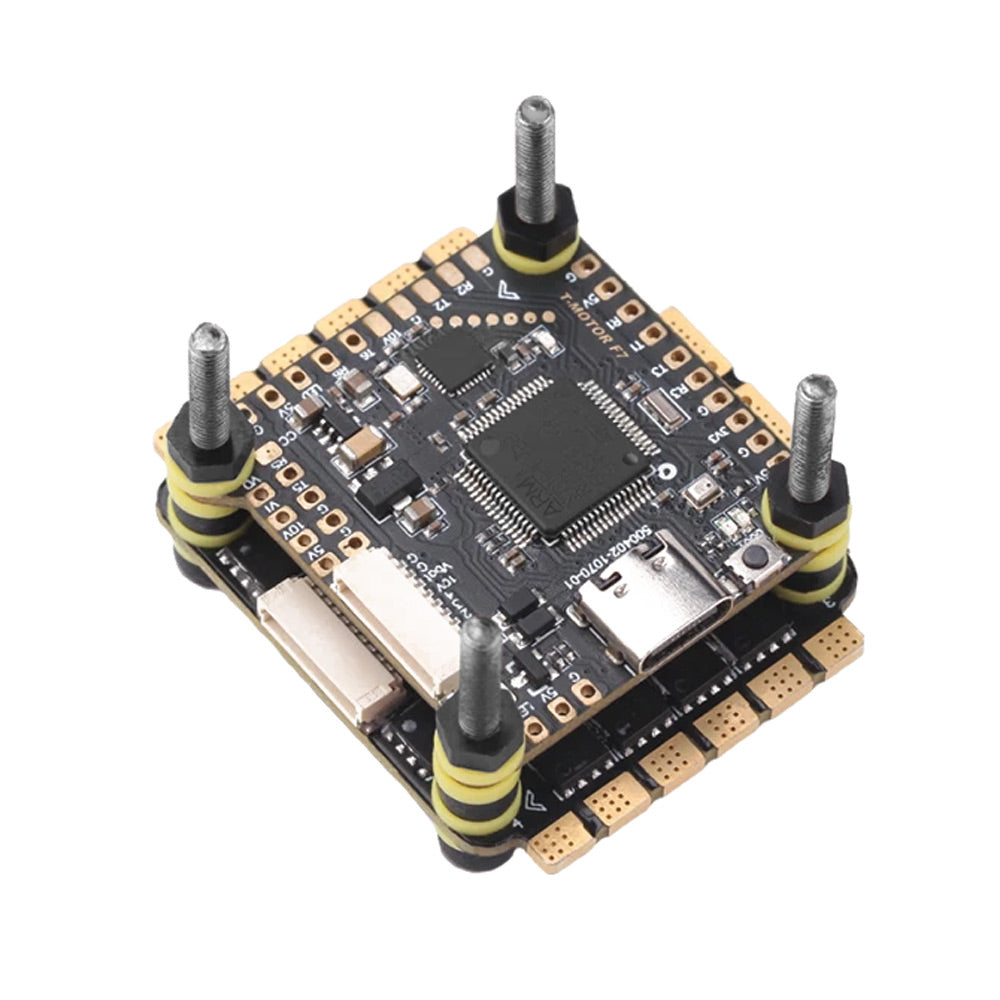

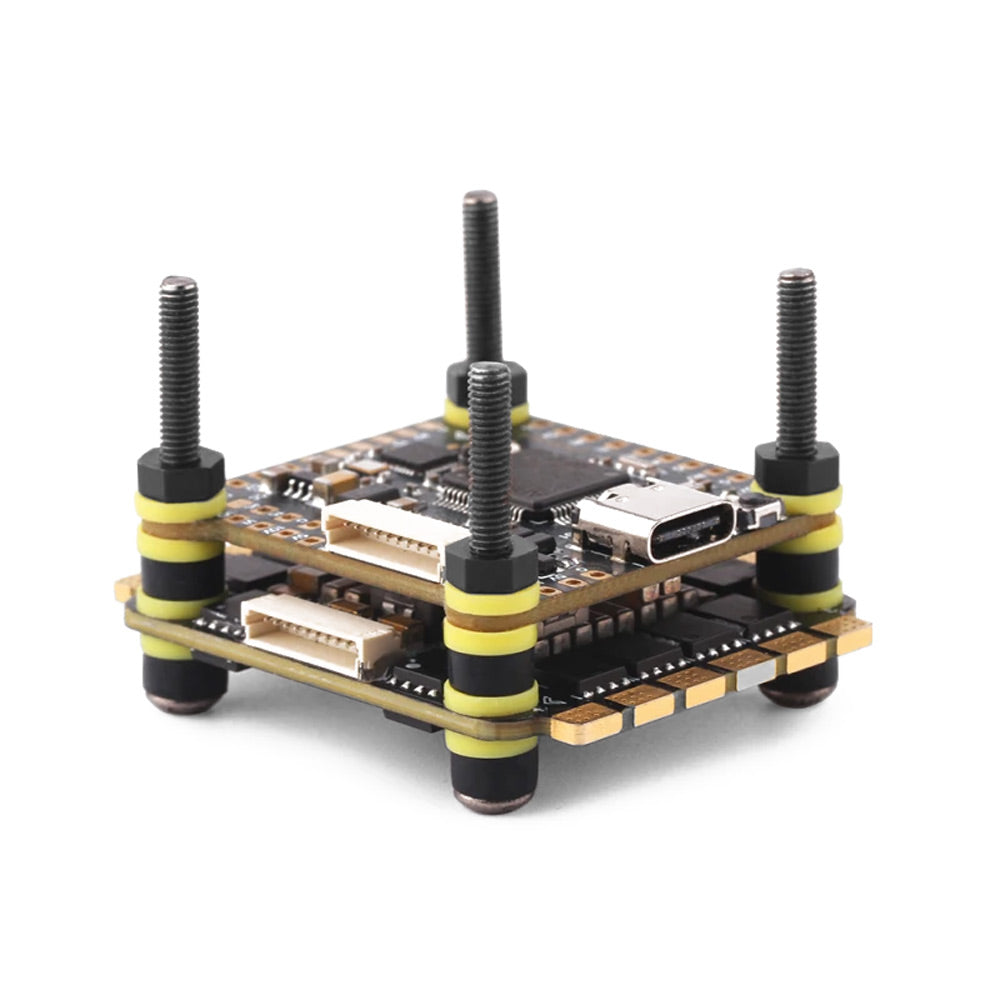

T-Motor VELOX F7 HD Stack - F7 HD FC + V45A V2 ESC

The T-Motor VELOX F7 HD Stack comes with the F7 HD FC and a V45A ESC. It has an integrated Bluetooth chip, so you can adjust FC parameters by directly connecting to the Speedy Bee App in your mobile device without the configuration required. In addition to analog VTX, the VELOX F7 FC support the Caddx Vista Digital HD Camera and DJI Air Unit.

VIDEO: T-MOTOR Velox F7 FC & V45A V2 ESC

Features

• Wide range of voltage input (Max 36V)
• Built-in 8Mb Flash for data logging
• Built-in OSD (AT7456)
• Built-in Bluetooth chip
• VELOX F7 FC HD
• MPU-6000 GYRO
• STM3F722RET6
• V45A V2 ESC
• 6 UARTS

Specifications

VELOX F7 FC HD

• BEC: 5V/3A, 10V (ESC Input)
• Firmware: TMotor F7 V2
• MCU: STM3F722RET6
• Size (mm): 37x37x6.5
• Flash: 8Mb on board
• Input: 3-6 Cell Lipo
• Gyro: MPU-6000
• OSD: AT7456
• Weight (g):7g

V45A V2 ESC

• Betaflight amperage meter scale : 170
• Mounting Hole: 30.5*30.5mm
• Telemetering: Support
• Firmware: BLHELI32
• Input Voltage: 3-6S
• Weight: 24.3g

Includes

• 1x T-Motor VELOX F7 HD Stack - F7 HD FC + V45A V2 ESC
