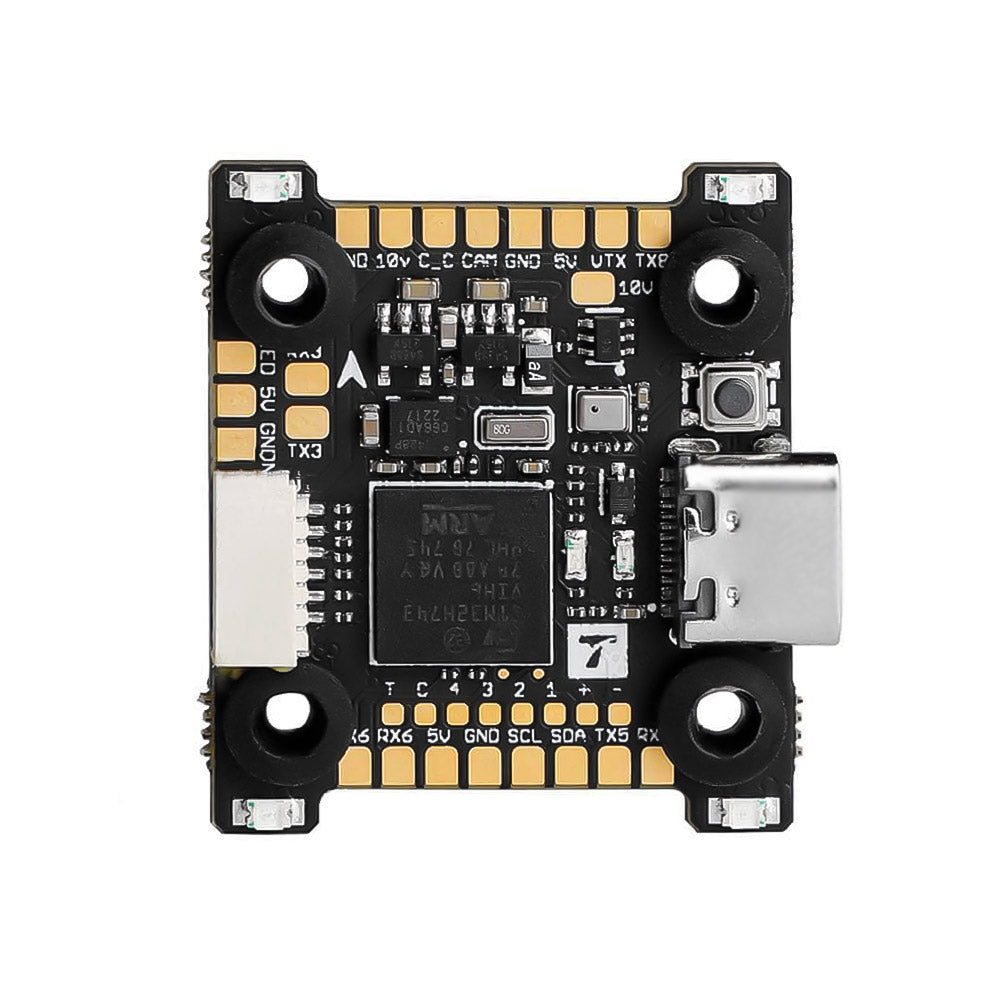

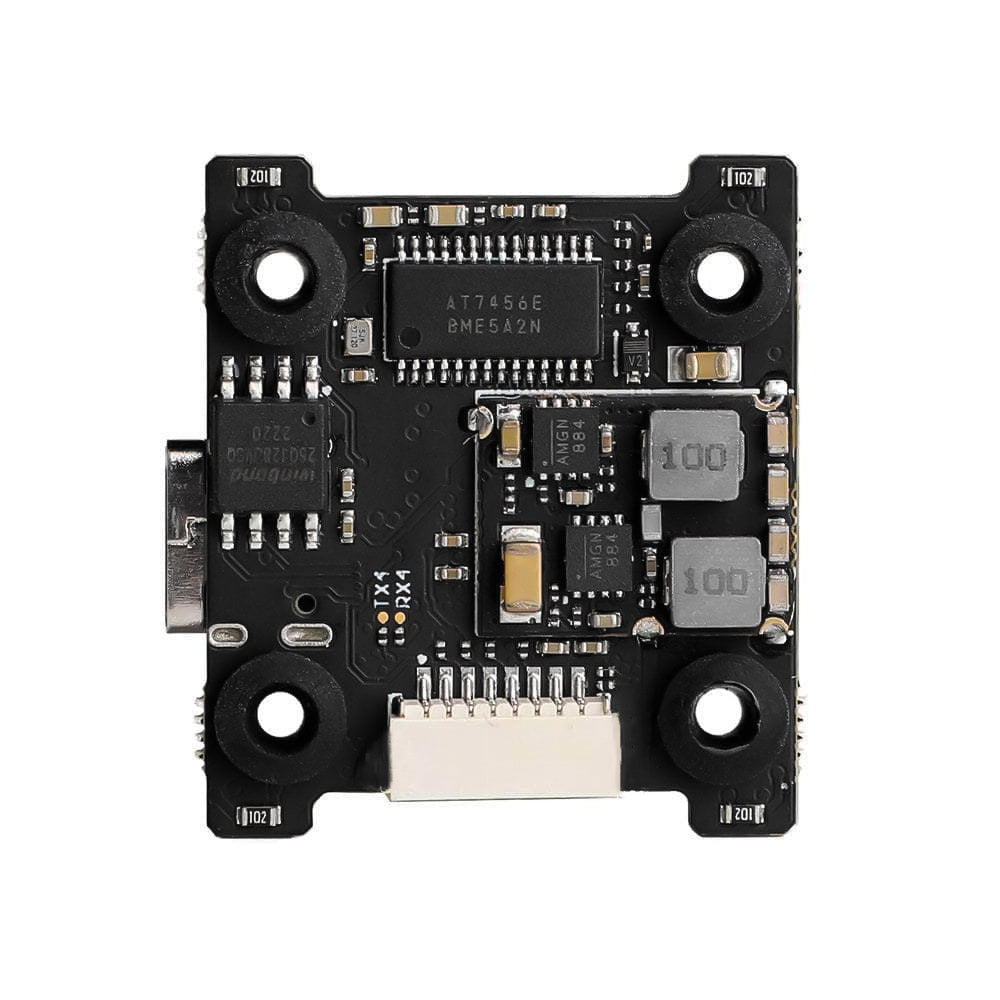

T-Motor H7 Mini Flight Controller (HD + Analog) - 20x20

The T-Motor H7 Mini Flight Controller is compact and feature-packed, designed for various drone applications. With a 20x20mm/4mm mounting pattern, dual voltage BEC supporting HD and Analog, and a gyroscope with independent power supply to prevent interference, it is an ideal choice for 5" FPV drone racing, 3.5" cinematic, and 5" freestyle drones. Additionally, it features an integrated DPS310 barometer and 16MB of flash storage for enhanced functionality and performance.

Choose a Gyro:

• ICM42688P
• BMI270

VIDEO: H7 Mini FC

• Gyroscope with an independent power supply to avoid interference from other electrical equipment
• Integrated DPS310 barometer and 16MB flash storage for improved functionality and performance.
• Dual voltage BEC supporting HD and Analog for versatile compatibility
• 20x20mm/4mm mounting pattern for easy installation
• Compact and feature-packed flight controller

• Mounting Pattern: 20x20mm/4mm
• Gyro: ICM42688P or BMI270
• Dimesnions: 27x30.8mm
• BEC: 5V/2A, 10V/1.5A
• Barometer: DPS310
• MCU: STM32H743
• Black box: 16MB
• Interface: 7

• MINI H7 Manual

• 1x T-Motor H7 Mini Flight Controller (HD + Analog) - 20x20 (Choose Gyro)
• 2x FC Connecting Cables
• 1x QCPass Card
• 2x Sticker Set
