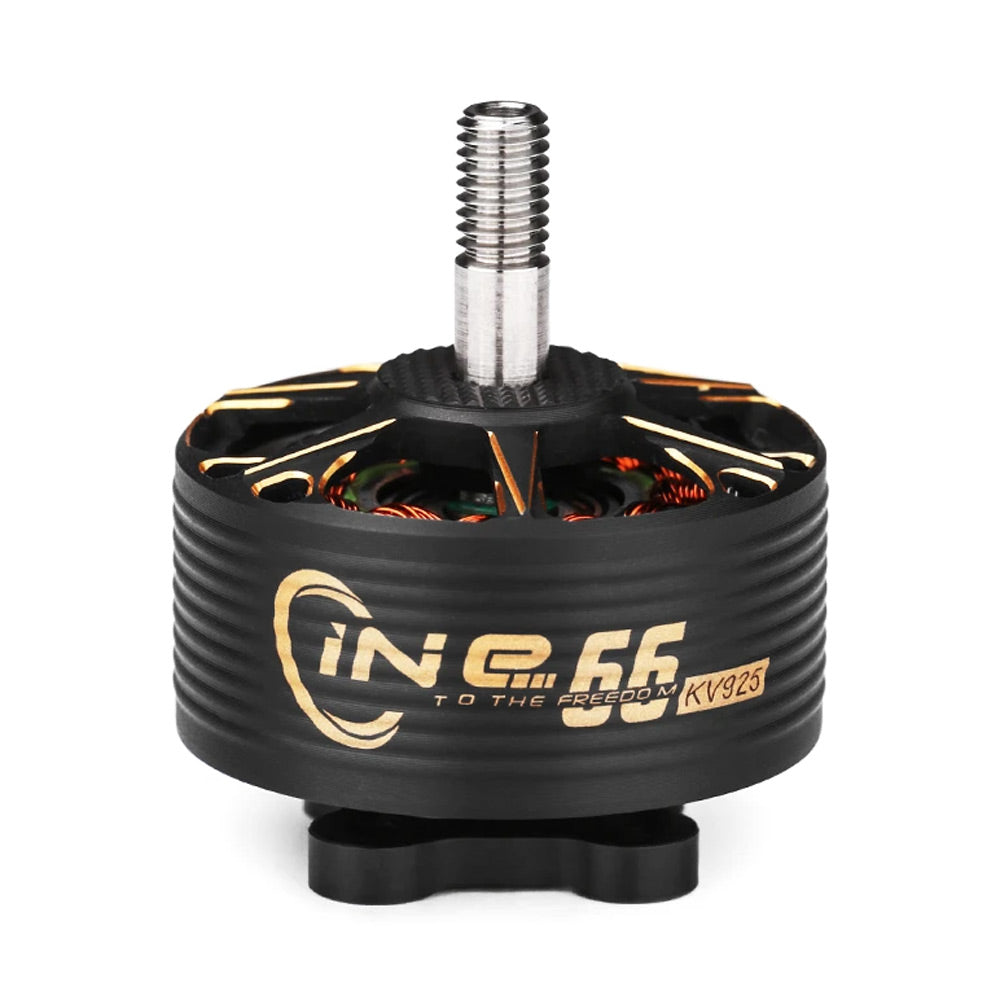

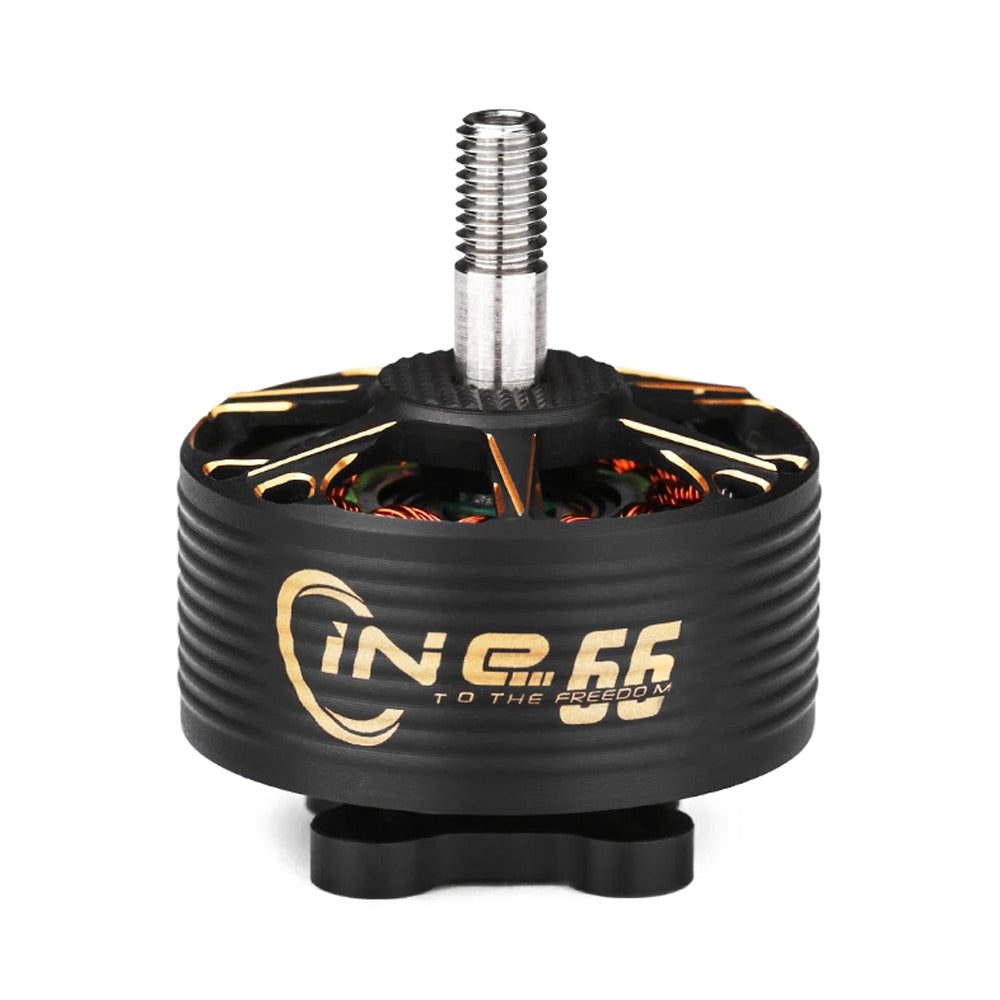

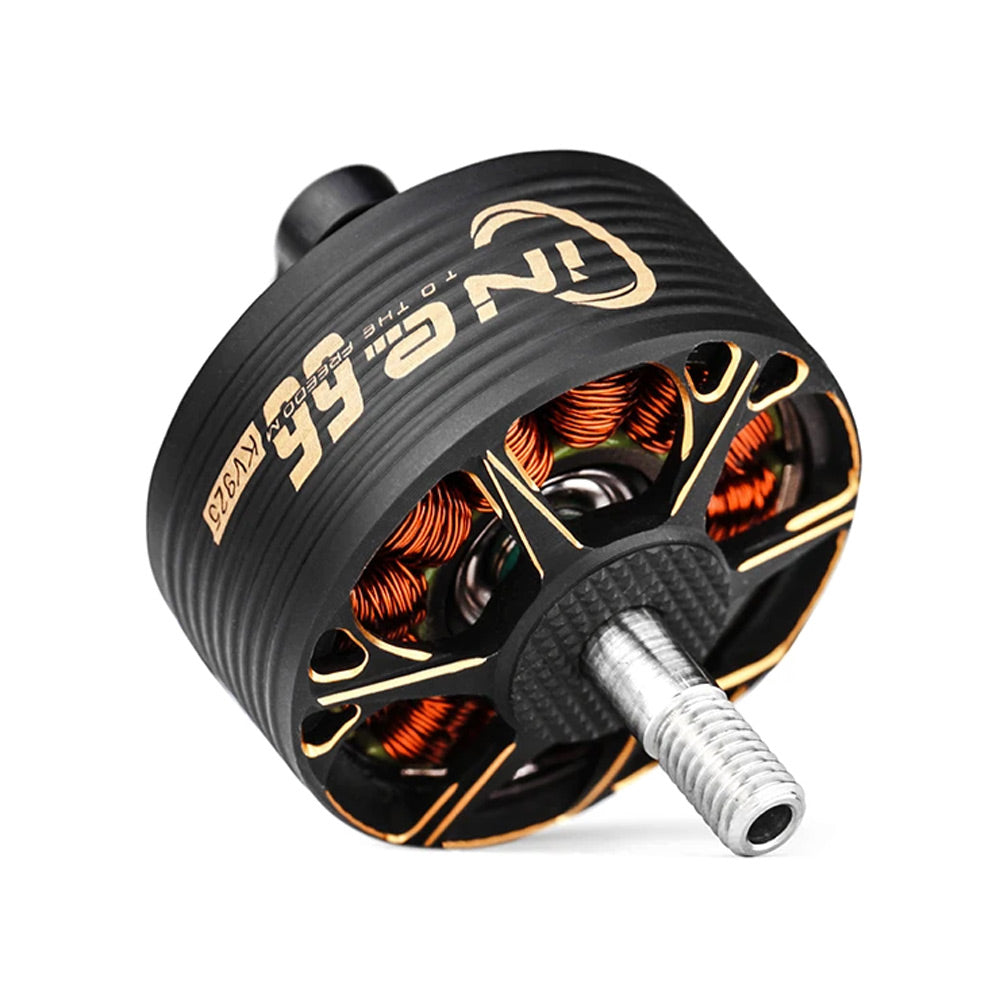

T-Motor CINE Series Cine66 2812 Motor - 925KV/1155KV

The new CINE Series from T-motor is one of T-Motor's greatest additions to the Cinewhoop class of motors. The Cine66 2812 cinematic motors have a high-quality design for safer chemical propulsion. The Cine66 provides stronger power for an 8-9" X8 cinematic build.

VIDEO: T-MOTOR CINE66

Features

• Unibell structure with double-upgrade on safety and appearance.
• Wave-shaped appearance enhances heat dissipation
• Provides smooth cinematic flights
• Black and Gold in Color
• King Matte black style
• 3.3kg maximum thrust
• High-Quality Design
• Manual Winding
• NMB Bearings

Specifications

1155KV

• Burst current consumption: 54.5A
• Weight: 76.7g (Including Cables)
• Shaft Diameter: 4mm (Inside)
• Internal Resistance: 47mohm
• Max. Power (60s): 1320W
• Diameter: 34.4*39.95mm
• Idle Current (10V): 1.41A
• Cable: 250mm 18AWG
• Configuration: 12N14P
• Voltage: 5-6S
• Stator: 2812
• KV: 1155

925KV

• Burst current consumption: 50.5A
• Weight: 76.4g (Including Cables)
• Shaft Diameter: 4mm (Inside)
• Internal Resistance: 69mohm
• Max. Power (60s): 1237W
• Diameter: 34.4*39.95mm
• Idle Current (10V): 1.05A
• Cable: 250mm 18AWG
• Configuration: 12N14P
• Voltage: 5-6S
• Stator: 2812
• KV: 925

Includes

• 1x T-Motor CINE Series Cine66 2812 Motor (925KV or 1155KV options)
• 1x Hardware Pack
