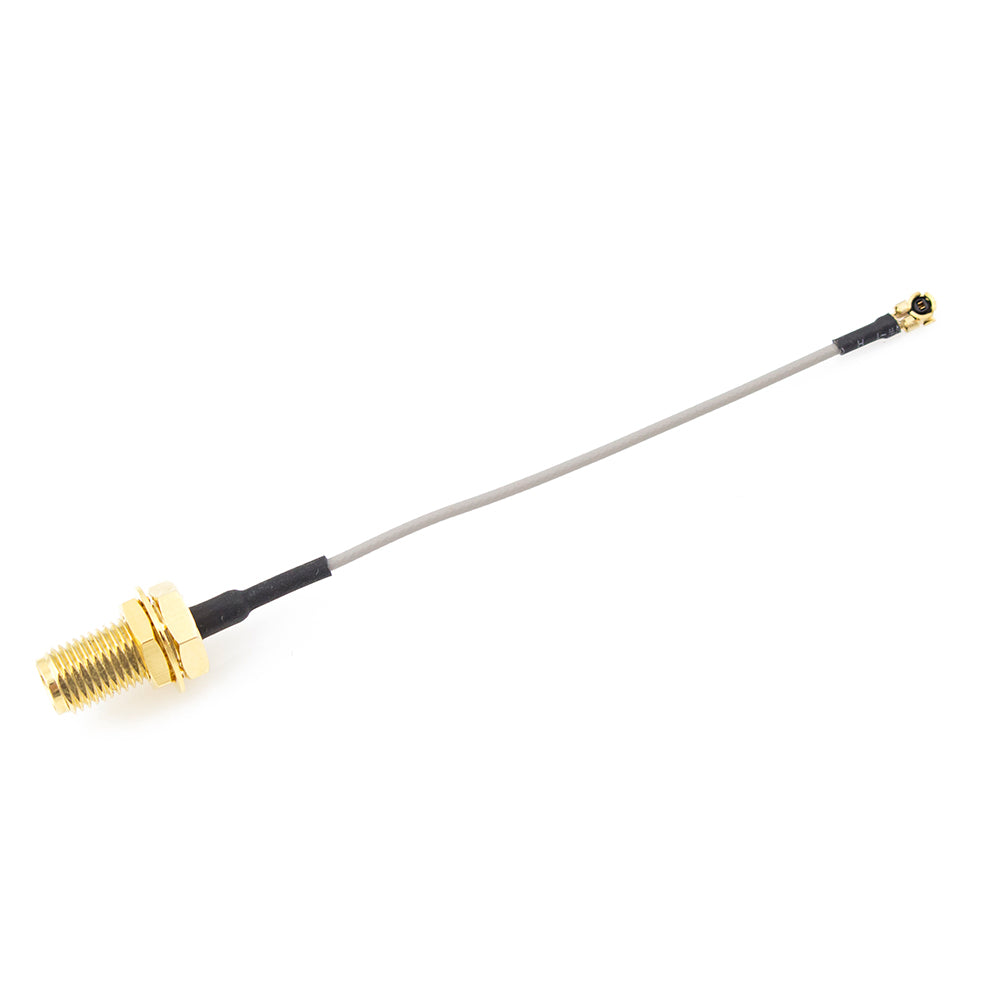

RP-SMA to U.FL Cable - 70mm

This flexible connector cable interfaces UFL RF connectors to RP-SMA 2.4 Ghz antennas. The RP-SMA connector has a center pin, and has a backing nut for bulkhead installations.

Specifications

• 50 Ohm Coaxial cable for data transfer
• Gold-plated contacts for best signal transmission
• Stranded center conductor to increase the flexibility
• Insulation: PTFE (Teflon)
• Jacket Type: FEP (Fluorinated Ethylene-Propylene)
• Loss @ 100 MHz: 0.262 dB/m
• Loss @ 400 MHz: 0.531 dB/m
