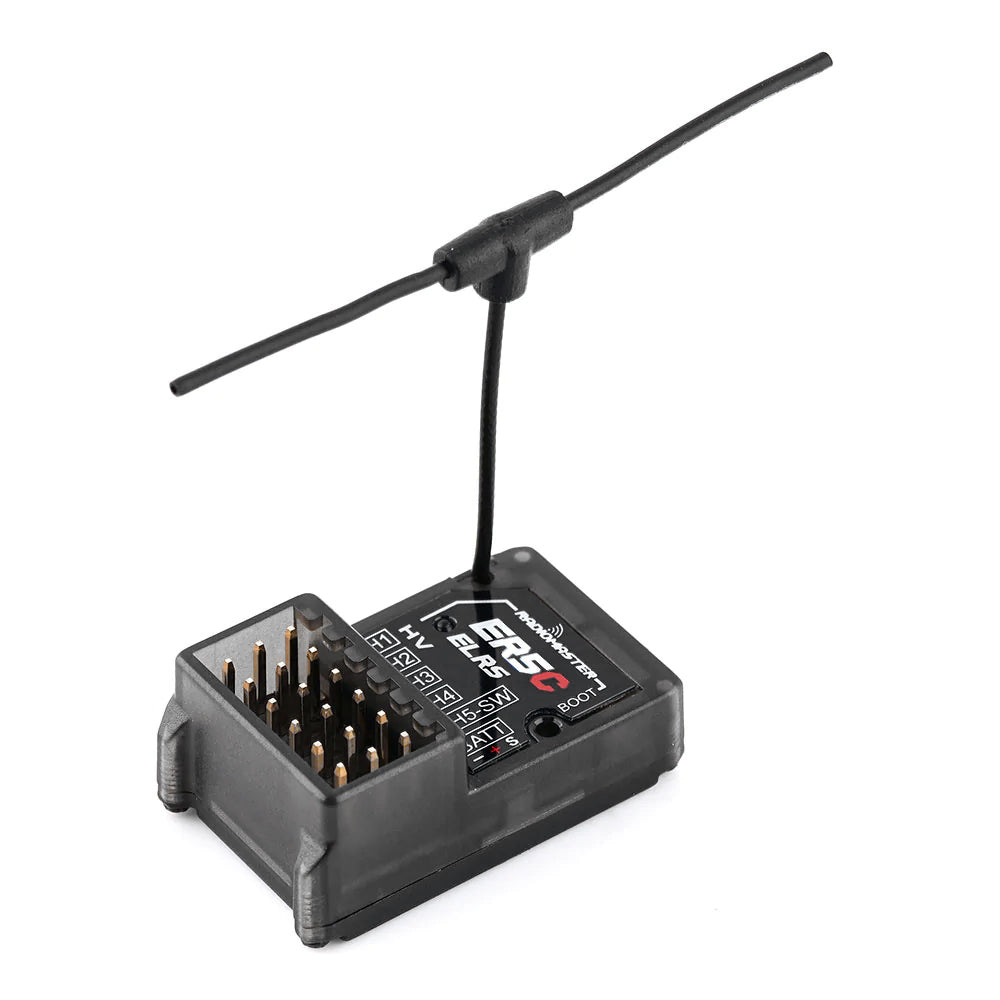

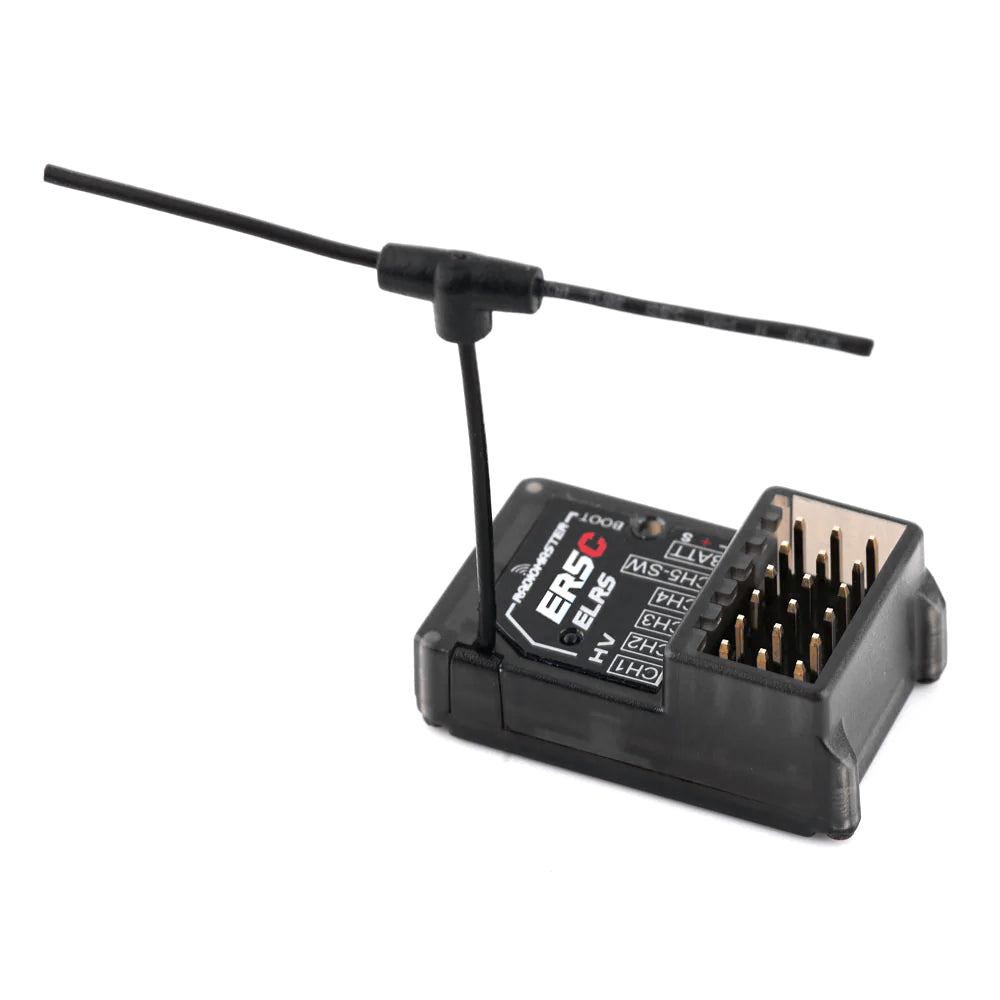

RadioMaster ER5C ExpressLRS PWM Receiver

The RadioMaster ER5C is an ExpressLRS PWM Receiver that supports 8.4HV servos and accessories.

VIDEO: Radiomaster ER5C & ER5A ELRS PWM Receivers

• Compact size, easy to install. Perfect for Surface, marine, and air R/C applications.
• Supports 4 proportional and 1 switch channel (ExpressLRS 2.x)
• Supports 5 proportional channels (ExpressLRS 3.x)
• Supports 8.4V HV servos and accessories
• Robust, injection-molded receiver casing
• Fast response speeds, incredible range

• Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM
• Antenna type: high sensitivity T-shape antenna
• Wireless Protocol: ELRS 2.0 pre-installed
• Item: ER5C 2.4GHz Receiver
• Power supply: DC 4.5-8.4V
• Size: 37*19*13mm
• Weight: 6.6 grams

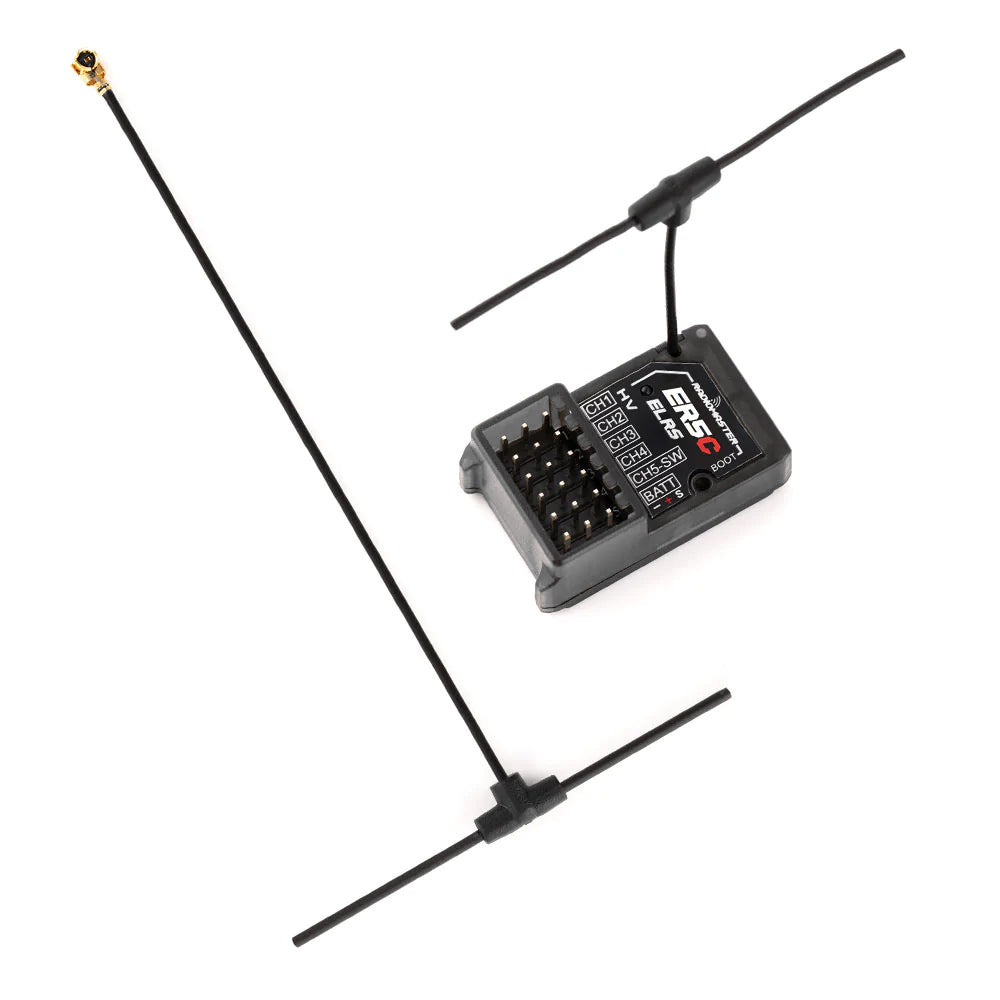

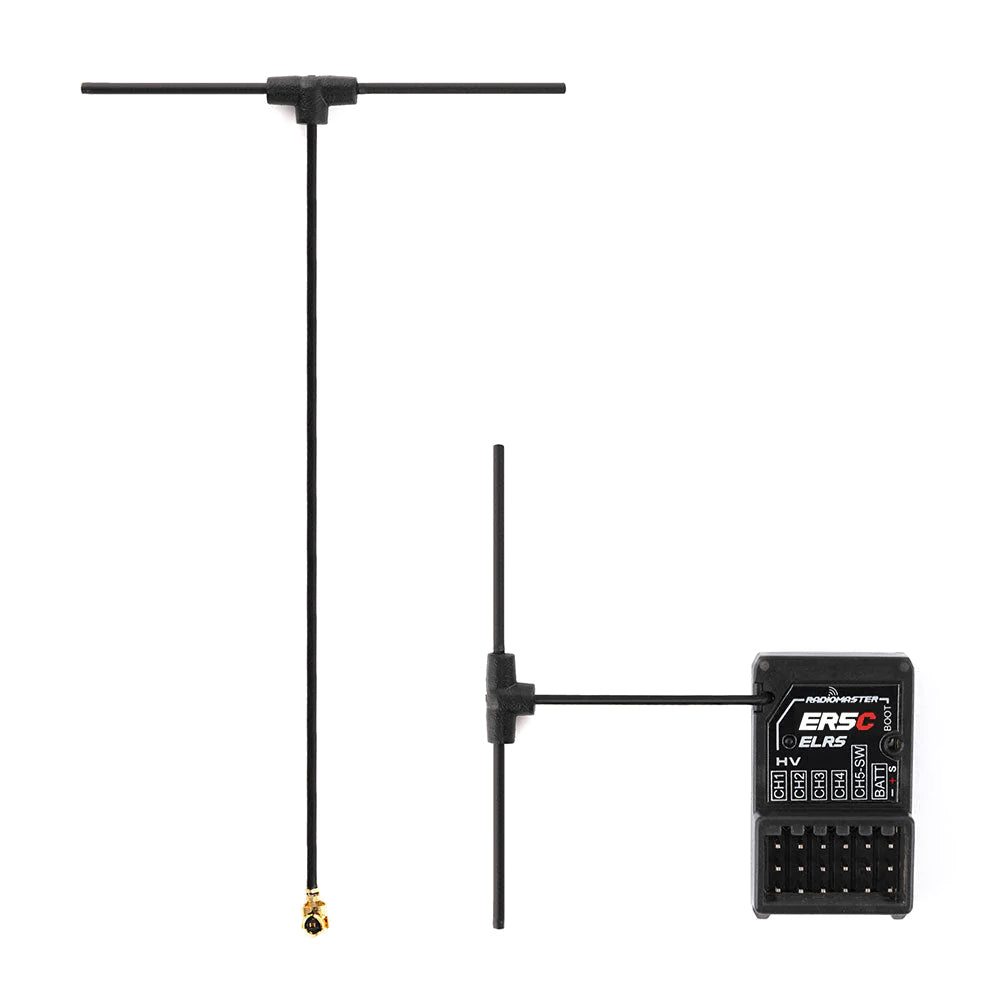

• 1x RadioMaster ER5C ELRS PWM Receiver
• 1x Spare Long Antenna
