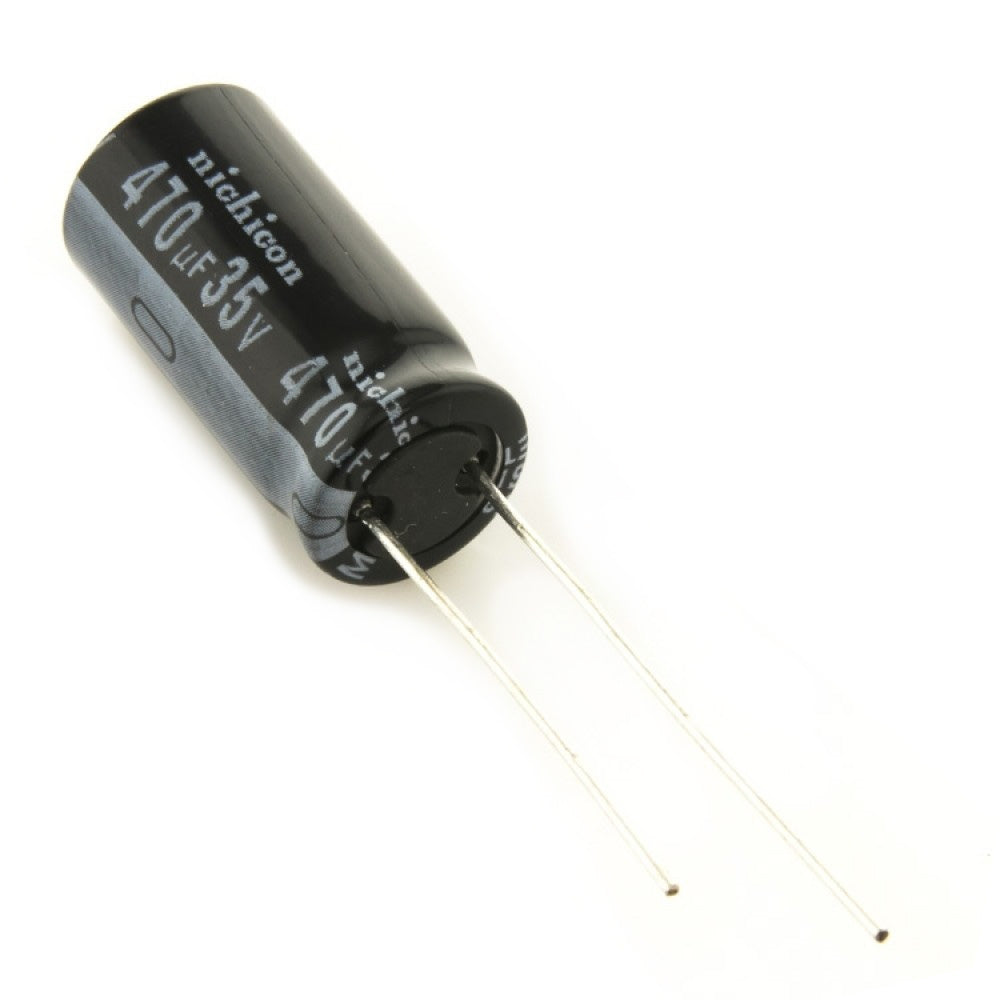

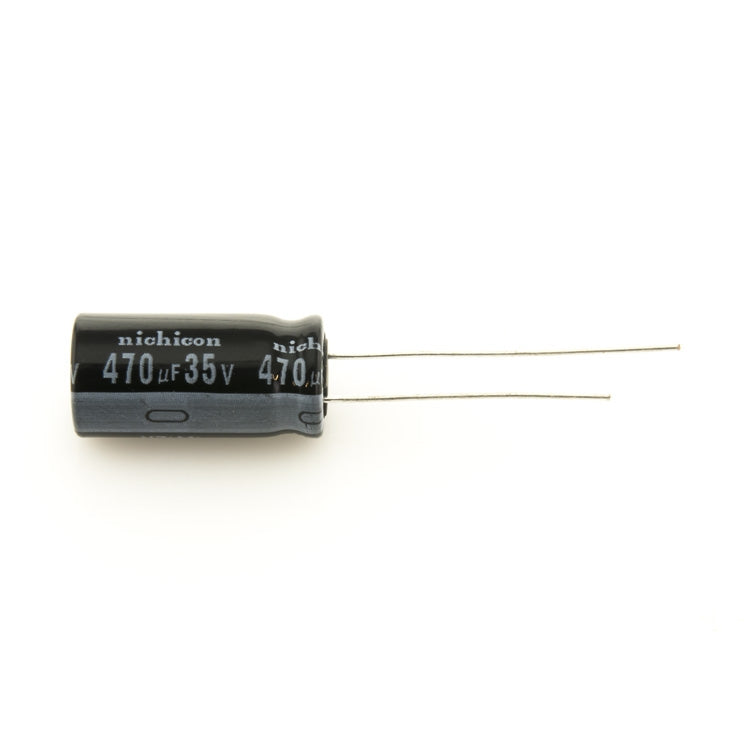

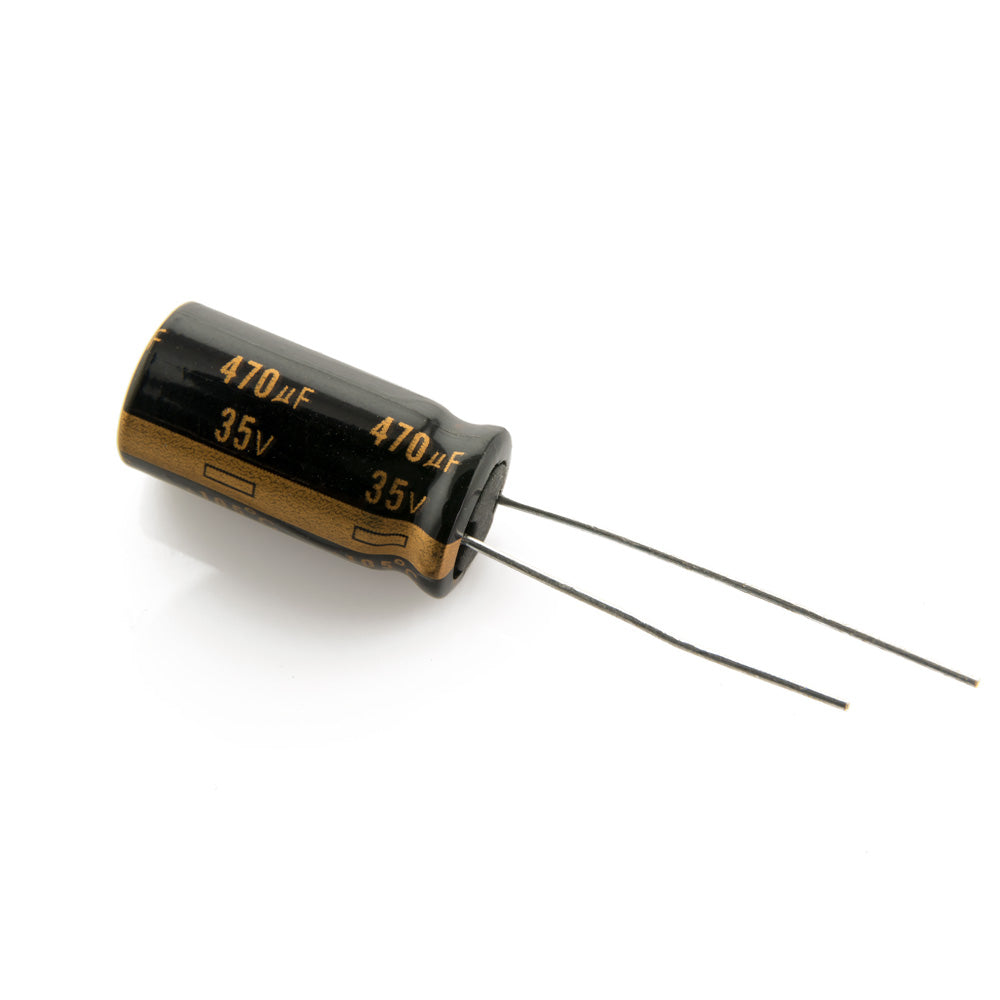

Panasonic 35V 470uF LOW ESR Capacitor

Choose this electrolytic aluminum capacitor for its relatively low ESR and great performance. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 470uF. It has a tolerance of 20%. Its leakage current is 164.5@2Min μA. This product is 20 mm tall with a diameter of 10 mm.

Specifications

• Brand/Series: FM Series Capacitance: 470 μF
• Case Size: 0.394 In. Dia. x 0.787 In. L (10 mm Dia. x 20 mm L)
• Configuration: Radial, Can
• Current, Ripple: 2.18 A
• Diameter, Lead: 0.6 mm
• Dimensions: 0.394" x 0.787" (10 x 20mm) Dia. x L
• ESR: 0.019 Ohm
• Lead Spacing: 0.197 In. (5.00 mm) mm
• Life: 5000 Hours Material, Element:Aluminum Electrolytic
• Mounting Type: PCB
• Packaging: Bulk
• Series: FM Series
• Temperature, Operating, Maximum: 105 Deg. C
• Temperature, Operating, Minimum: -40 Deg. C
• Termination: Through-hole
• Tolerance: -20, +20 %
• Voltage Rating: 35 VDC

Includes

• 1x Panasonic 35V 470uF LOW ESR Capacitor
