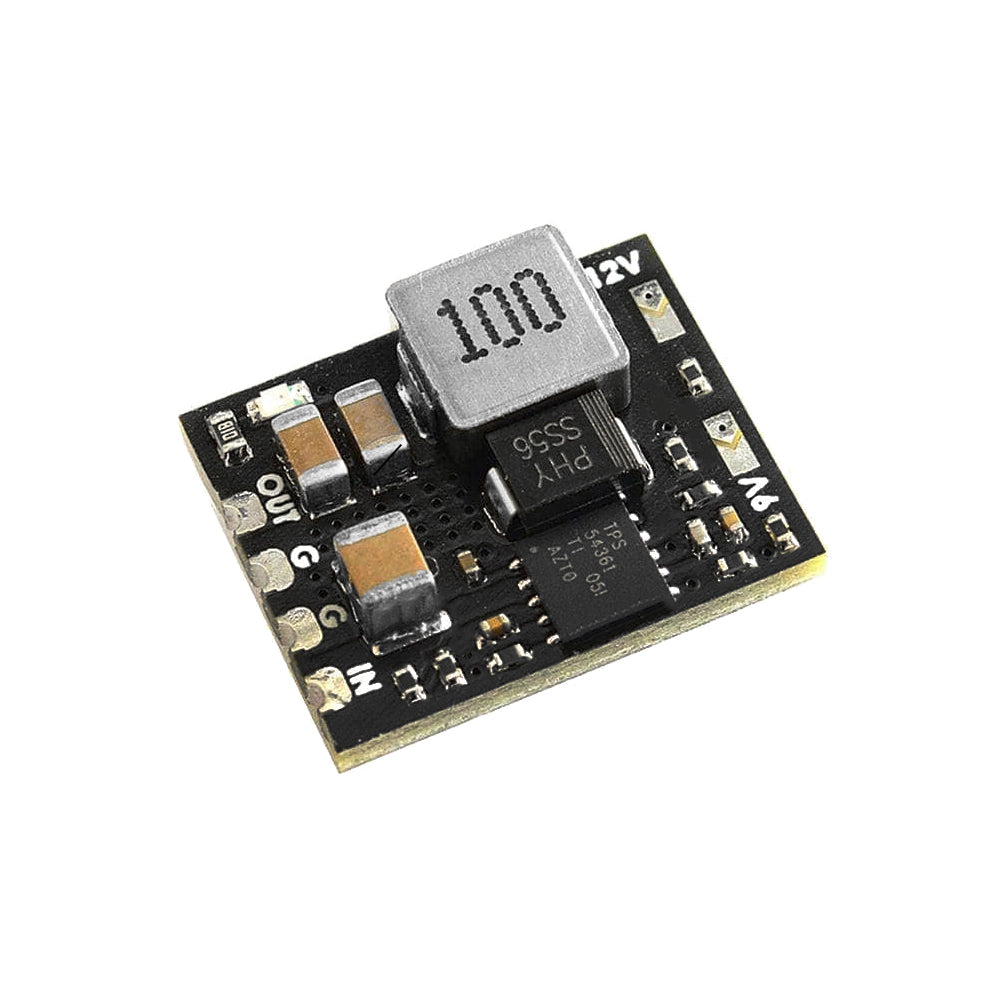

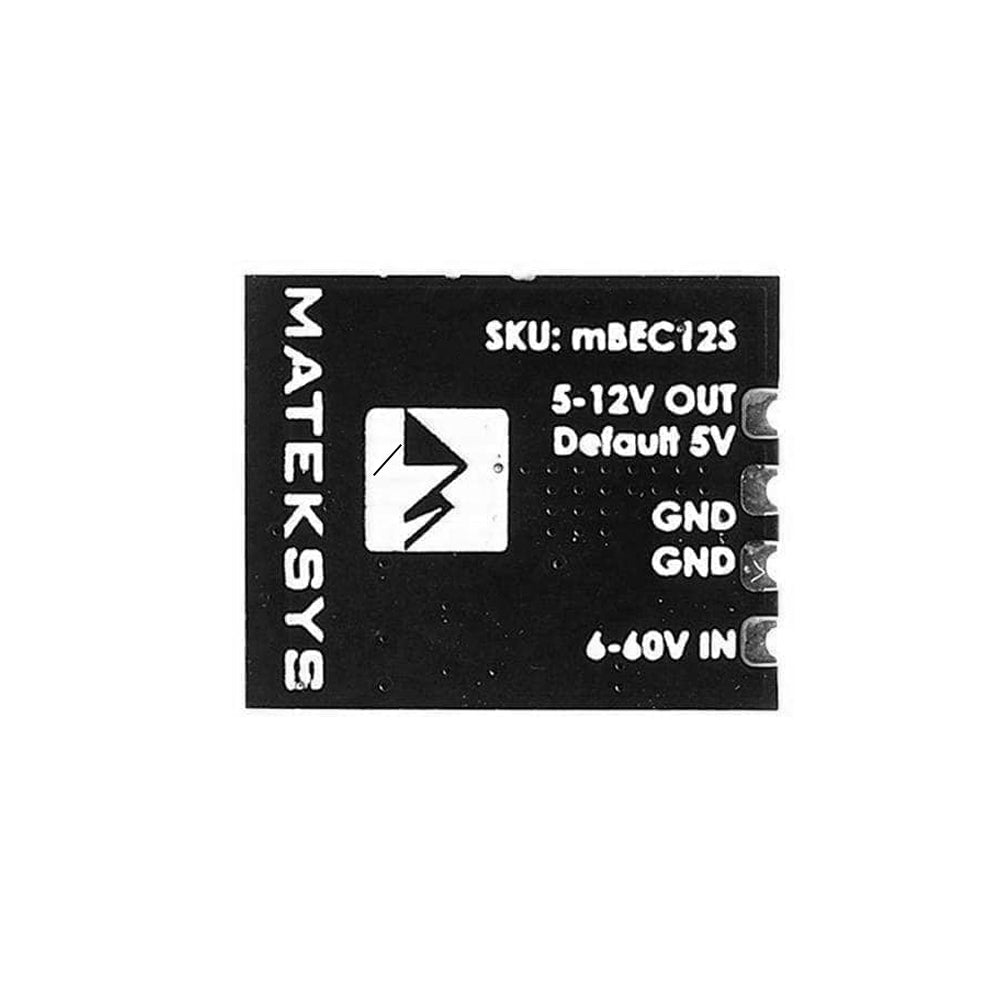

MATEKSYS Micro BEC - 6-60V to 5V/9V/12V

The MATEKSYS Micro BEC converts 6-60V to 5V, 9V, or 12V with a standby current of <5mA.

• Output Short-circuit tolerant (3 seconds/minute)
• Wide 6V to 60V Operating Input Range
• Converts 6-60V to 5V, 9V, or 12V
• OCP Protection and Hiccup
• Thermal Shutdown

• Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
• Continuous load current: Depends on input voltage and heat dissipation.
• Voltage Out: 5V, 9V or 12V Adj. The default is 5V.
• Size & Weight: 18x15x4.5mm, 2g
• Start-up Voltage >=6.7V
• Standby current: <5mA
• Pins distance: 2.54mm

IMPORTANT NOTES

• No protection for reversed input polarity

• 1x MATEKSYS Micro BEC 6-60V to 5V/9V/12V
