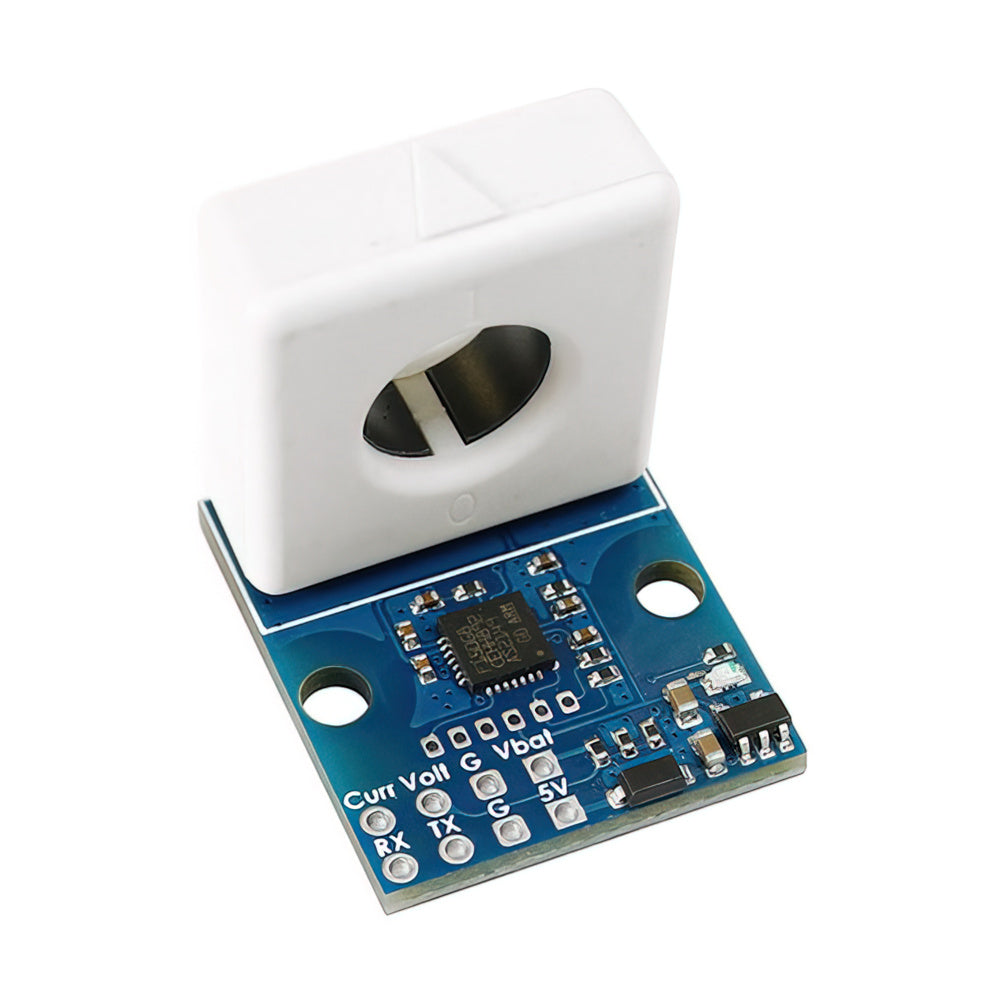

MATEKSYS Hall Effect Current Sensor - 150A

The MATEKSYS Hall Effect Current Sensor is a 150A sensor with factory calibrated Offset and Sensitivity.

• No voltage drop and heat on current sensor components
• Offset and Sensitivity are calibrated in factory
• 0~150A DC Continuous current rating
• 17ma Power Consumption
• Hall effect current sensor

• VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
• Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
• Voltage offset error at zero current: +-10mV
• Continuous current rating: 0~150A DC
• Operating Temperatures: -30~80 °C
• Current Output Voltage Error: 5%
• Power Consumption: 17mA
• Dimensions: 23x20x23mm
• Weight: 7g

SOLDERING PADS

• 5V: power supply for HCS-150A board, support 4~13V IN, 17mA
• TX/RX: for firmware update and configure (to be supported)
• Vbat: for voltage sense, support 0~69V IN
• Current: Current signal, 0~3.3V out
• Volt: = 1/21 Vbat, 0~3.3V out
• G: GND

IMPORTANT NOTES

• Mount Hall sensor far from iron and magnetic materials.

• Step File: HCS-150A_step.zip

• 1x MATEKSYS Hall Effect Current Sensor - 150A
