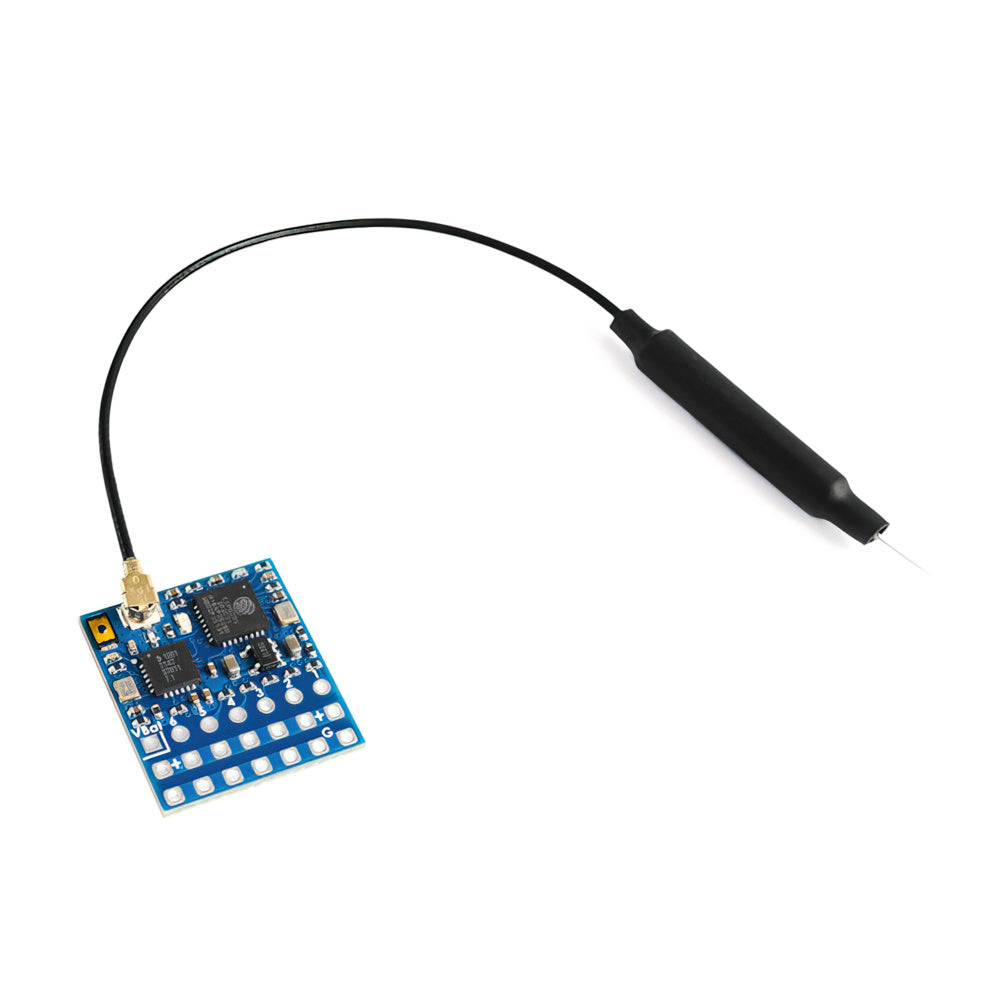

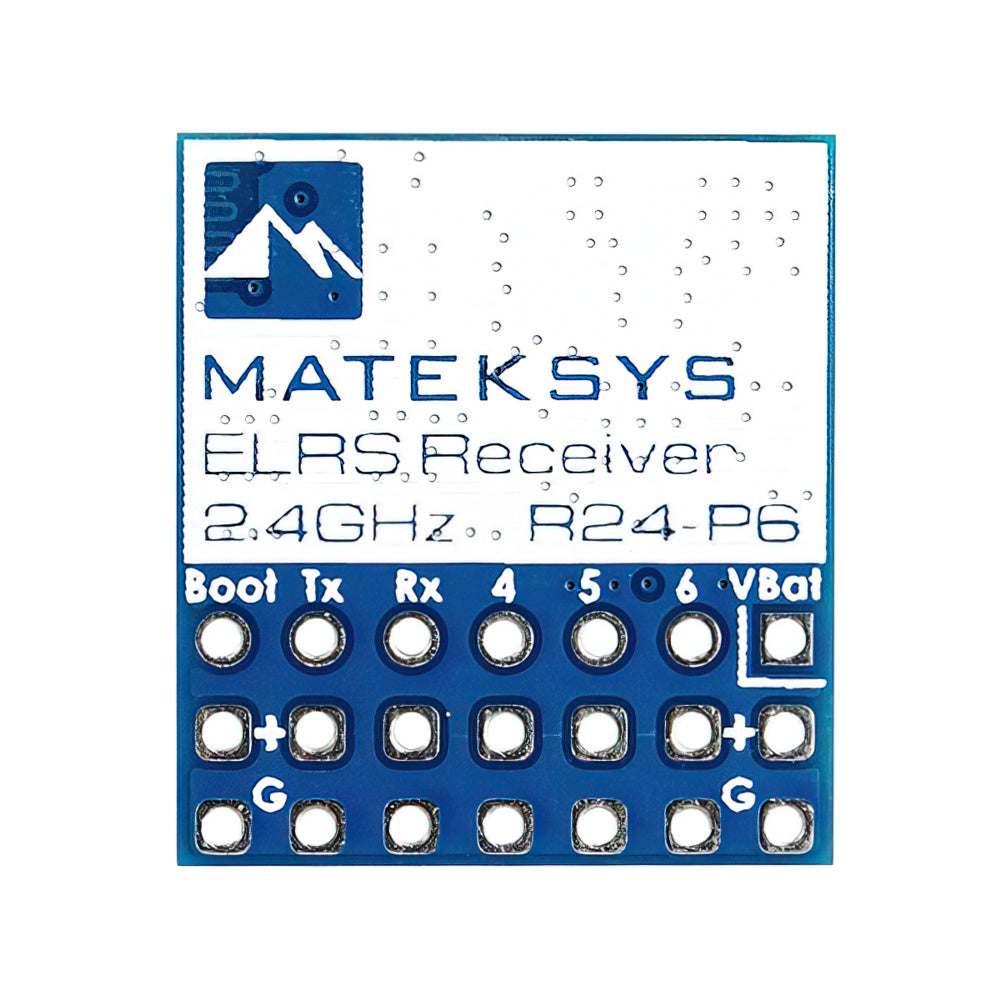

MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6

The MATEKSYS ELRS-R24-P6 is a PWM receiver with a 2.4GHz frequency and ExpressLRS 3.0 firmware.

• ExpressLRS 3.0 firmware
• 2.4GHz Frequency
• 6 PWM Outputs

• Power dissipation: 45mA(binding), 85mA(wifi mode)
• RF Frequency: 2.4GHz (2400~2480MHz)
• Voltage sense: 34V Max. @ "VBat" pad
• Input voltage: 4~9V DC @ "+" pad
• Support 2~8S VBat voltage sense
• Antenna connector: IPEX MHF 1
• Receiver output protocol: PWM
• Telemetry power: 12dbm
• PCB size: 20mm x 18mm
• Weight: 2g w/ antenna

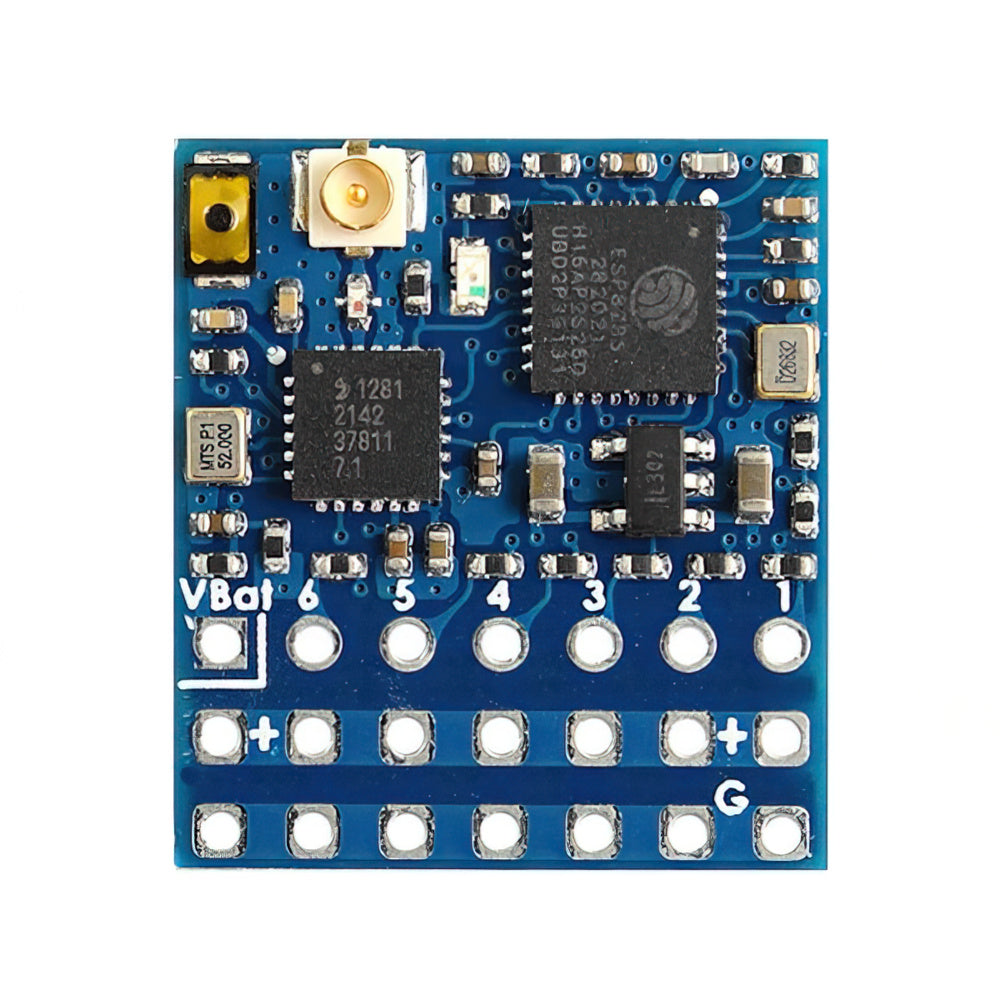

• ESP8285, SX1281
• PWM outputs: 6

• ExpressLRS Wiki for PWM
• Flashing via Wifi

• 1x MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
• 1x IPEX MHF1 Antennas. 15cm
• 1x Dupont 2.54 pins
