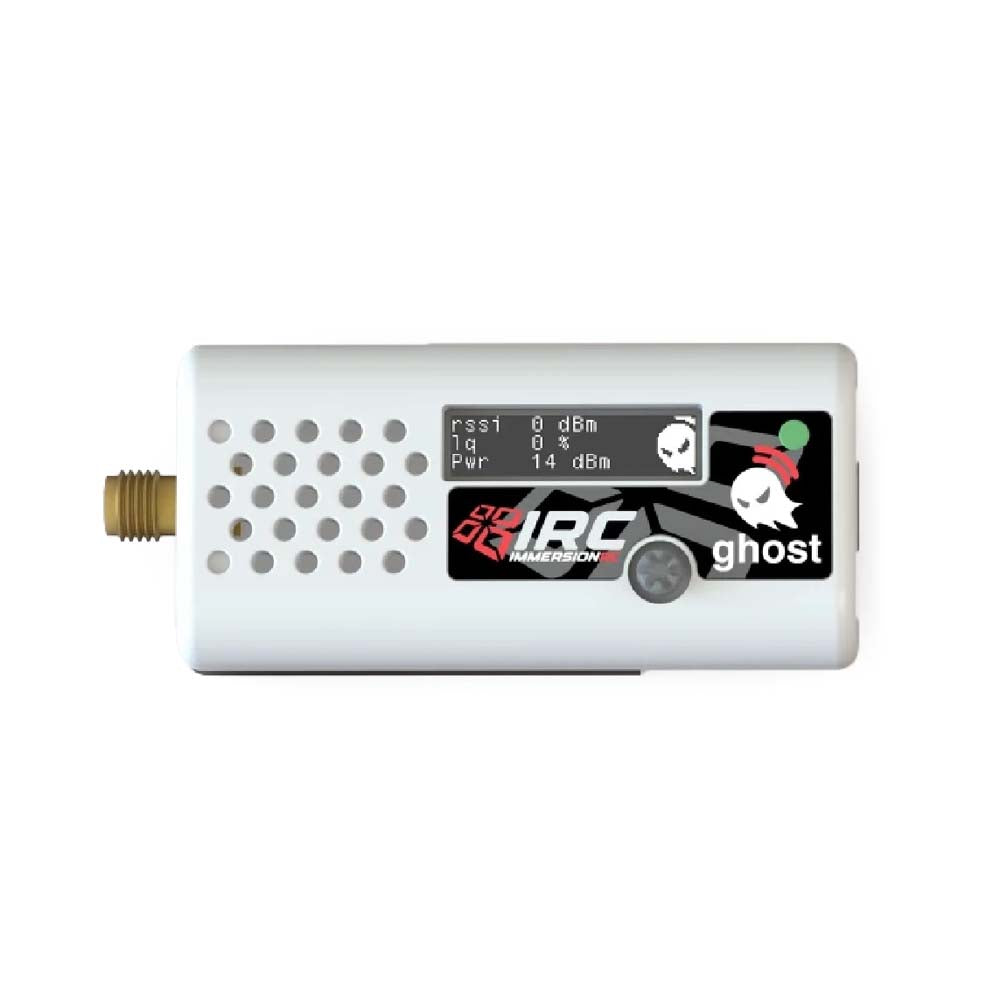

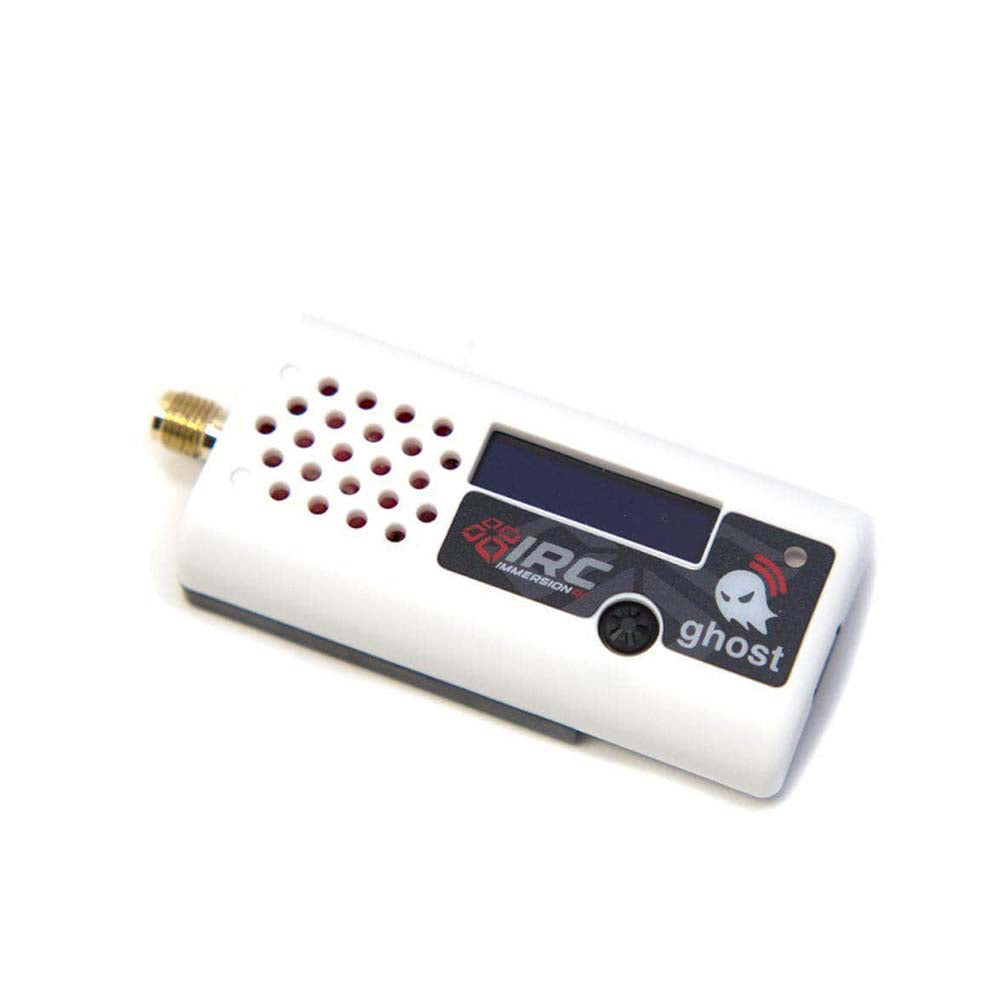

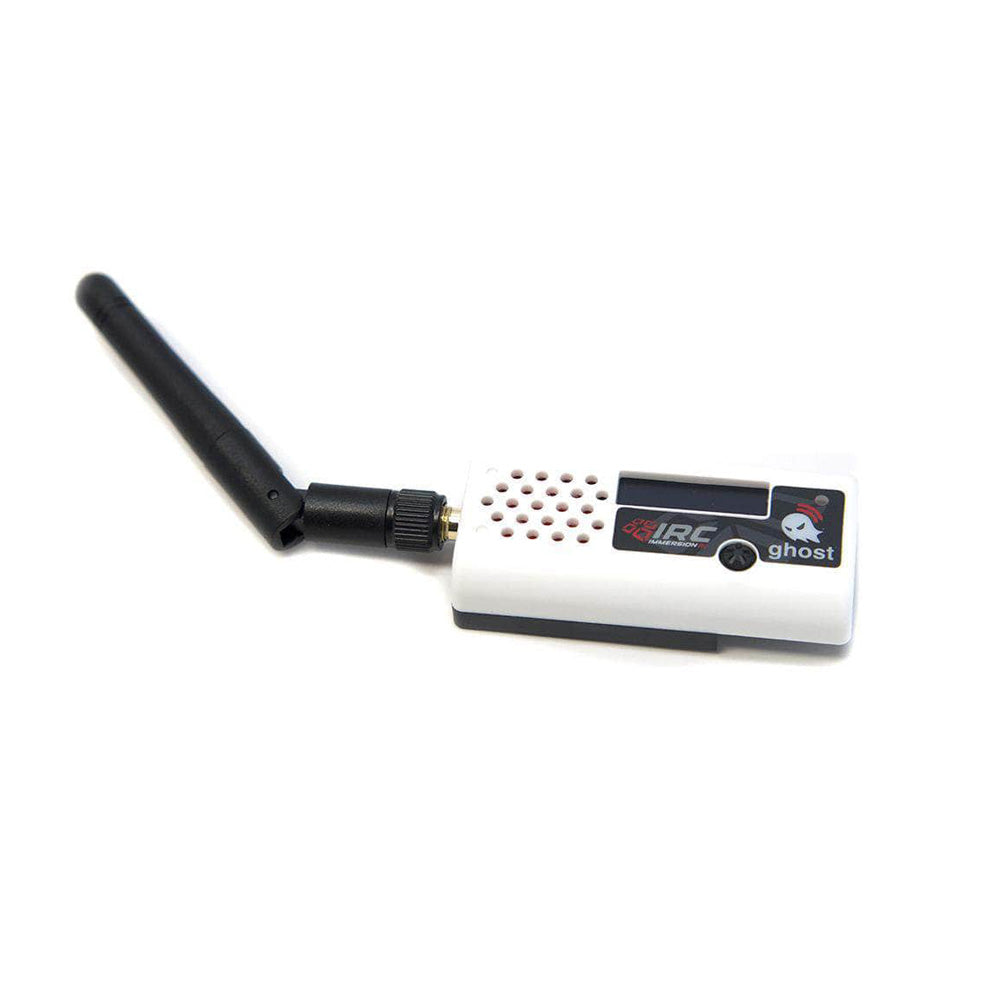

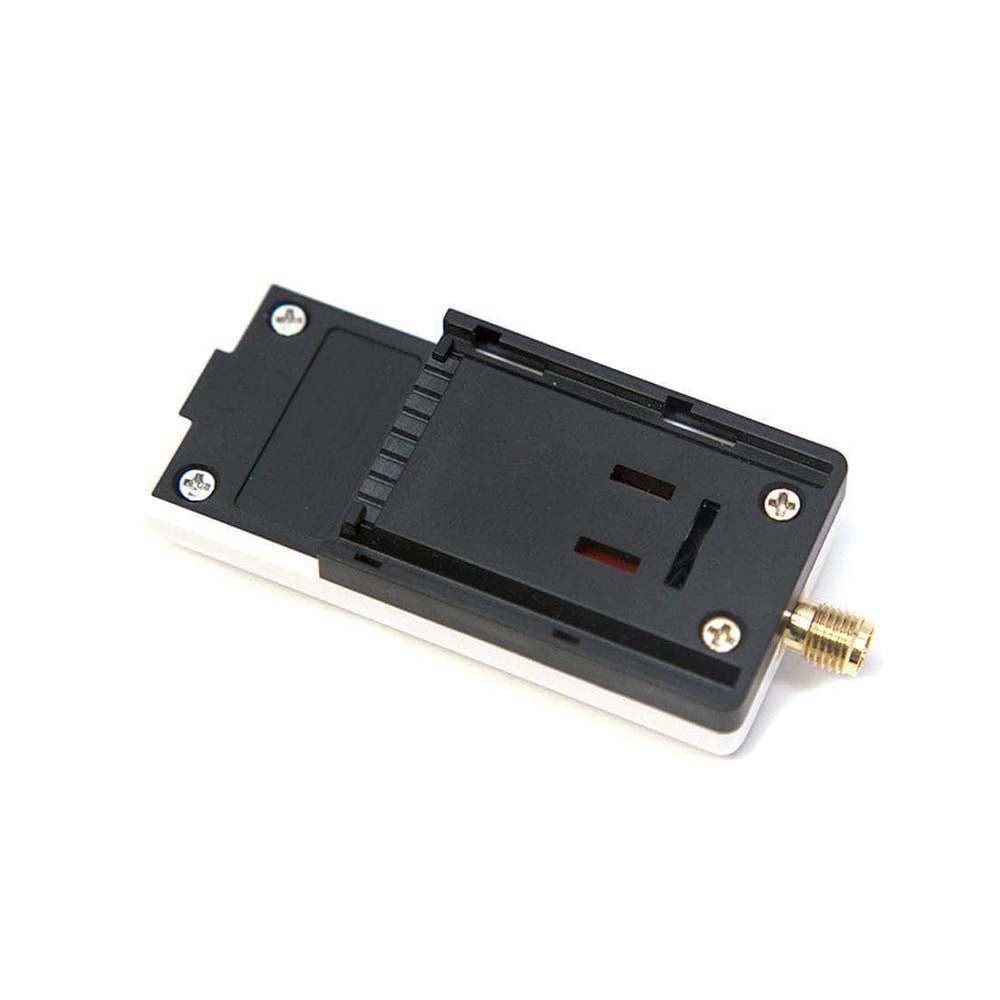

The ImmersionRC Ghost Lite Next Gen 2.4GHz RC Transmitter Module is designed for both reliable control at extreme range, and extremely low latency with a best-in-class frame rate for the Race circuit.
Features
2.4GHz ISM Band
Standard 'Lite' Module:, tested with FrSky XLite„¢, and FrSky X9 Lite radios
One Of The Smallest Receivers On the Market
Chirp Spread Spectrum, with Adaptive FHSS
Crazy Race Performance: 250Hz,
~4ms End to End Latency, with OpenTx Integration
Specifications
Brand: ImmersionRC
Item Name: IMMERSIONRC GHOST LITE TX MODULE
Frequency Range: 2406 - 2479MHz
Modulation: Chirp Spread Spectrum + Adaptive FHSS
Binding: Bidirectional with confirmation and protocol negotiation
RF Profiles: Race, Pure Race, Normal, and Long Range, more to come
Format: Standard 'Lite' Module: tested with FrSky XLite„¢, and FrSky X9 Lite radios
Serial Formats: SBus, GHST, Auto-sense
OpenTx support: 2.3.11 release, or 'high performance' synced version of 2.3.11
Firmware: USB Upgradable(with OTA updates for receivers)
Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V
Note: All Ghost receivers currently have multiple binding methods. It is recommended to bind via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4.
