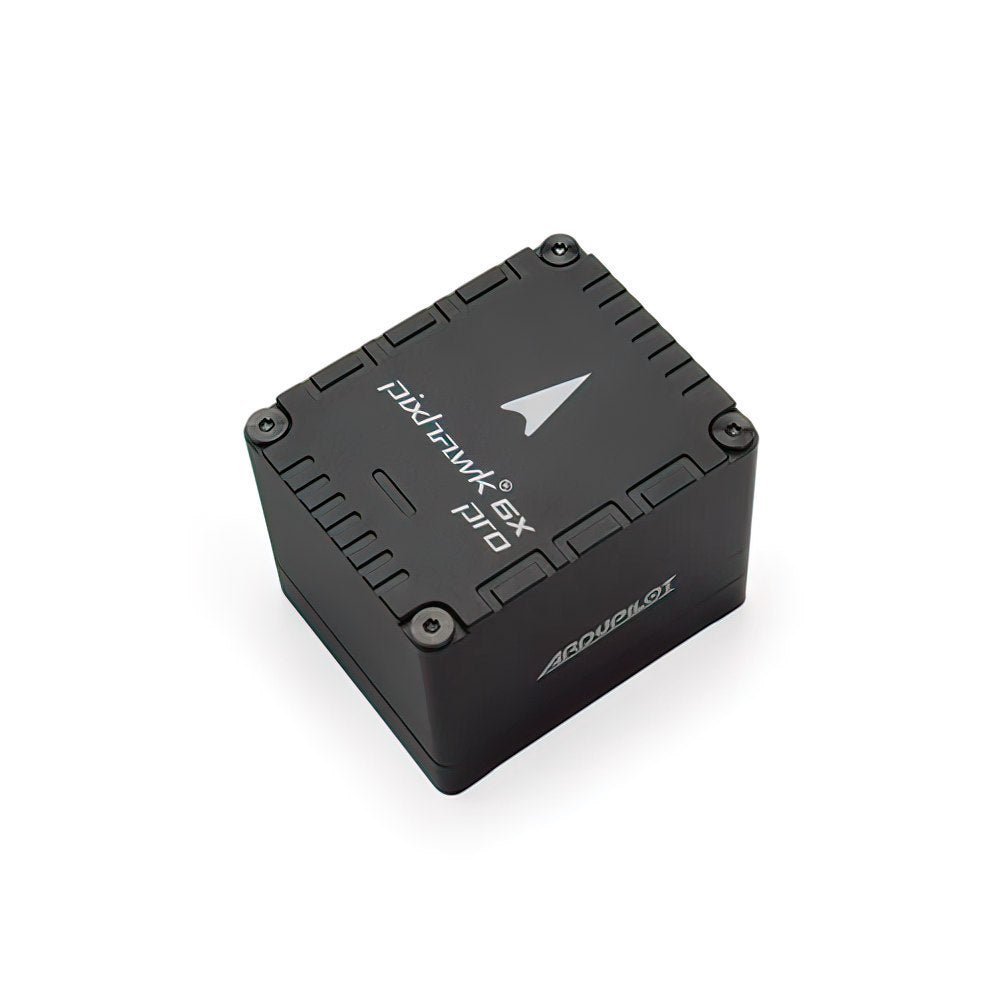

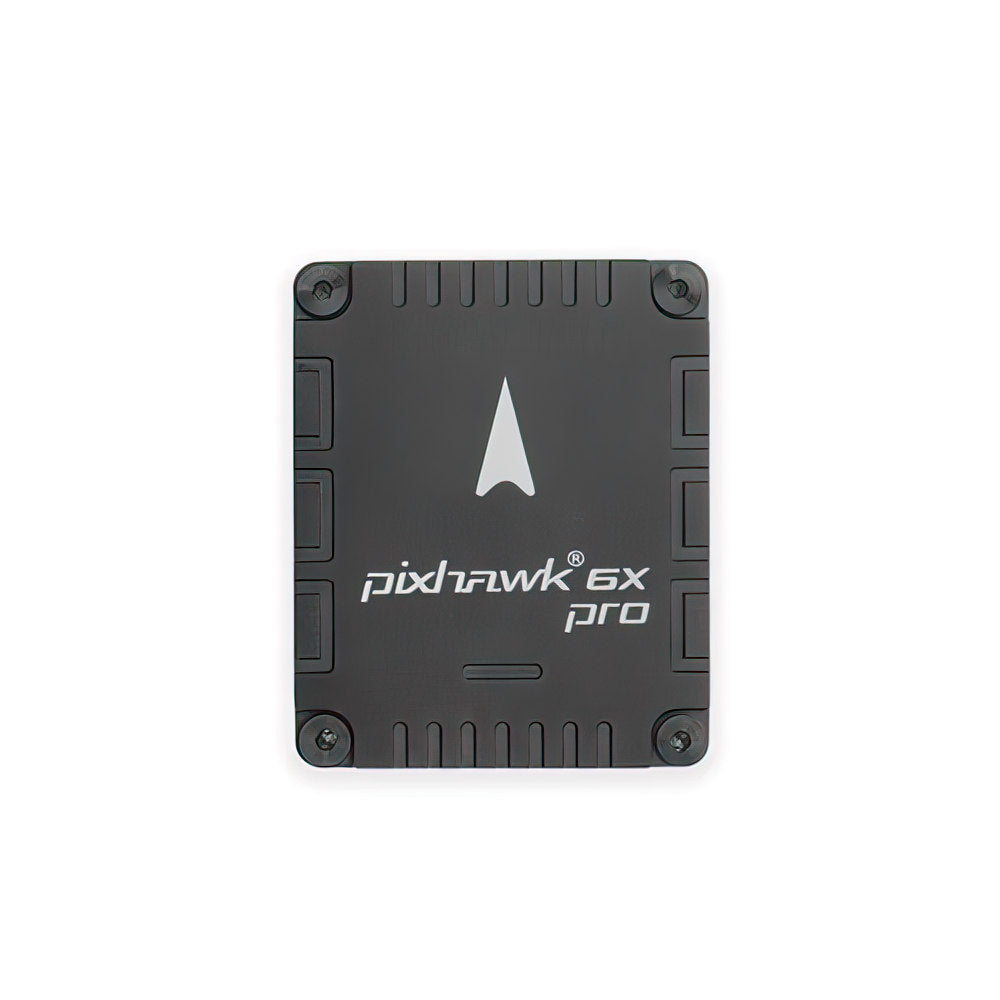

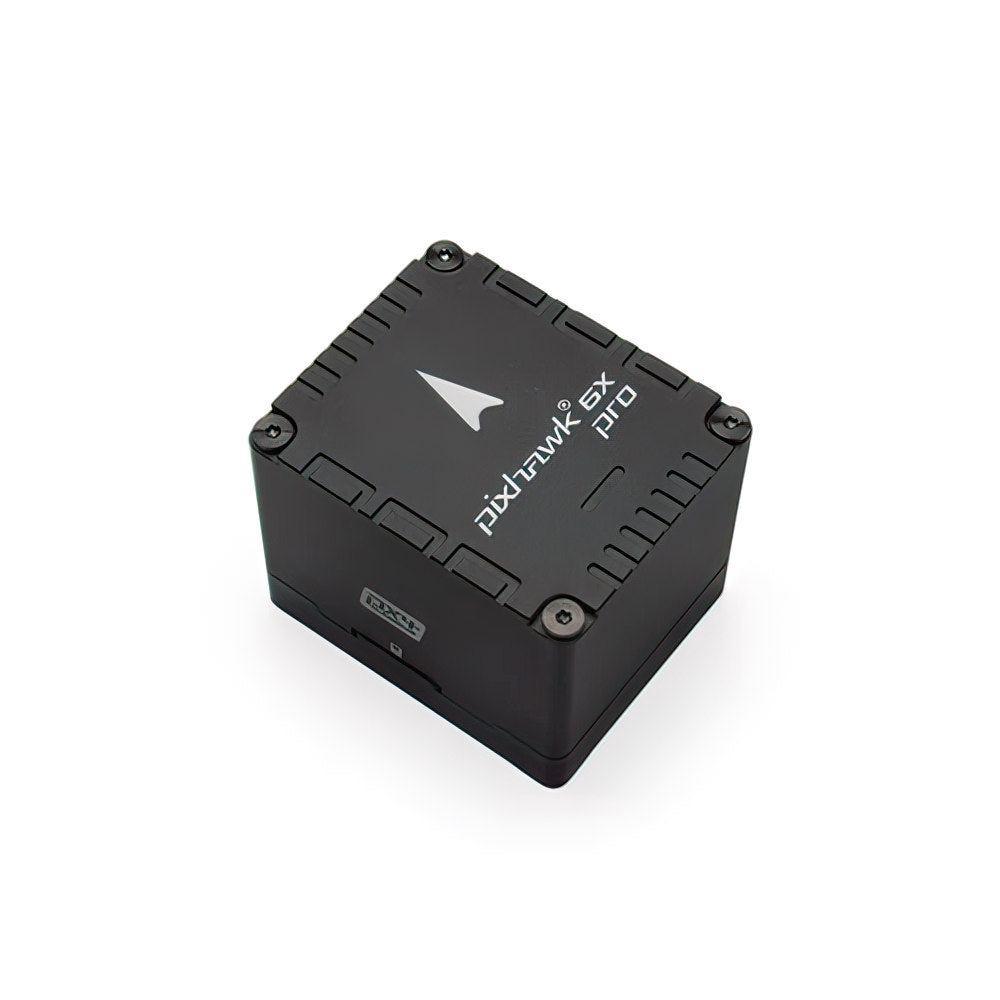

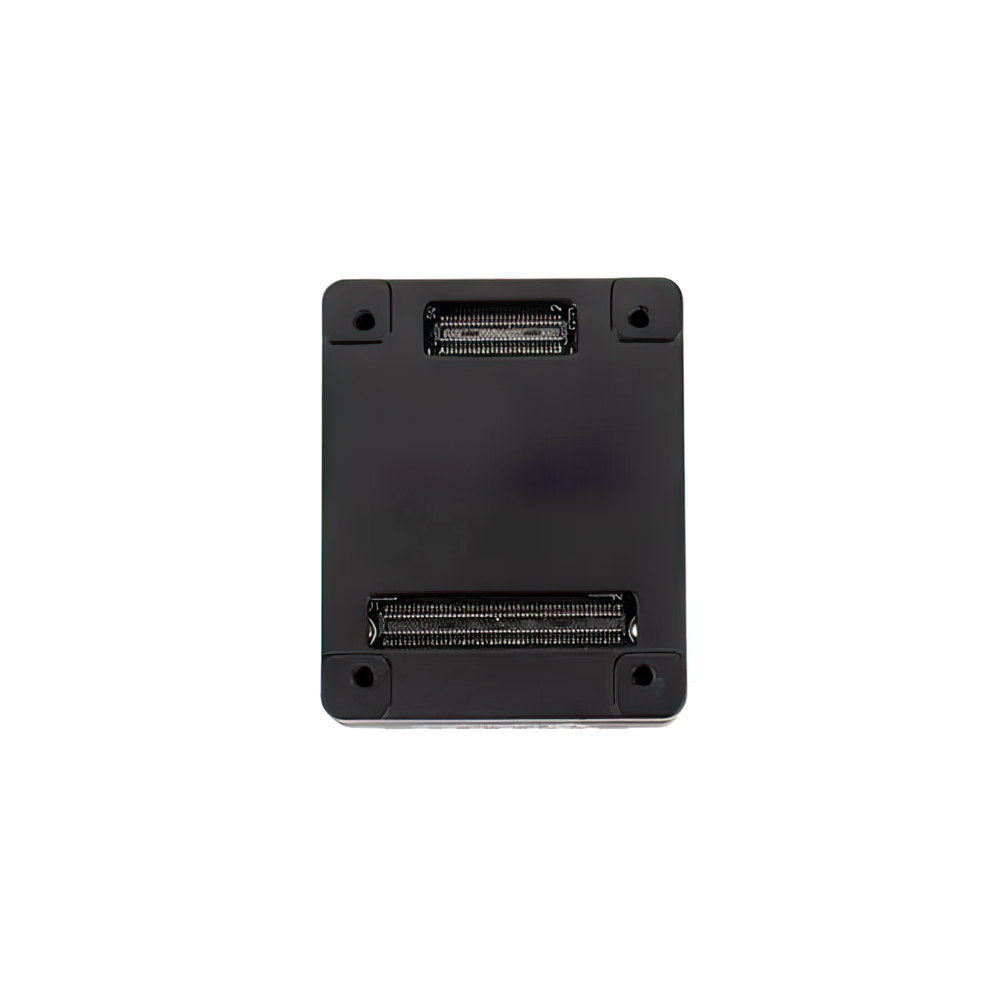

Holybro Pixhawk 6X Pro FC Module

The Holybro Pixhawk 6X Pro FC Module is an advanced flight controller system perfect for modern UAV applications. Featuring the high-performance ADIS16470 Industrial IMU with a ±40 g accelerometer dynamic range, it delivers unmatched motion sensing accuracy. It is engineered with durable vibration isolation material and suits both industrial and commercial drones. The system boasts a triple redundant IMU, double redundant barometer, and a high-performance STM32H753 processor, ensuring reliability, safety, and modular flexibility. Independent LDO power control, an Ethernet interface for high-speed integration, and a temperature-controlled IMU board guarantee consistent performance and longevity.

• High-Performance ADIS16470 Industrial IMU
• Advanced Vibration Isolation Material
• Temperature-Controlled IMU Board
• High-Performance Processor
• Independent Power Control
• Redundant Sensor Systems
• Modular Flight Controller
• Safety-Driven Design
• Ethernet Interface

ALL NEW VIBRATION ISOLATION DESIGN

This new vibration isolation design uses a custom-formulated, durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drones.

• On-board Sensors

  • Accel/Gyro: ICM-45686 with BalancedGyro™ Technology±32g, Hard Mounted
  • Accel/Gyro: ADIS16470±40g, Vibration Isolated, Industrial IMU
  • Accel/Gyro: IIM-42652±16g, Vibration Isolated, Industrial IMU
• FMU Processor: STM32H753

  • 32-Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
• IO Processor: STM32F103

  • 32-Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• Barometer: ICP20100
• Barometer: BMP388
• Mag: BMM150

MECHANICAL DATA

• Dimensions

  • Standard Baseboard: 52.4 x 102 x 16.7 mm (Aluminum)
  • Flight Controller Module: 38.8 x 31.8 x 30.1 mm
  • Mini Baseboard: 43.4 x 72.8 x 14.2 mm
• Weight

  • Standard Baseboard: 72.5g (Aluminum)
  • Flight Controller Module: 50g
  • Mini Baseboard: 26.5g

ELECTRICAL DATA

• Current Ratings:

  • All other port combined output current limiter: 1.5A
  • Telem1 output current limiter: 1.5A
• Voltage Ratings:

  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~36V
  • Max input voltage: 6V

IMPORTANT NOTES

• An FC Module and a baseboard are required for this product to function. An FC Module or a baseboard by itself will not function.

• Power Module Comparison Chart
• Isolation Material Testing Data
• Power Module Setup Guide
• Sample Wiring Diagram
• PX4 & Ardupilot Guide
• Firmware Support
• Dimensions

• 1x Holybro Pixhawk 6X Pro FC Module
