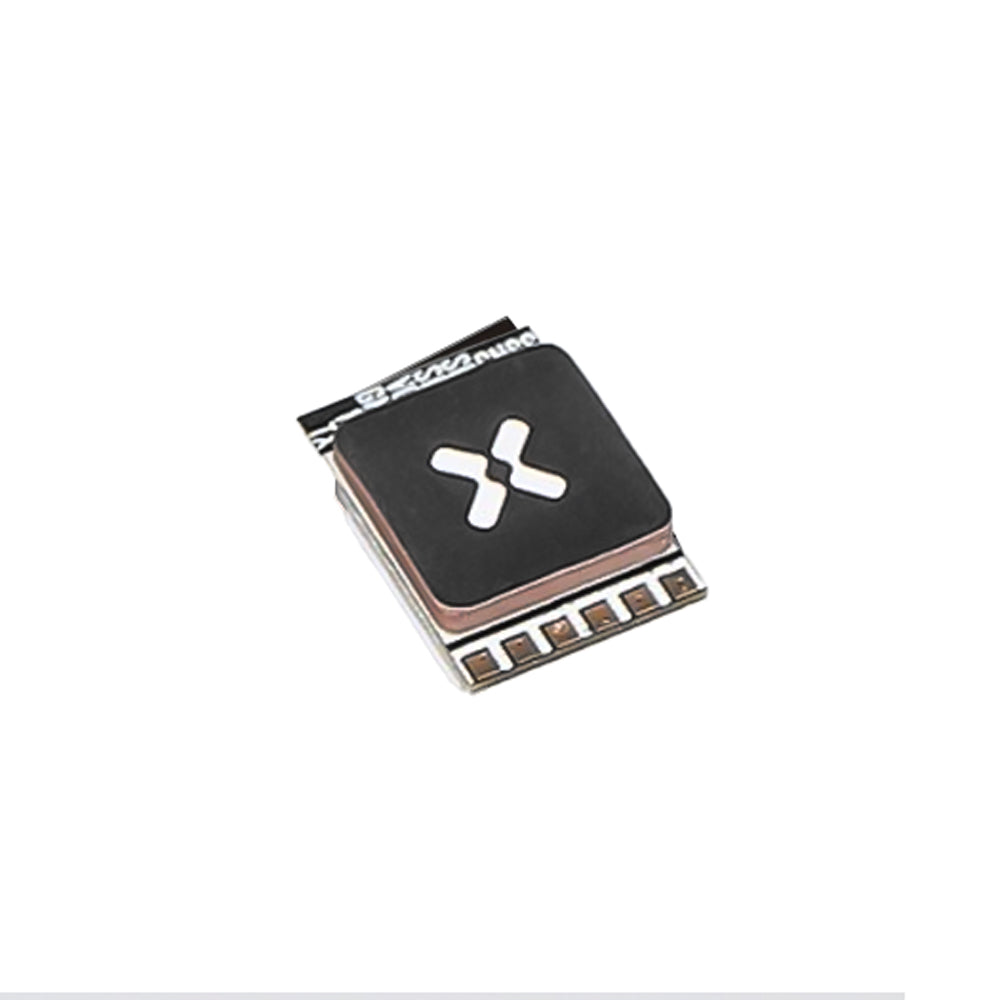

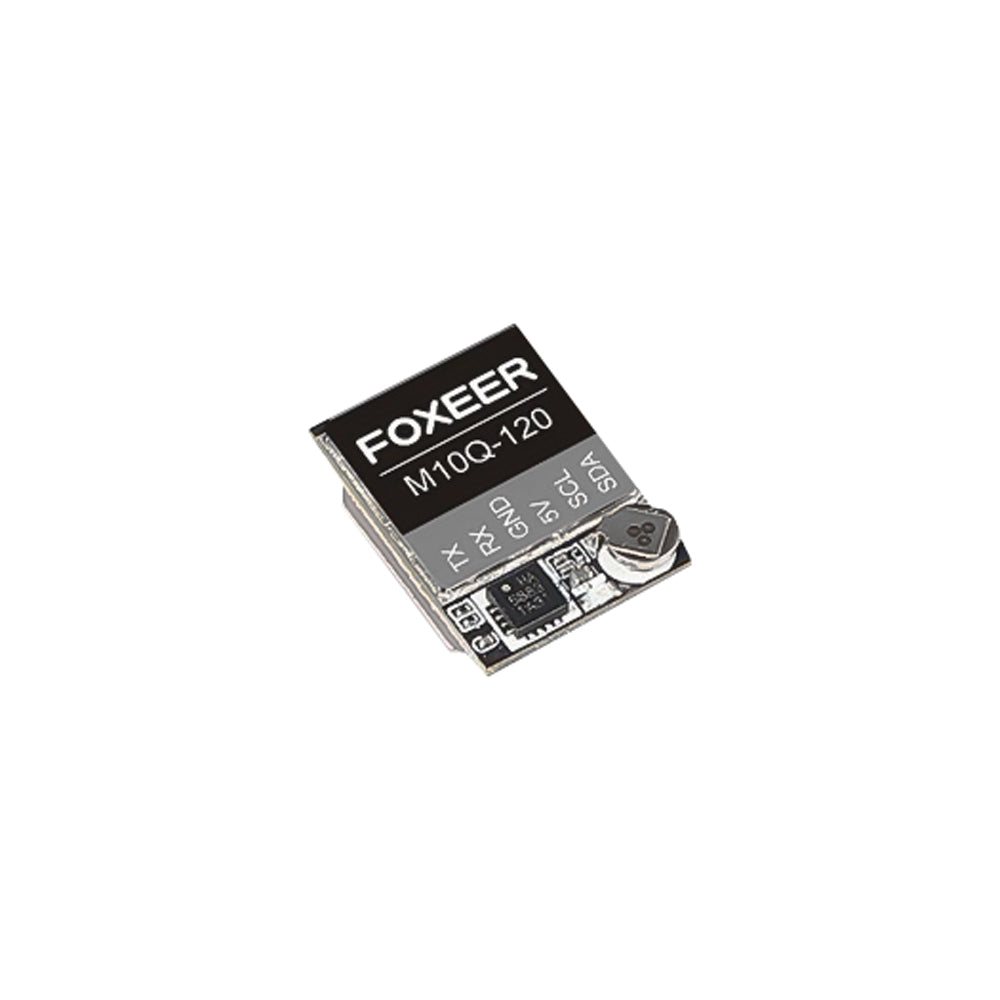

Foxeer M10Q-120 GPS w/ 5883 Compass

Enhance your drone's navigation with the Foxeer M10Q-120 GPS. This compact GPS receiver boasts a powerful 10th-generation chip and support for multiple satellite systems, ensuring precise and dependable positioning. Its lightweight design and broad operating temperature range make it an ideal choice for FPV enthusiasts.

• Broad Operating Range
• Compact Design
• Multi-Frequency
• High Sensitivity
• 10th Gen Chip

• Chip: M10 (10th Generation Chip)
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1
• Input Voltage: 5V
• Antenna: Ceramic Antenna
• Channel: 72
• Battery: Built-in
• Compass: QMC5883
• Compass Orientation: Plug facing the direction of flight with the antenna up, BF: CW 180° Flip
• Baud Rate: 115200bps
• Protocol: Dual NMEA/UBLOX
• Output Frequency: 1Hz-10Hz (10Hz default)
• Speed Accuracy: 0.05m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5m (outdoor)
• Receiver Sensitivity: Trace -166dBm; Capture -160dBm
• Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C
• Weight: 2.7g
• Size: 12.5 x 17 x 5mm

• 1x Foxeer M10Q-120 GPS w/ 5883 Compass
