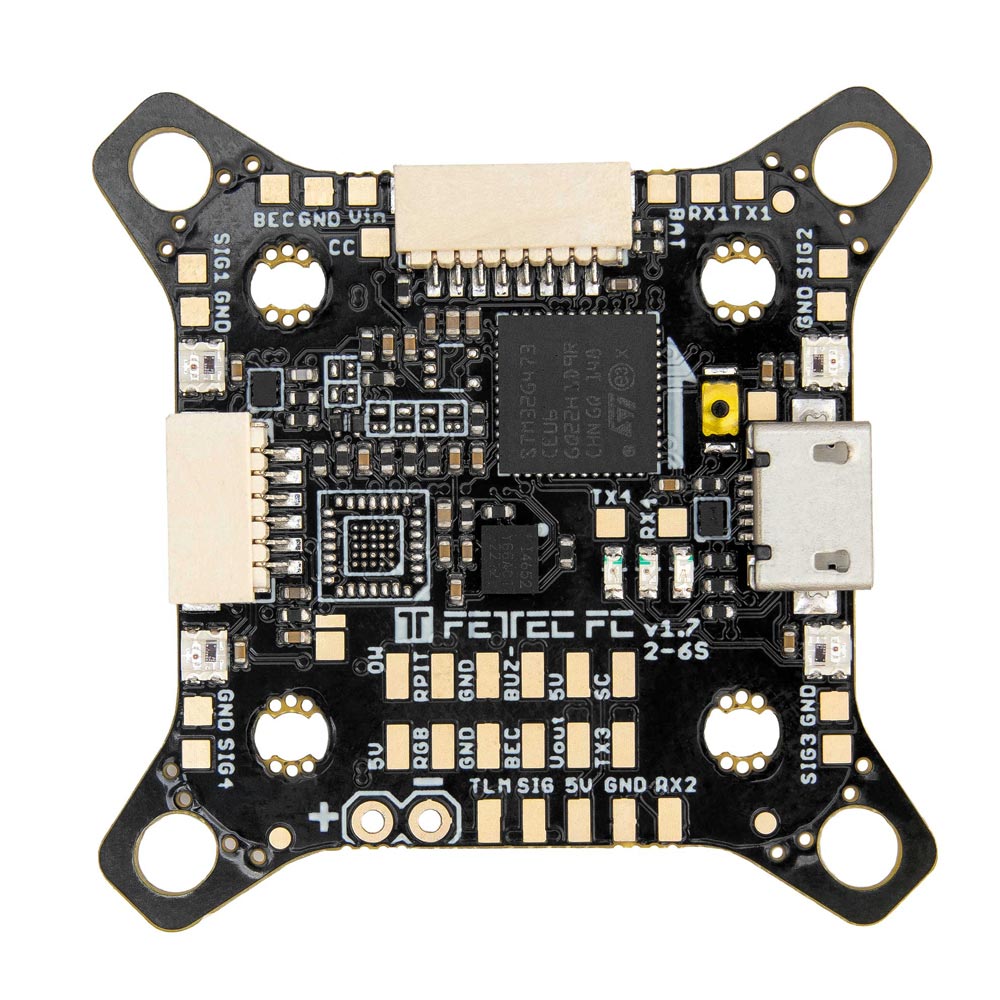

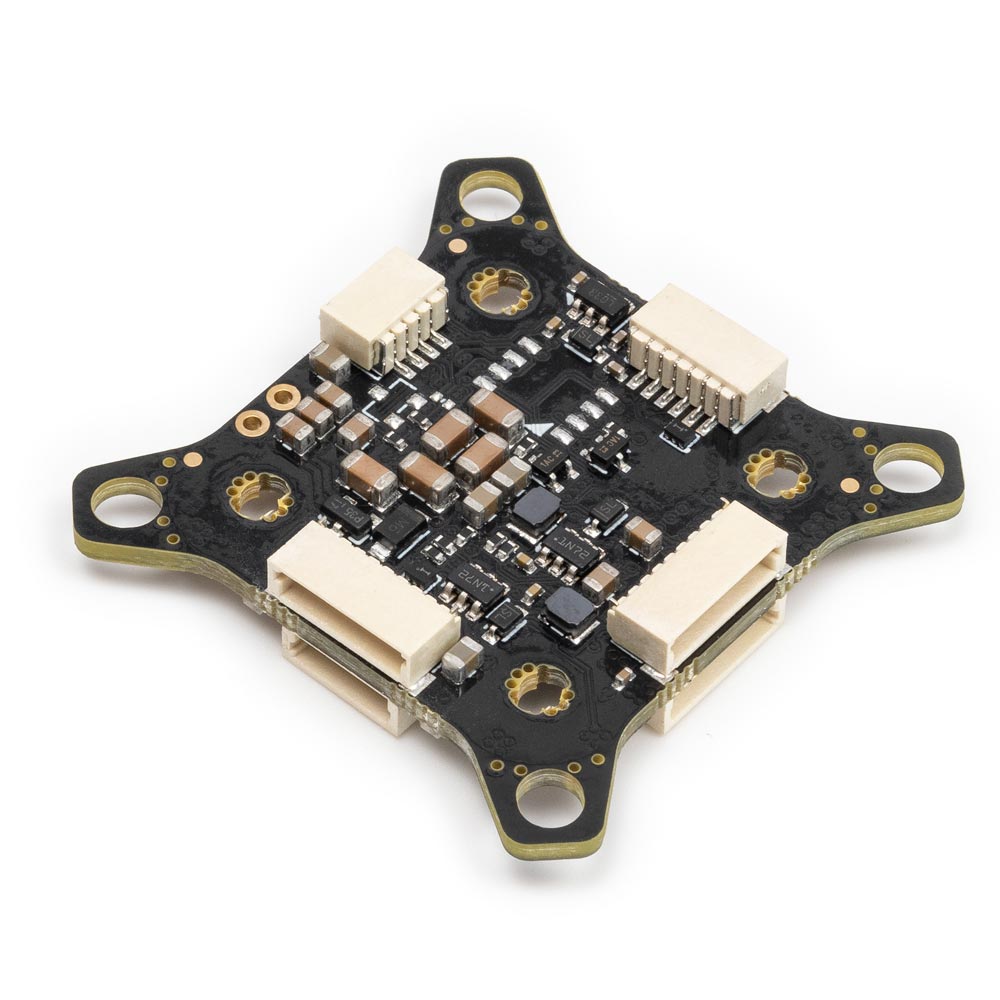

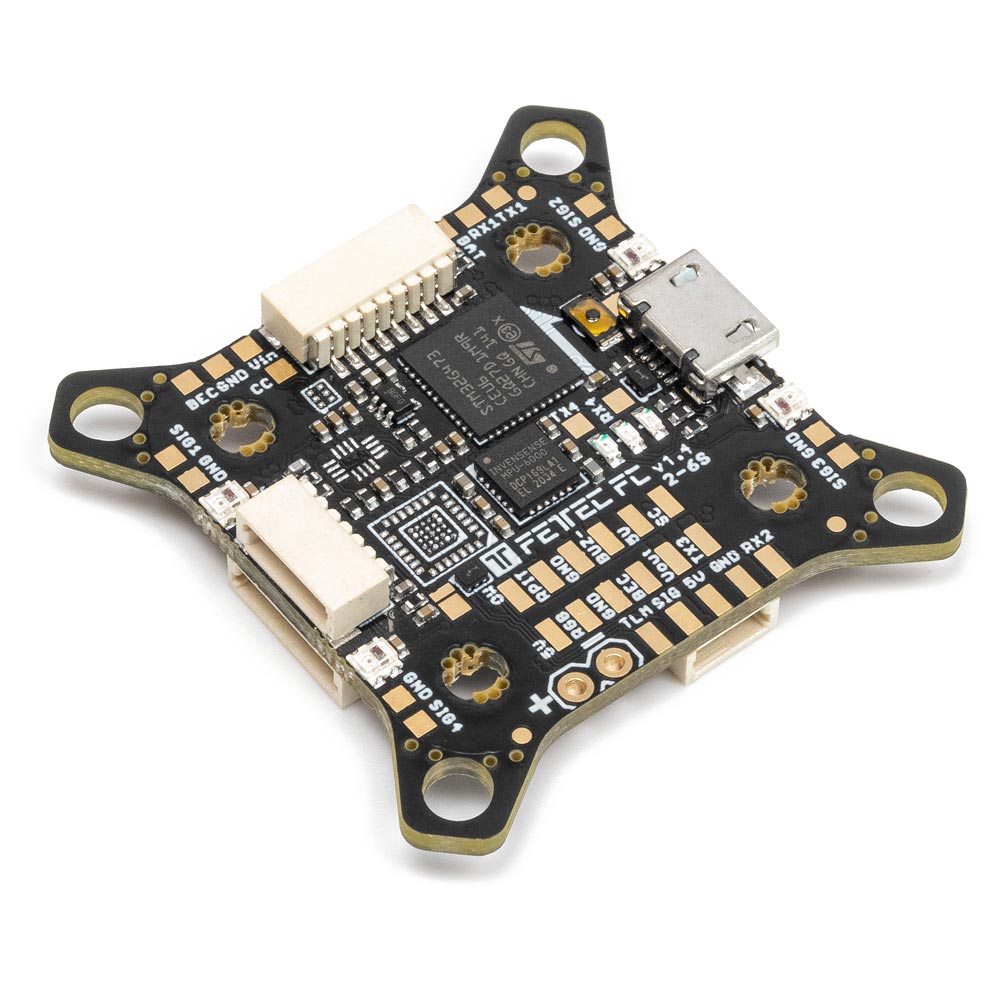

FETtec G4 - N v1.7 Flight Controller

FETtec G4 - N v1.7 Flight Controller

Regular price $102.99 USD
Regular price Sale price $102.99 USD
Sale Sold out
Product information "FETtec FC G4 - N v1.7"

What does "N" version mean?

This product has no onboard analog OSD.

Use of digital OSDs is still possible as usual.

There is also the option of connecting to a FETtec OSD board for using analog systems.



Comparison:

Fettec Compare

Features:

  • Latest STM32G4 Processor

    • 180Mhz + Math accelerator
    • Gyro IIM-42652 SPI
  • Supply voltage 6-27V (2S-6S Lipo)

  • 2x dedicated onboard BEC (2A each)

    • 5V BEC for RX
    • 5V/16V BEC for VTX (switchable and real Pit*)
  • Improved IO protection

    • All IOs of the microcontroller e.g. in connectors or solder pads are protected against voltage or current spikes
  • 2x 8 pin connector for solder free ESC connection

    • Connector 1: ESC signal 1-4, telemetry, VCC, GND
    • Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
  • 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

    • real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

  • 2x 6 pin connectors for serials

    • RX1, TX1, 3.3V, VCC, 5V, GND
    • RX3, VCS/TX3, RGB LED, VCC, 5V, GND
  • 1x 4 pin connector for receiver

    • Signal, TLM, 5V, GND

  • 5 UART serials

    • UART 1 free
    • UART 2 used for Receiver
    • UART 3 free
    • UART 4 free
    • UART 5 used for ESCs / TLM / Onewire
  • 4 ESC solder pads (Signal/GND) in each corner

  • Buzzer pads

  • 4 tiny RGB LEDs (selectable color)

  • Supported ESC protocols

    • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

  • FETtec Alpha FC firmware (KISS FC firmware flashable)
  • Connector type: JST-SH-1mm



*real Pit-Mode: A power supply pin which is remotely switchable



Dimensions:

dimensionsO2BNL0T723GCJ

  • Maximum outside dimensions: 37.2 x 37.2mm, without outside tips 30 x 30mm

  • Mounting hole arrangement:

    • 20 x 20mm with M2 mounting hole (expandable to M3)
    • 30 x 30mm with M3 mounting hole
    • 30 x 30mm mounting hole tips are removable to reduce overall FC size
  • Overall height: 7.9mm

  • Weight: 5.37g

Firmware:

  • FETtec Alpha FC firmware (KISS FC firmware flashable)

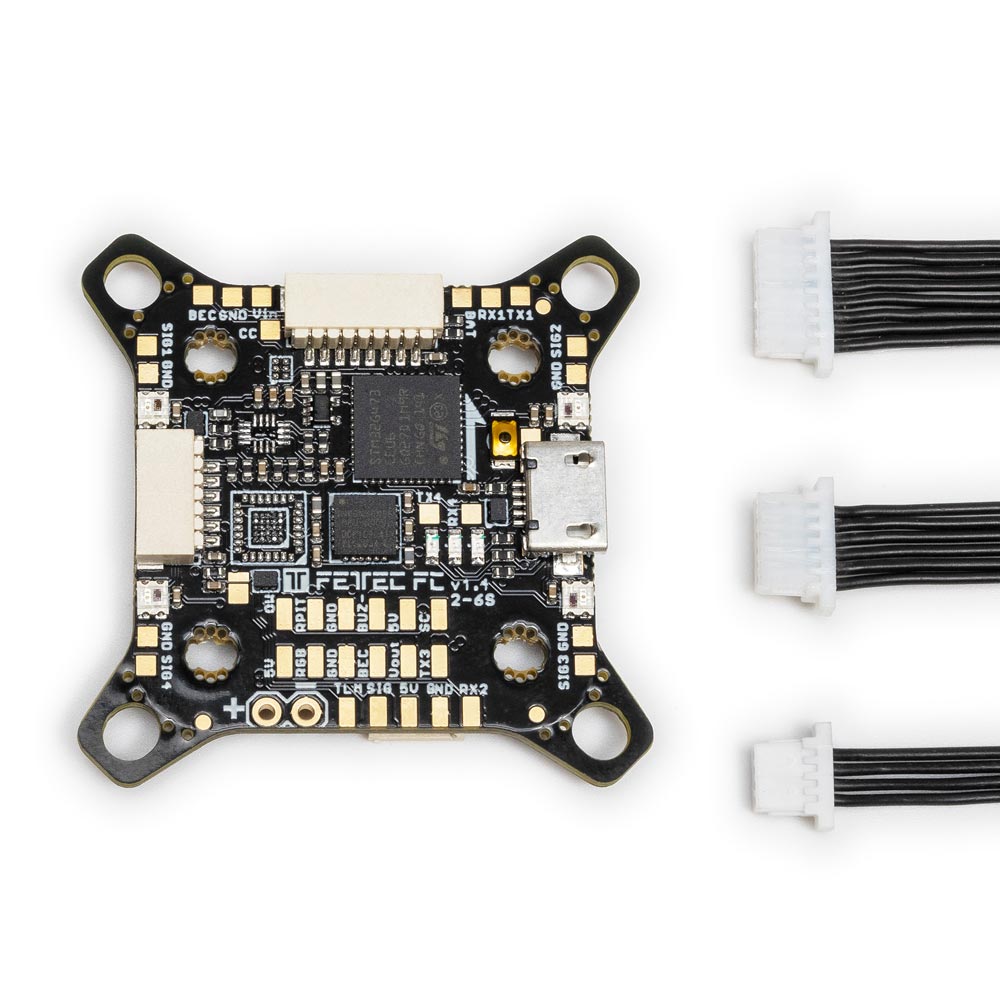

Includes:

  • 1x FETtec FC G4 - N v1.7
  • 1x 8 pin cable (open on one side)
  • 1x 6 pin cable (open on one side)
  • 1x 4 pin calbe (open on one side)
