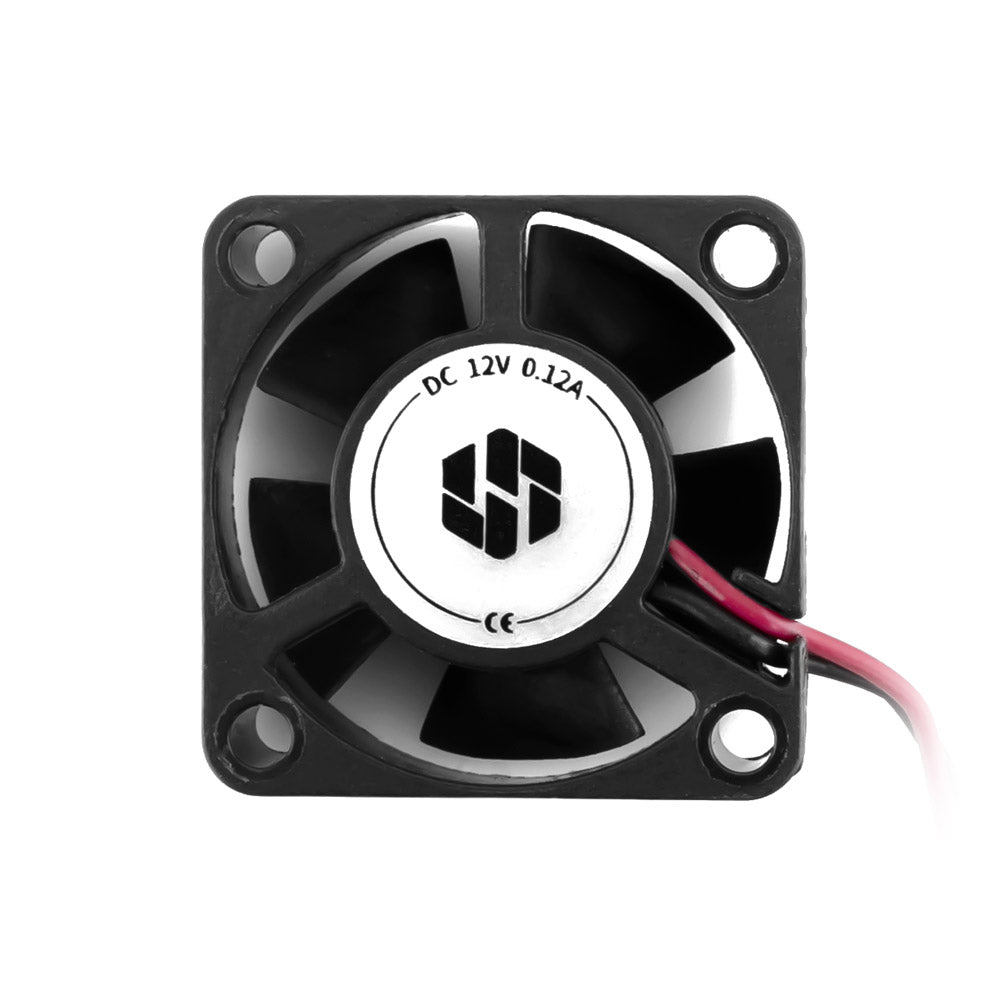

CubePilot Herelink Fan Set

When using Dual Streaming mode, the Herelink can get quite warm, for best results, please install a Herelink Fan Set on the top using the provided screws, rubber rings, washers and nuts in the installation pack. The Fan will keep your Herelink cool and functioning at optimal temperatures.

VIDEO: Herelink airunit fan installation

• Screws, rubber rings, washers and nuts provided
• Optimal functioning of CubePilot Herelink

• Size / Dimension: Square - 30mm L x 30mm H
• Static Pressure: 0.380 in H2O (94.6 Pa)
• Approval Agency: CE, cUL, TUV, UL
• Air Flow: 7.7 CFM (0.216m³/min)
• Base Product Number: MR3010
• Current Rating (Amps): 0.130A
• Termination: 2 Wire Leads
• Weight: 0.018 lb (8.16 g)
• Material - Frame: Plastic
• Voltage - Rated: 12VDC
• Material - Blade: Plastic
• Voltage - Rated: 12VDC
• Features: Auto Restart
• Fan Type: Tubeaxial
• Bearing Type: Ball
• RPM: 11500 RPM
• Noise: 34.0dB(A)
• Width: 10.00mm

• 1x CubePilot Herelink Fan Set
• 1x Hardware Set
• 1x O-Ring Set
