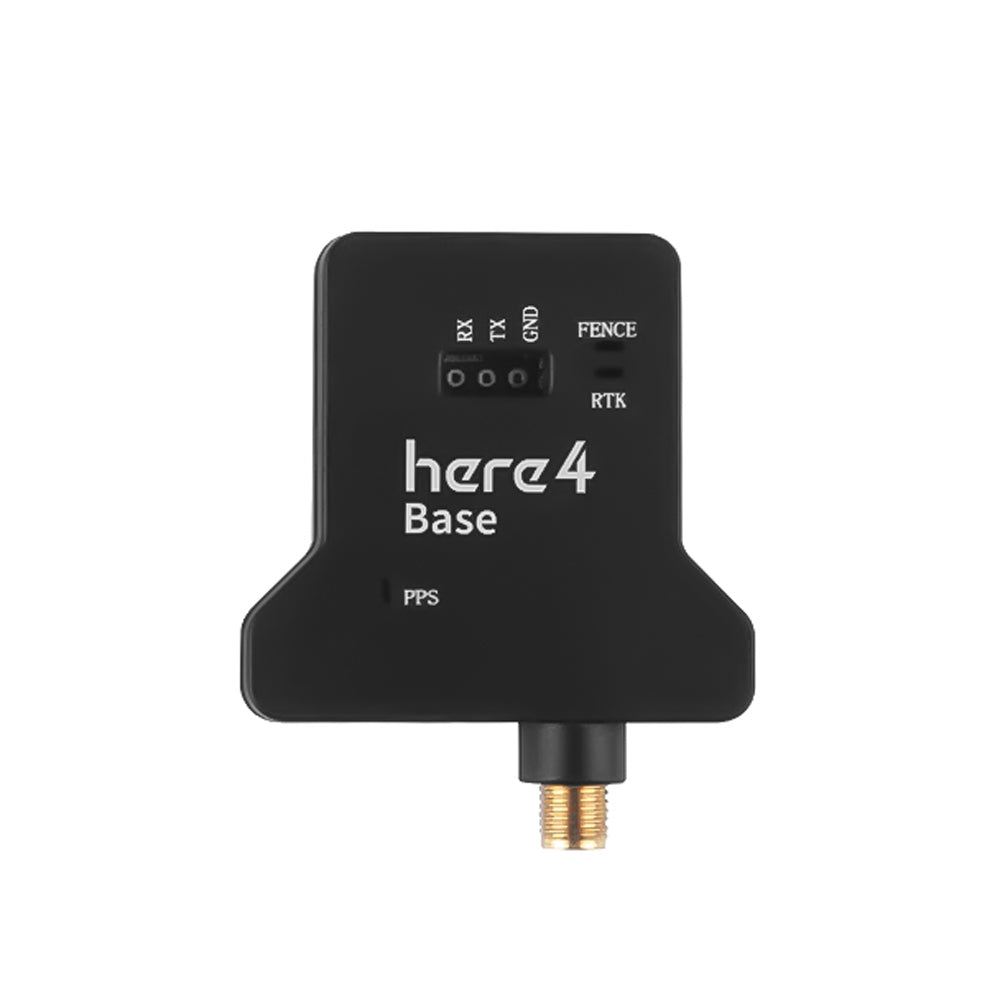

CubePilot Here4 Base

The Here 4 Base, a product of CubePilot, is compatible with both Ardupilot and PX4 systems. It also seamlessly interfaces with ground control stations, including Mission Planner and QGroundControl. Employing RTK (Real-Time Kinematic) technology offers more precise position estimation compared to standard GNSS systems. Its potential for centimeter-level accuracy greatly enhances flight precision. Furthermore, the Here 4 Base is designed for user-friendliness. Setting it up to work with Mission Planner is a straightforward process, requiring minimal configuration. For data communication between rover and base modules, a pair of telemetry modules is required (please note that these modules are not included in the standard package).

Note: For data communication between rover and base modules, a pair of telemetry modules is required (please note that these modules are not included in the standard package).

• Upgraded to add L5 as well as the original L1 band
• Adds more constellations
• Much faster lock times
• Additional frequency

• GNSS Bands: B1|, B2A, E1b/C, E5a, L1C/A, L1OF, L5
• GNSS: BeiDou, GLONASS, GPS, QZSS
• Operation temperature: -40°C to 80°C
• Antenna: L1 and L5 SMA Connector
• Weight: 43g with cable, 18g without
• Number of Constellations: 4
• Size: 40x41x11mm

• NDAA Compliance
• Manual

• 1x CubePilot Here4 Base
• 1x USB Cable
