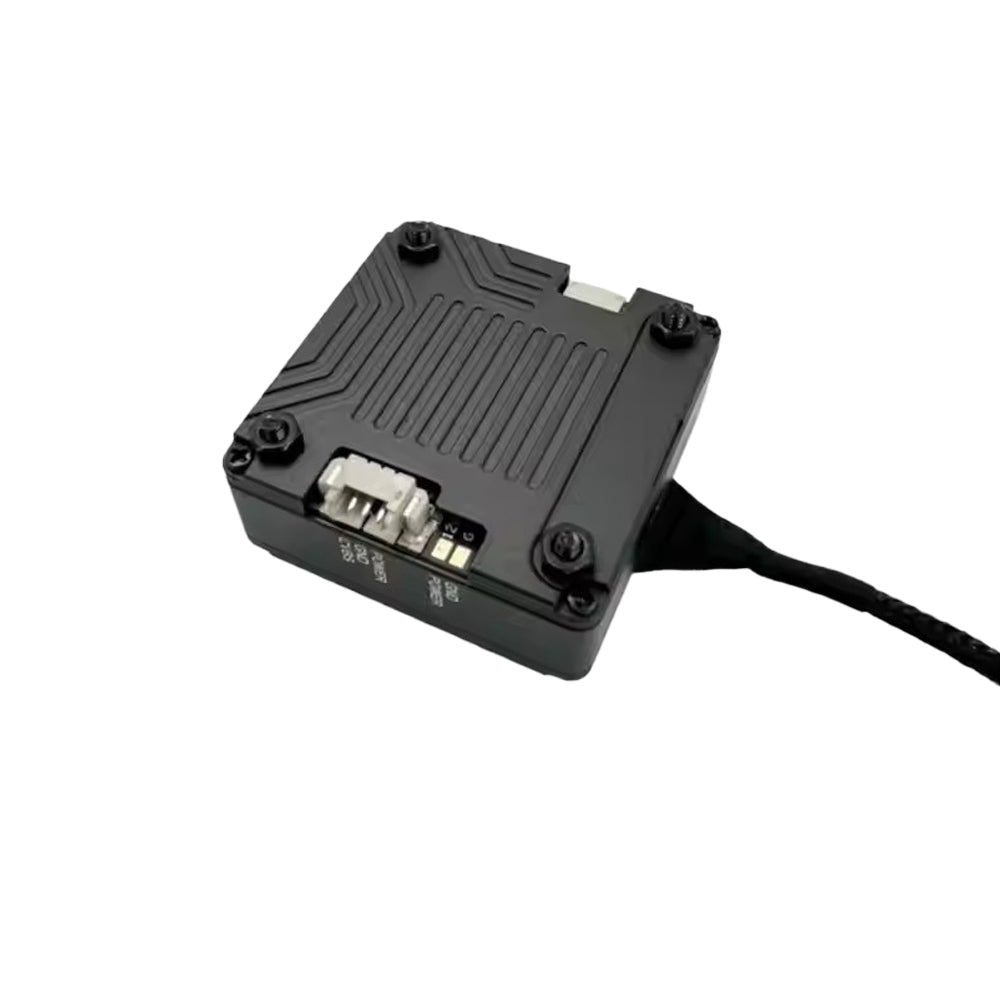

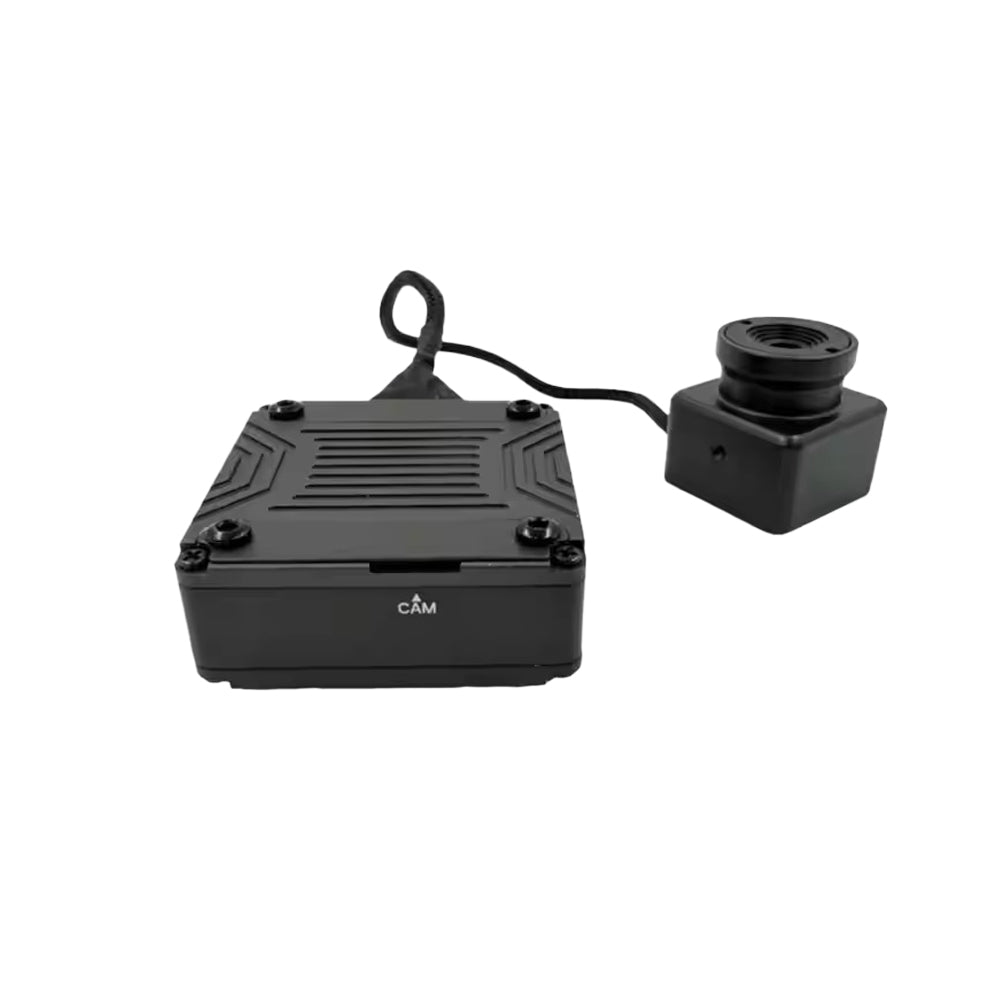

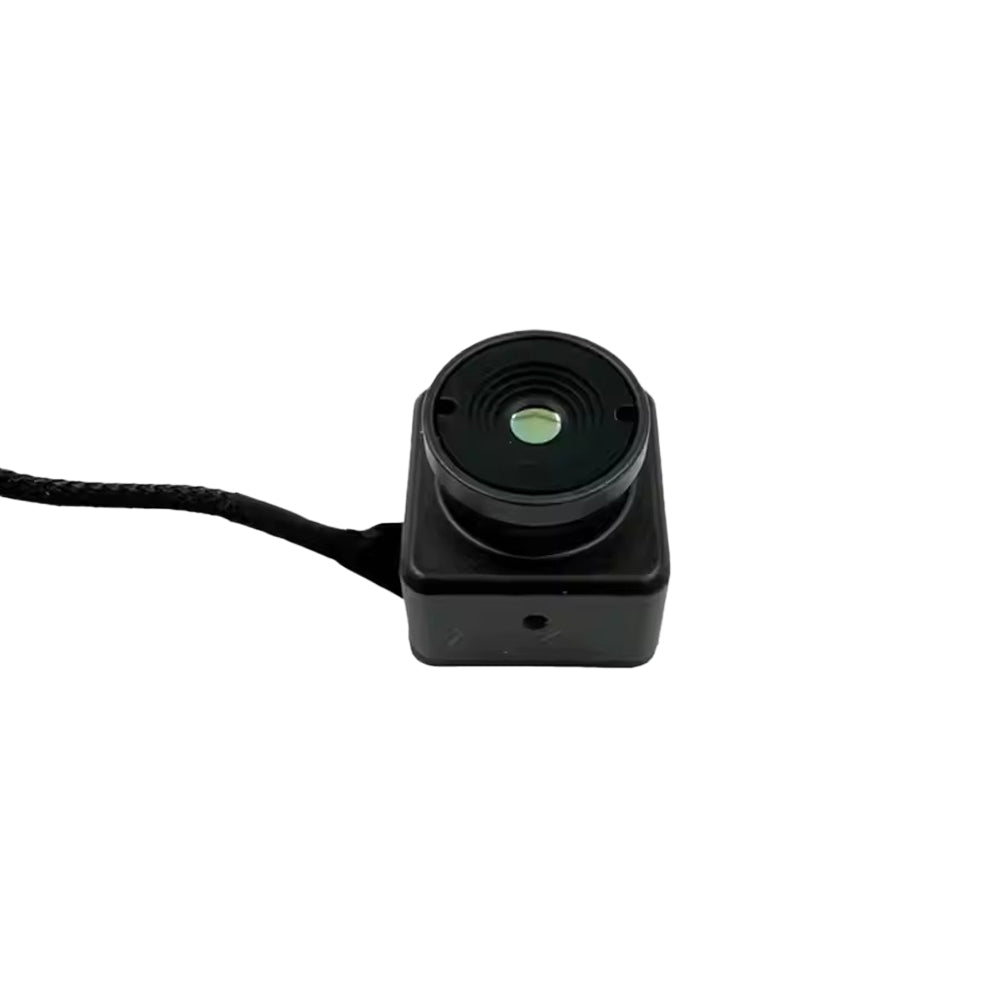

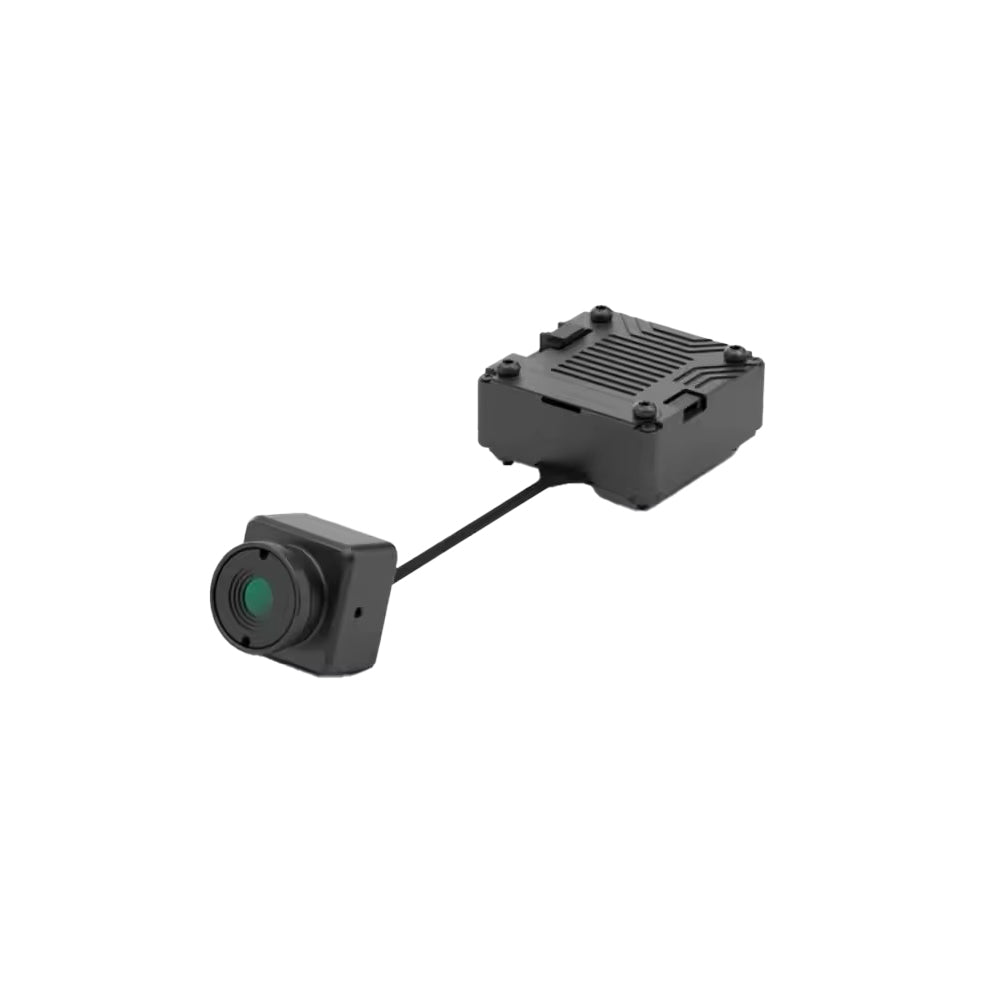

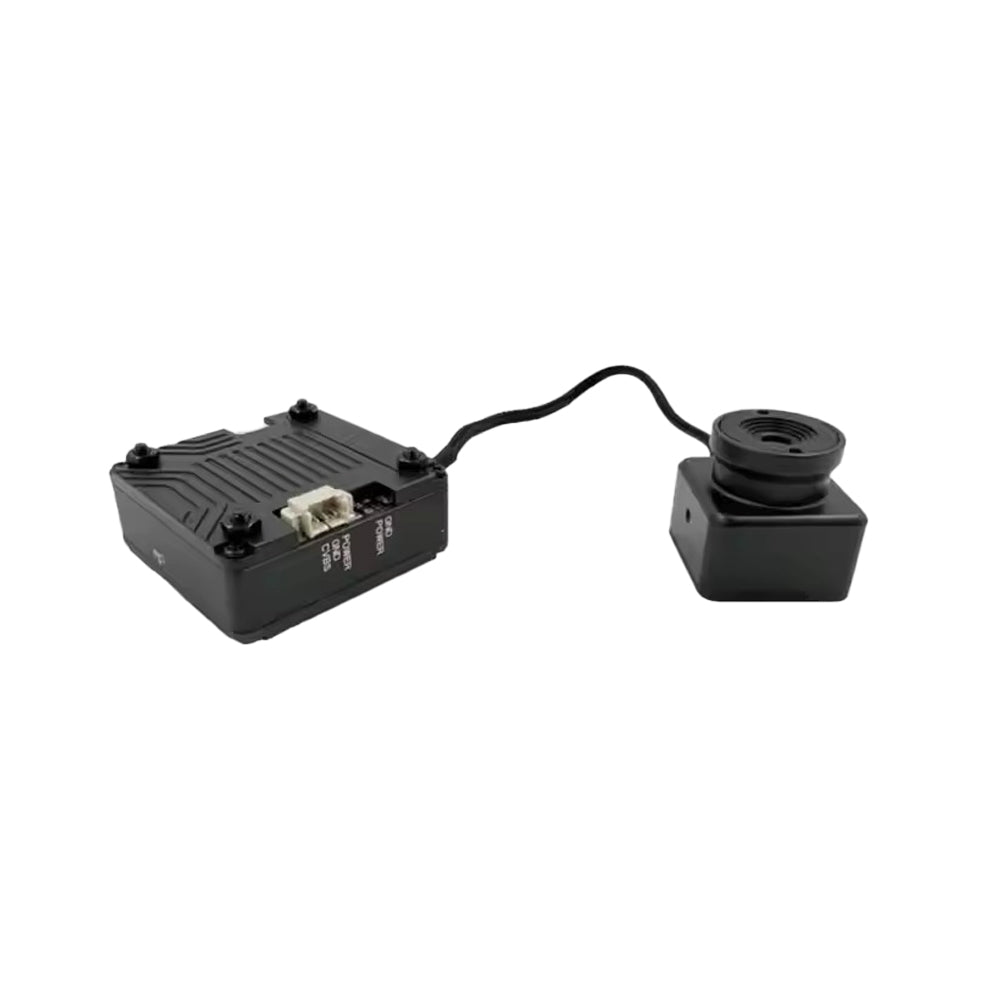

Caddx ECLIPSE 002 256 Thermal Analog Camera System

The Caddx ECLIPSE 002 256 Thermal Analog Camera System offers advanced thermal imaging technology, allowing you to capture clear visuals in low-light and challenging environments. With a compact design and robust build, it's perfect for professional drone pilots requiring precise thermal imaging. It is ideal for search and rescue, surveillance, and inspection tasks. The high frame rate of 25/50FPS and low latency ensures a clean, stable image.

Features

• AI image enhancement improves image quality compared to infrared radiation
• First No-Light night vision analog VTX system - Captures images in 0 Lux conditions
• Lightweight, durable metal case

Specifications

• Model Name: Caddx ECLIPSE 002 256 Thermal Analog Camera System
• Detector Type: Uncooled Vanadium Oxide
• Resolution: 256 x 192
• Wavelength range: 8～12um
• Frame Rate: 50 fps
• Output: PAL
• Latency: 20ms Average
• Interface: CVBS
• Supply Voltage: 9v - 24v
• Power Consumption: <1.5W
• Lens: F1.0/4mm
• FOV: 50°(H) x 37.2°(V) x 62.3°(D)
• Image Quality: AI Image Enhancement
• Operating Temperature: -20°C~60℃
• AI module size: 33.5 x 33.5 x 16.5mm

Important Notes

• "This item does not include individual retail boxes or inserts."

Includes

• 1x Caddx ECLIPSE 002 256 Thermal Analog Camera
• 1x Caddx ECLIPSE AI Module
• 1x FC Connector
• 1x Caddx ECLIPSE 002 256 Thermal Analog Camera
• 1x Caddx ECLIPSE AI Module
• 1x FC Connector
