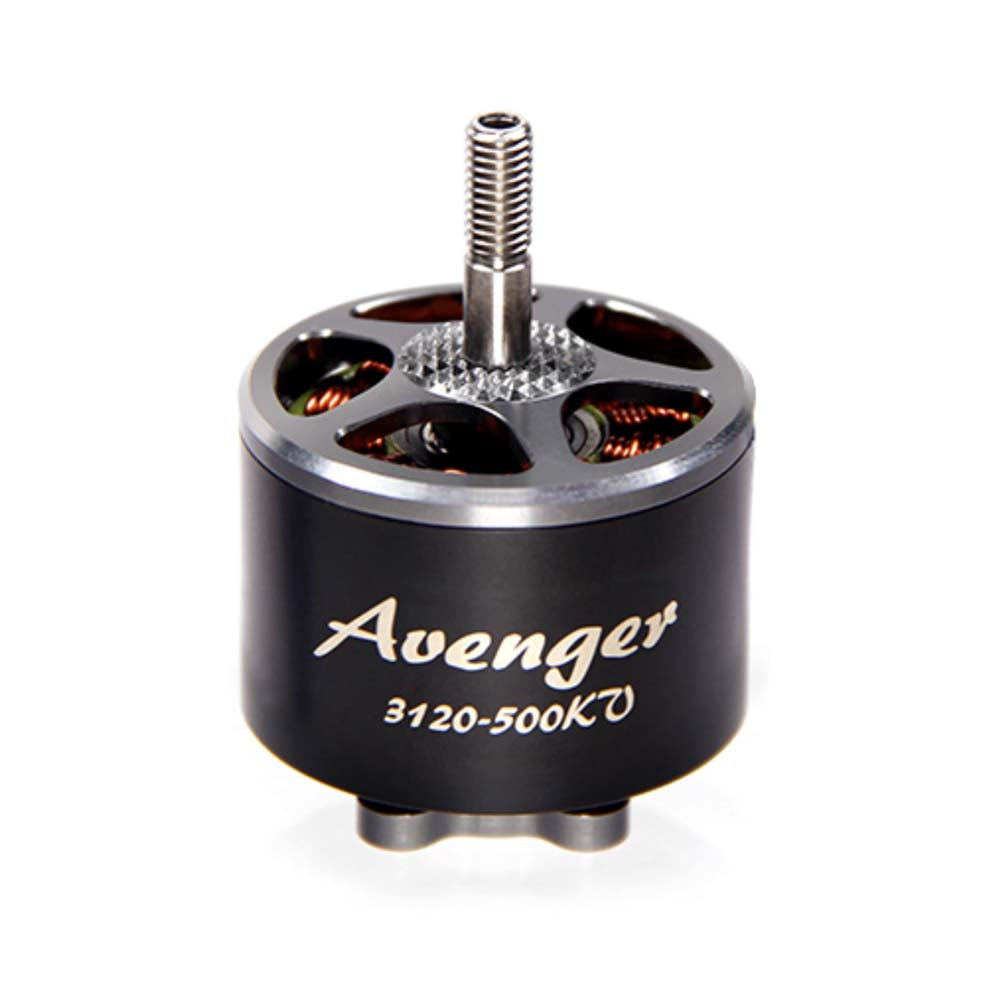

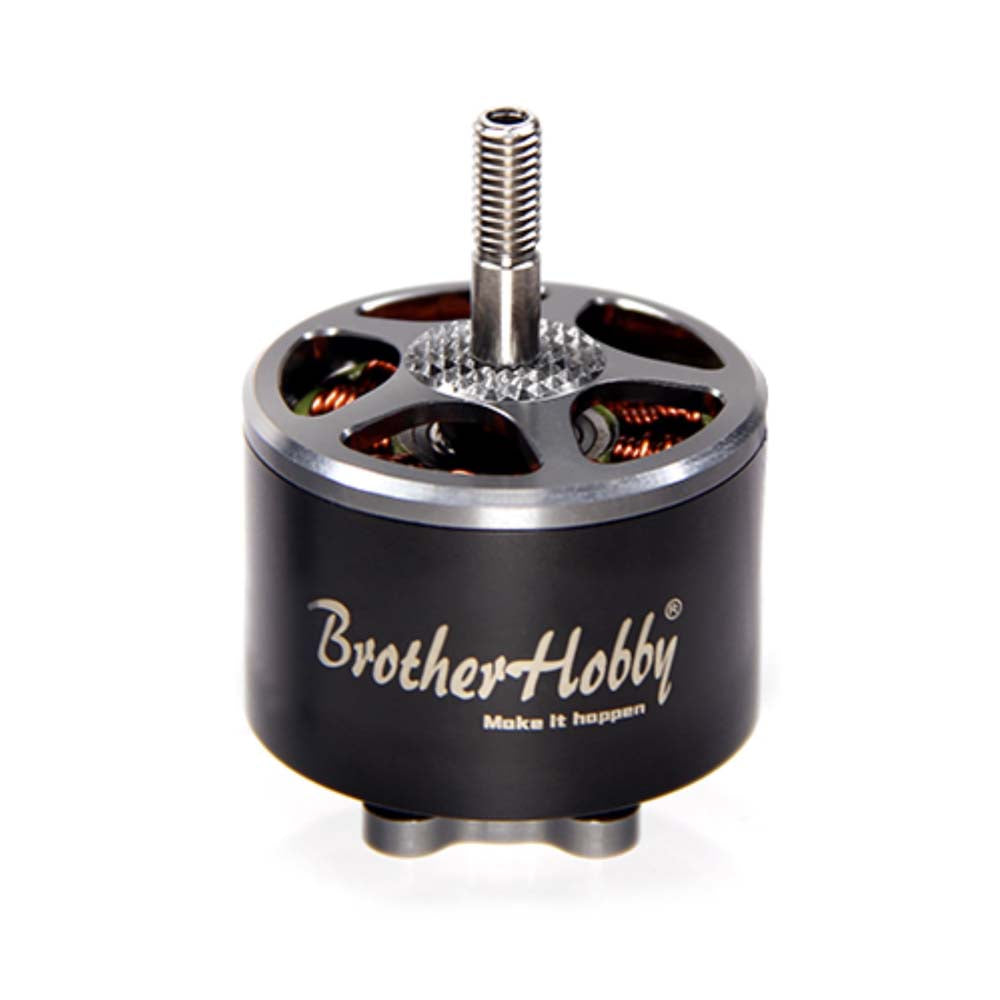

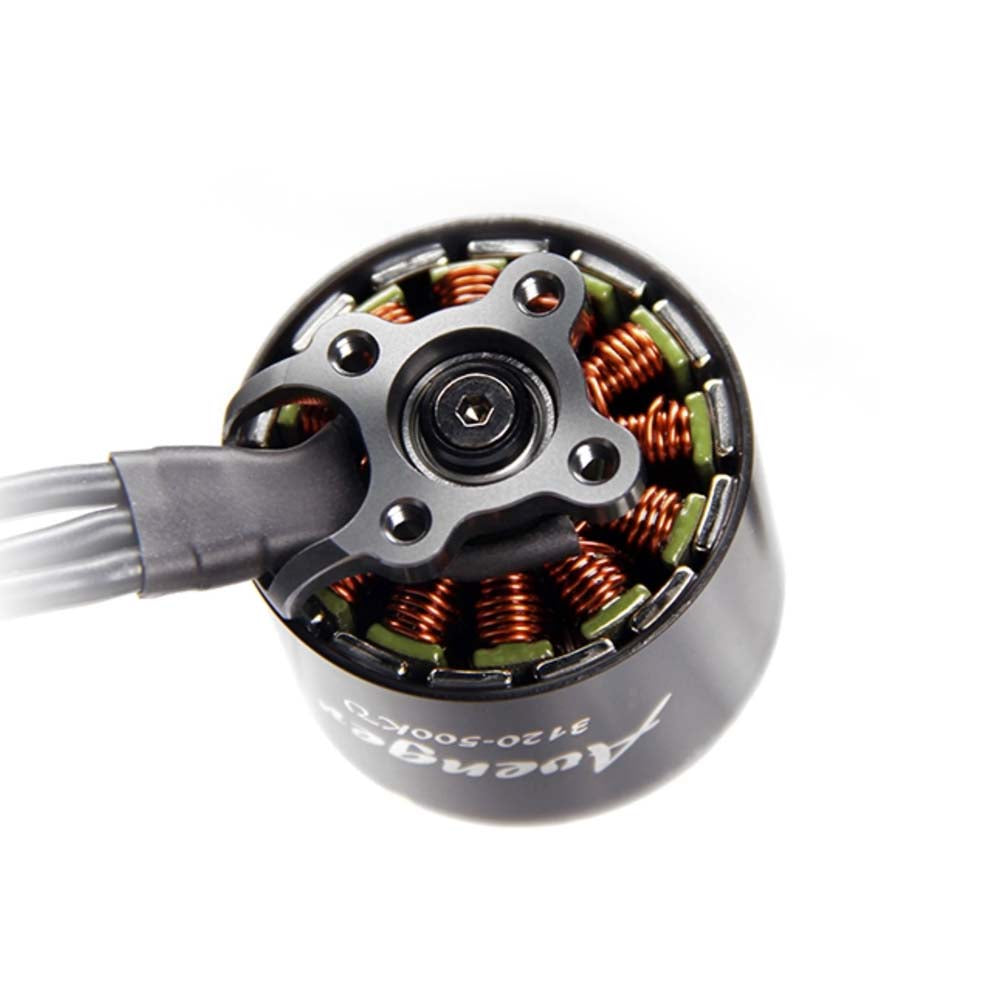

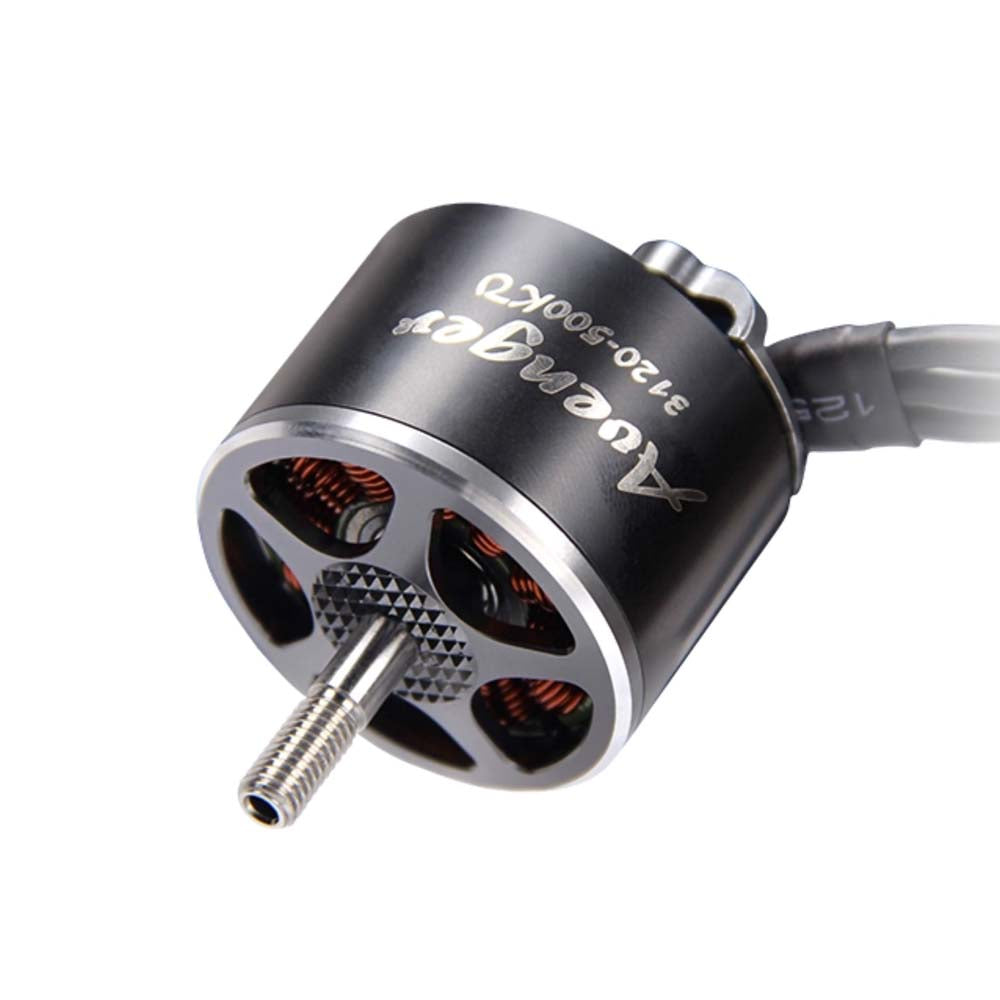

BrotherHobby Avenger 3120 Motor - 500KV/700KV

The BrotherHobby Avenger 31230 Motor is a great motor for larger-sized drones using larger props that need insane torque and power. Perfect for X-Class drones and bigger builds!

Two KV's to choose from: 500KV or 700KV!

Video: Big Props / Big Motor - BrotherHobby Avenger 3120 500KV Motor Thrust Test

Specifications

• KV: 500KV/700KV
• Stator: 0.2mm Kawasaki silicon steel
• Prop Adapter Shaft Thread: M5
• No. of Cells (Lipo): 8S/12S
• Bearings: Japanese NMB 11x5x5 mm
• Weight: 142.7 with 30cm SR wires
• Bell cap: Al 7075
• Base casing: Al 7075
• Configuration: 12N14P
• Shaft: Titanium Alloy hollow shaft
• Bolt Pattern: M3 (19X19mm)
• Rotor: N52H arc magnets
• Wire AWG: 16AWG 30cm lengt

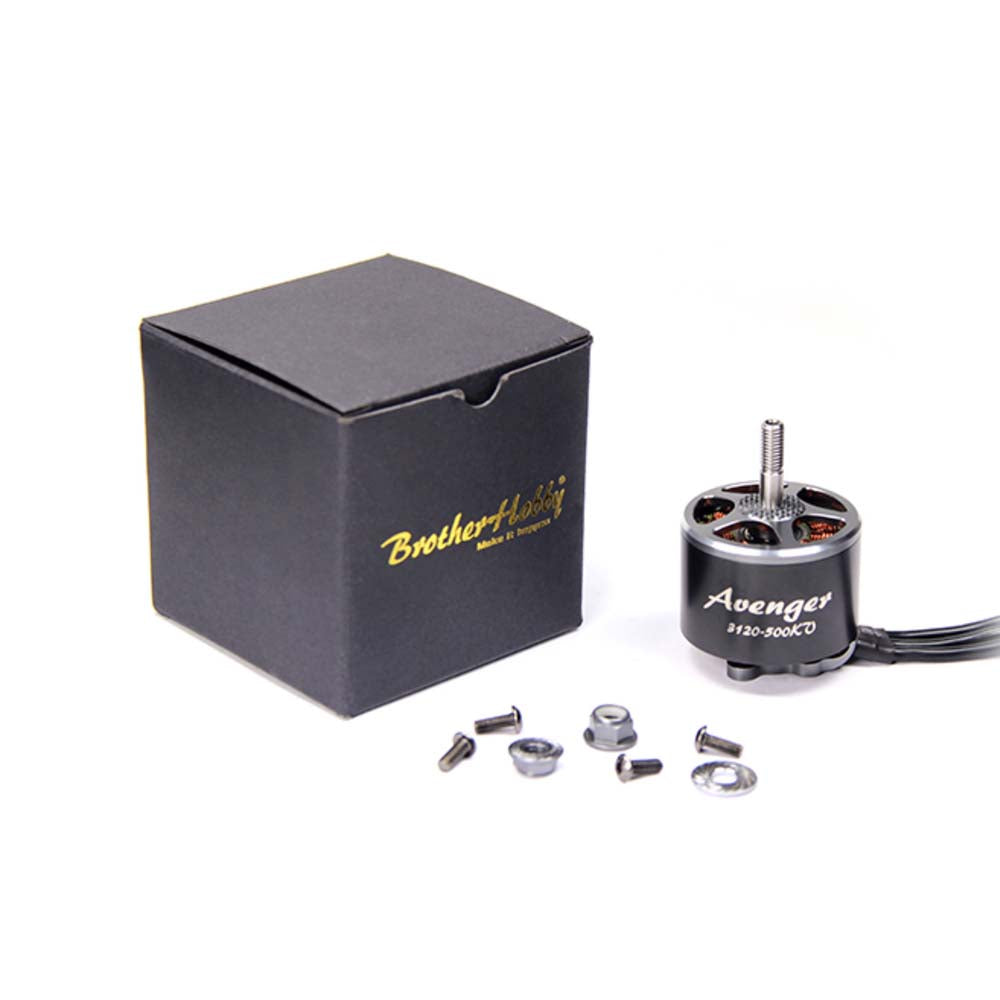

Includes

• 1 x BrotherHobby Avenger 3120 Motor
• 1 x Hardware set
