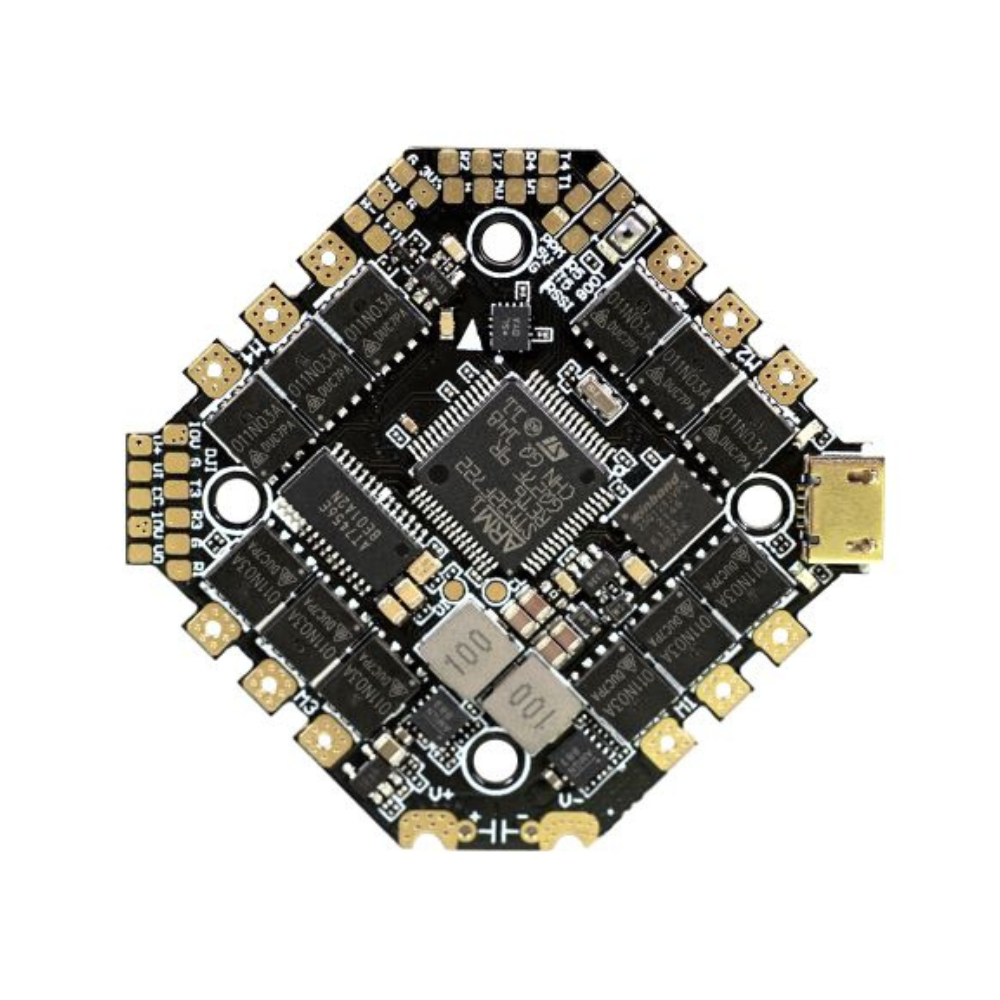

Aikon F7 AIO Board - F7 FC + 60A 3-6S BLHeli_S ESC

The Aikon F7 AIO Board - F7 FC + 60A 3-6S BLHeli_S ESC is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications with its 216mhz F7 processor. All the greatest features into one seamless flight experience!

• On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
• Software-controlled VTX power switch (assigned to USER1 mode by default)
• LED and buzzer outputs (LED input doubles as PPM)
• 10v 1.5A voltage regulator for DJI HD system
• 5 Software invertible hardware UARTS
• Large 5x6mm high current MOSFETs.
• Onboard OSD and Blackbox
• 216mhz F7 processor

• Flight Control Firmware: Betaflight AIKONF7 Target
• ESC Firmware: BLHeli_S (Supports BlueJay)
• IMU: BMI270 (interrupt pin connected)
• Mount Holes: 25.5*25.5mm
• Current Sensor Scale: 400
• Constant Current: 60A
• Blackbox: SPI 16MB
• Burst Current: 70A
• MCU: STM32F722
• Battery: 3-6s
• Weight: 14g

• 1x Aikon F7 AIO Board - F7 FC + 60A 3-6S BLHeli_S ESC
• 1x High-Frequency 470uf/35V Capacitor
• 1x Aikon F7 60A AIO Flight Controller
• 1x Amass XT60 Connector
• 2x 12AWG 100mm Wire
• 2x 8-Pin SH1.0
