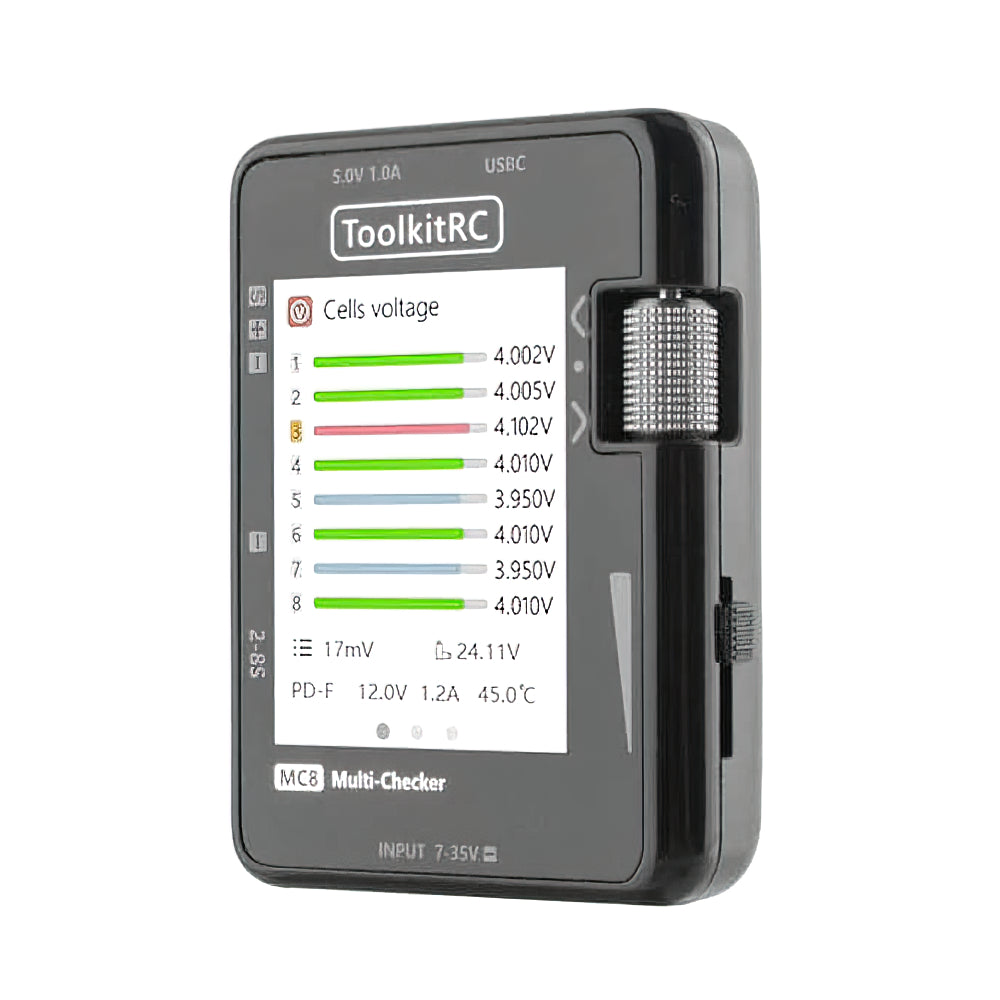

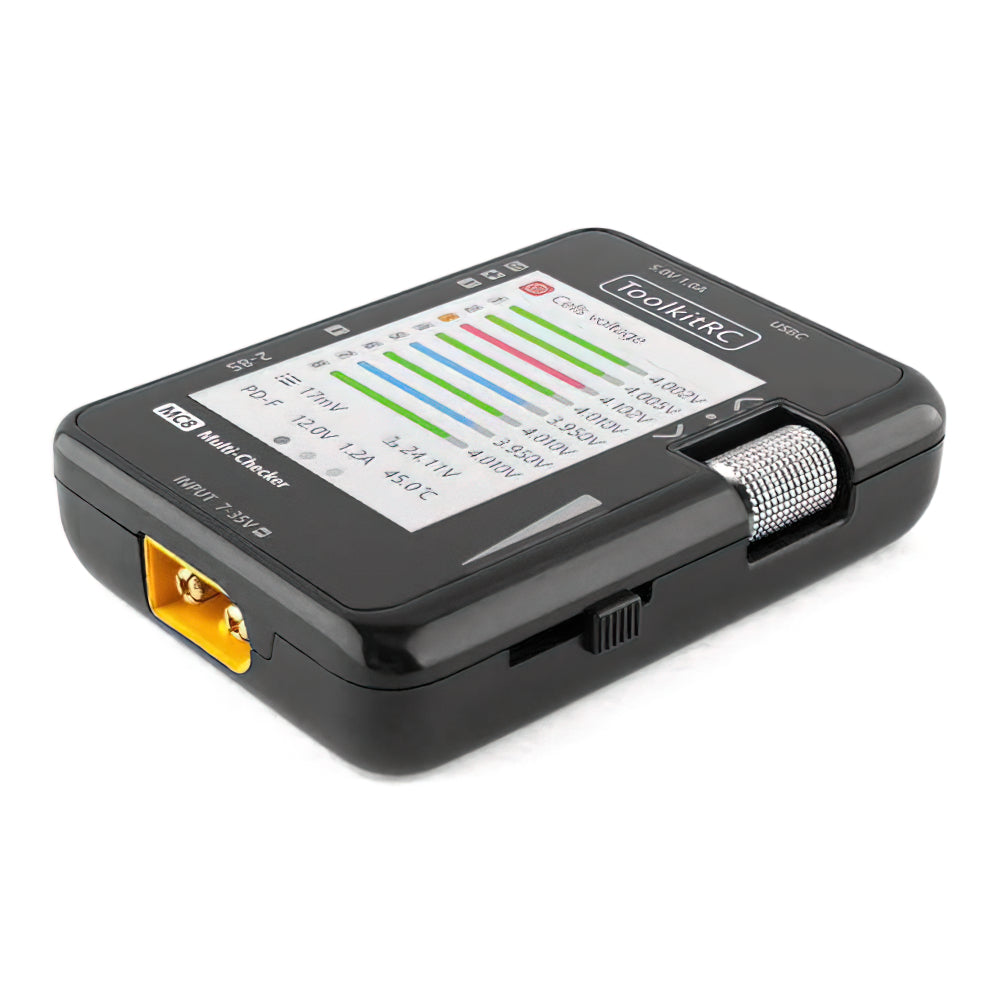

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

The ToolkitRC MC8 Multi-Functional 2-8S Battery Checker is a multi-purpose battery cell checker that allows you to balance battery packs for better performance. This device features PD fast charging, a metal roller for UI control, and an innovative slider output control. With a 32-bit Arm processor and beautiful LCD display, this device is also fully upgradeable.

Features

• Innovative Slider Output Control

• One-Touch Battery Balancer

• PWM/PPM/SBUS Readout

• Metal Roller UI Control

• Battery Status Display

• Large Color Screen

• PD Fast Charging

• PWM Output

Specifications

• Dimensions: 68x50x15mm

• LCD: 2" IPS 320x240

• Weight: 50g

CHECKER

• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

• USB-A output: 5.0V@1.0A firmware upgrade

• USB-C output: 5.0V-12.0V @MAX 20W

• Balance current: MAX 60mA @2-8S

• Balance accuracy: <0.005V @ 4.2V

• Balance input: 0.5V-5.0V Lixx 2-8S

• Main Input port: XT60 7.0-35.0V

• Signal port input: <6.0V

MEASURER

• SBUS: 880-2200us*16CH @20-100Hz

• PPM: 880-2200us*8CH @20-50Hz

• PWM: 880-2200us @20-400Hz

OUTPUT

• SBUS: 880-2200us*16CH @20-100Hz

• PPM: 880-2200us*8CH @20-50Hz

• PWM: 1000-2000us @20-1000Hz

Includes

• 1x ToolkitRC MC8 Multi-Functional 2-8S Battery Checker
