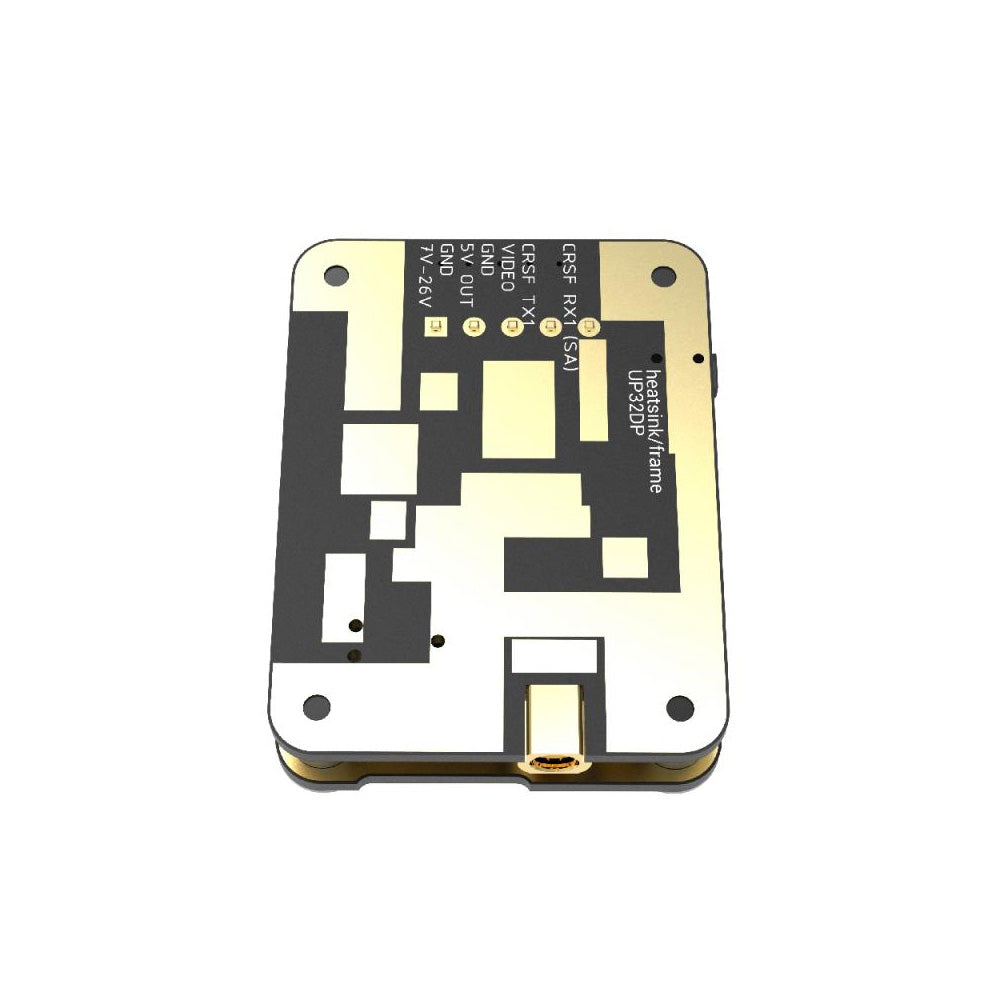

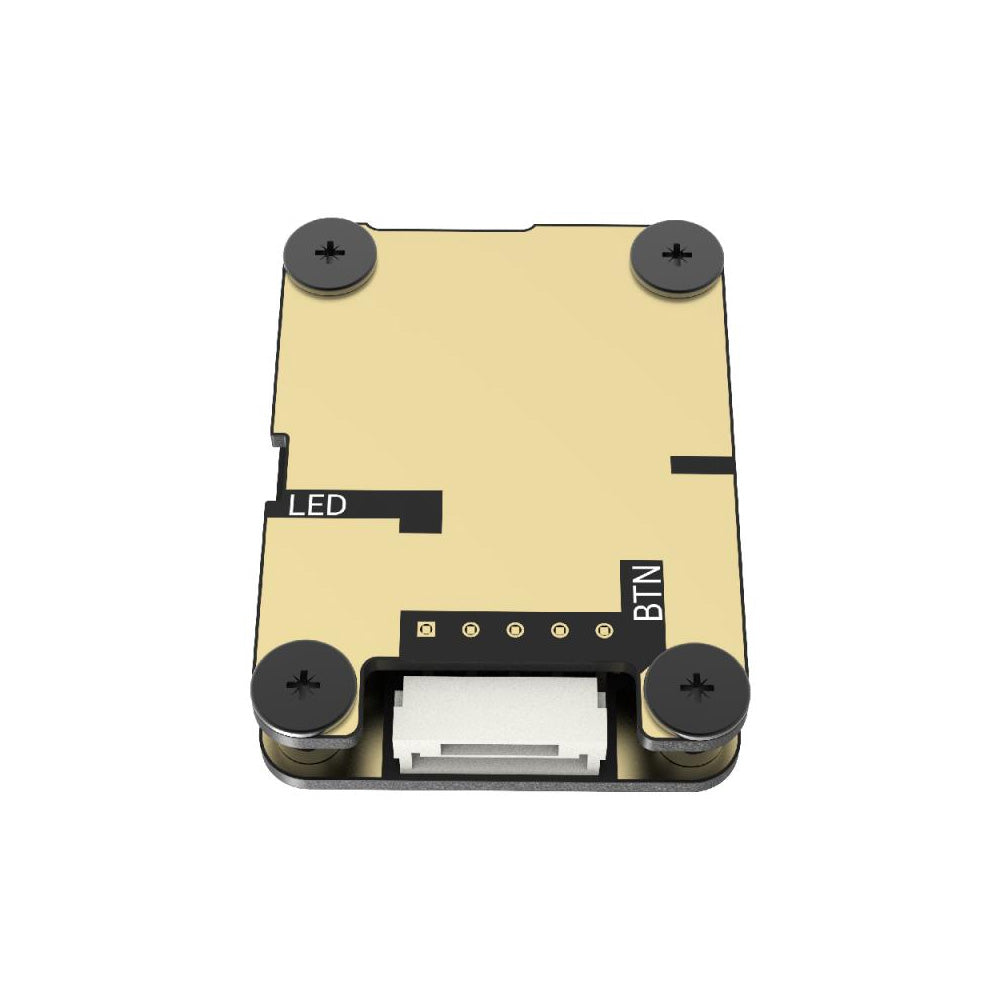

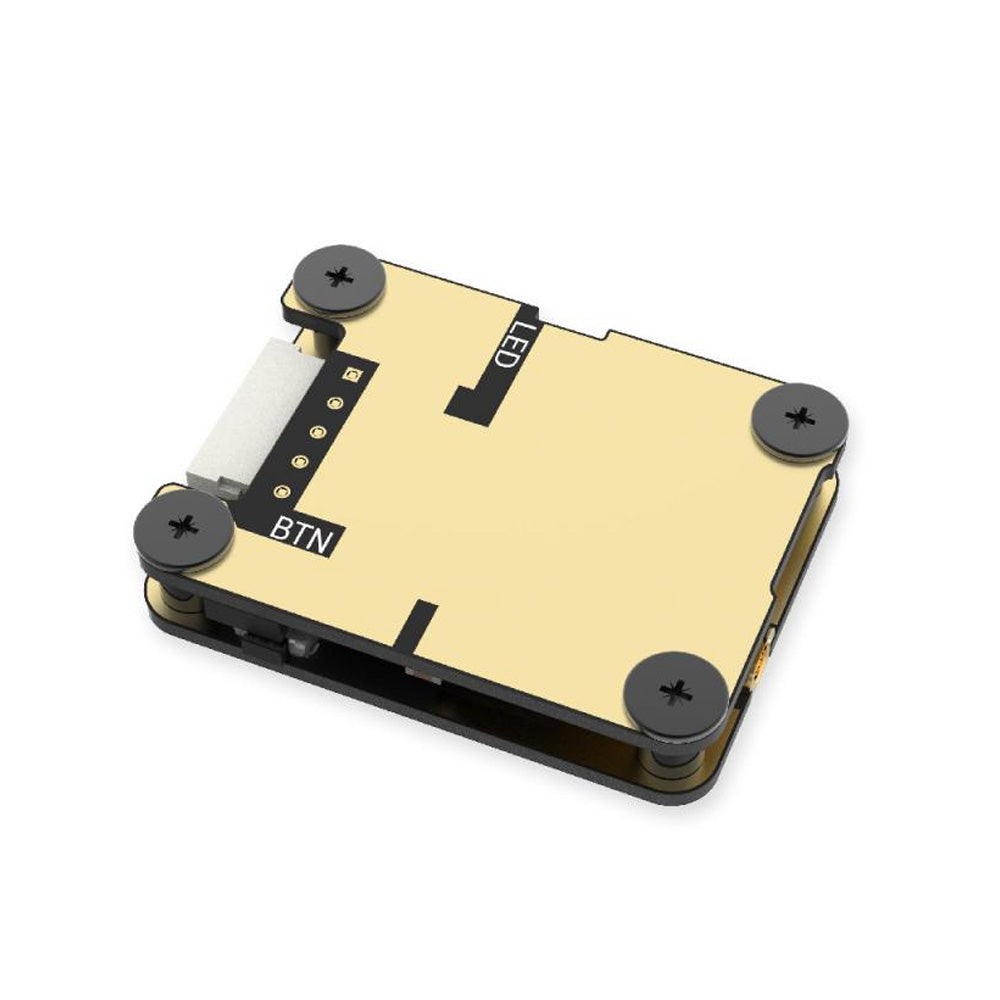

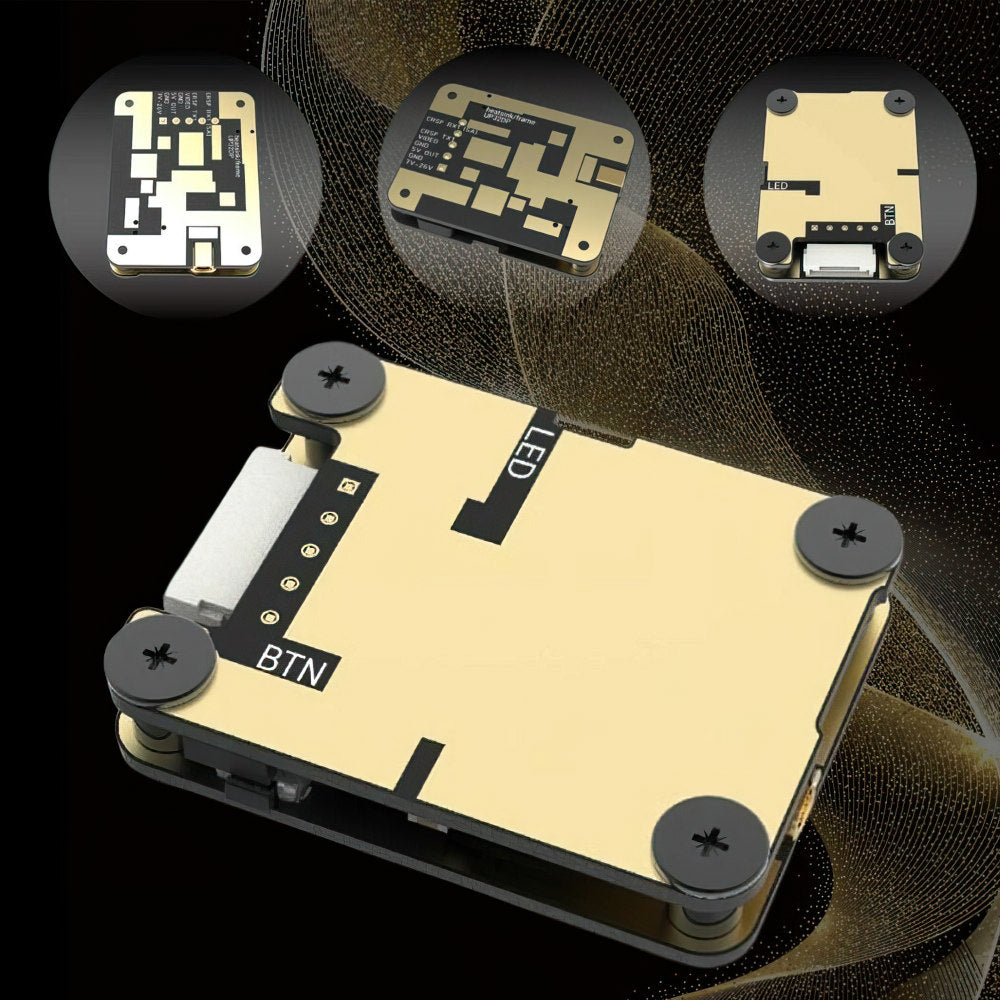

TBS Unify Pro32 DP VTX

The TBS UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. It features improved robustness, decreased size, and reduced power consumption. Enhanced performance and durability are achieved through advanced heat dissipation, which requires no additional heatsink or fan.

• Optimized Heat Dissipation
• Double Noise Filtering
• Optional Accessory
• Lightweight Design
• OSD Configuration
• One-Button Setup
• 2-6S Input Voltage
• MMCX Connector
• Frequency Range
• LUA Support

• Output Power: 14 dBm (25 mW), 20 dBm (100 mW), 26 dBm (400 mW)
• Operating Voltage: 6V - 25V (2 - 6S)
• Video Input Impedance: 75 Ohm
• Dimensions: 37 x 28 x 10 mm
• Antenna Connector: MMCX
• Video Format: NTSC/PAL
• SNR: >63 dBm
• Weight: 8.7 g

• 1x TBS Unify Pro32 DP VTX
